<p><b>SPECIFICATIONS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Max. Punching Diameter</div></td>
<td width="214" class="TableText"><div align="center">13/16"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Max. Punching Thickness</div></td>
<td class="TableText"><div align="center">1/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Max. Output</div></td>
<td class="TableText"><div align="center">17 Tons</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Power Source (Single Phase)</div></td>
<td class="TableText"><div align="center">110-120V AC 50/60 Hz</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Rated Power Consumption</div></td>
<td class="TableText"><div align="center">670 W</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Rated Current</div></td>
<td class="TableText"><div align="center">7.0 A</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Max. Punching Diameter</div></td>
<td class="TableText"><div align="center">13/16"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Max. Punching Thickness</div></td>
<td class="TableText"><div align="center">1/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Max. Throat Depth</div></td>
<td class="TableText"><div align="center">2-3/16"</div></td>
</tr>
<tr>
<td width="199" bgcolor="#cccccc" class="TableText"><div align="center">Punching Time</div></td>
<td width="214" class="TableText"><div align="center">2 sec.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Weight</div></td>
<td class="TableText"> <div align="center">31 lbs.</div></td>
</tr>
</tbody>
</table>
<p><b><br></b><b>SELECTION OF DIES:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td rowspan="2" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>Application</b></span></div></td>
<td rowspan="2" bgcolor="#333333" class="TableText"><div align="center"><span style="color: rgb(255, 255, 255);"><b><span class="Title_white_bold">Type of Die</span></b></span></div></td>
<td colspan="2" bgcolor="#333333" class="TableText"><div align="center"><span style="color: rgb(255, 255, 255);"><b><span class="Title_white_bold">Plate Thickness</span></b></span></div></td>
</tr>
<tr>
<td bgcolor="#333333" class="TableText"><div align="center"><span style="color: rgb(255, 255, 255);"><b><span class="Title_white_bold">Mild Steel</span></b></span></div></td>
<td bgcolor="#333333" class="TableText"><div align="center"><span style="color: rgb(255, 255, 255);"><b><span class="Title_white_bold">Stainless Steel</span></b></span></div></td>
</tr>
<tr>
<td bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(240, 240, 240);"><b>For Thin Sheets</b></span></div></td>
<td bgcolor="#cccccc" class="TableText"><div align="center">A</div></td>
<td bgcolor="#FFFFFF" class="TableText"><div align="center">1/16" - 1/8"</div></td>
<td class="TableText"><div align="center">Max. 1/8"</div></td>
</tr>
<tr>
<td width="199" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>For Thick Sheets</b></span></div></td>
<td width="199" bgcolor="#cccccc" class="TableText"><div align="center">B</div></td>
<td width="199" bgcolor="#FFFFFF" class="TableText"><div align="center">5/32" - 1/4"</div></td>
<td width="214" class="TableText"><div align="center">Max. 5/32"</div></td>
</tr>
<tr>
<td bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>For Channel Iron</b></span></div></td>
<td bgcolor="#cccccc" class="TableText"><div align="center">C</div></td>
<td bgcolor="#FFFFFF" class="TableText"><div align="center">9/32" - 5/16"</div></td>
<td class="TableText"><div align="center">N.A.</div></td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES:</b></p>

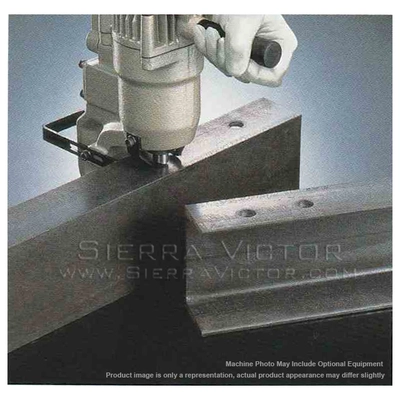

<ul> <li>Self-contained hydraulic punch shows its power in making round or elongated holes in flat bar, angle bar or channel iron.</li> </ul>
<p><strong>ACCESSORIES INCLUDED:</strong></p>
<ul> <li>3mm / 4mm / 5mm Allen Wrench</li> <li>Stand Assembly</li> <li>EL Punch 18 / EL Die 18B / EL Die 18A Mounted on Machine</li><li>Spanner 10 x 12</li></ul>
<p><b>
OPTIONAL ITEMS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText1">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white1">
<td width="115" class="optional_accessories"><div align="center" class="Title_white_bold"><span style="color: rgb(255, 255, 255);"><b>PART #</b></span></div></td>
<td width="323" bgcolor="#333333"><div align="center" class="Title_white_bold"><span style="color: rgb(255, 255, 255);"><b>ITEM</b></span></div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center"><b>TBO00799-0</b></div></td>

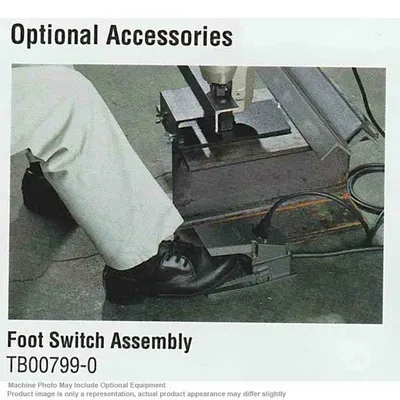

<td><div align="center">Foot Switch Assembly: $299.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">—</div></td>

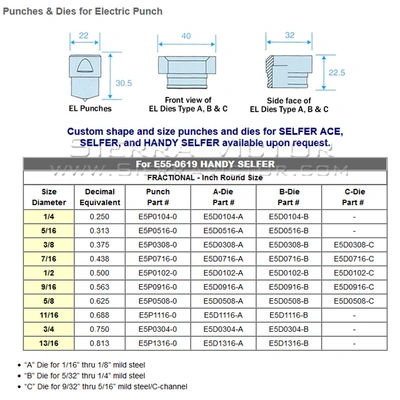

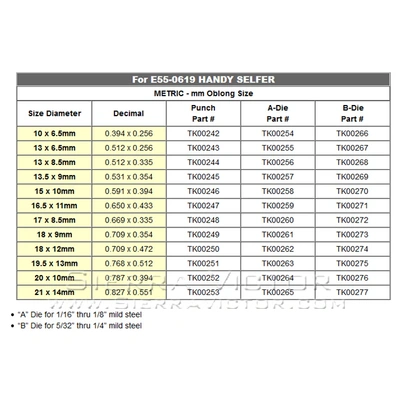

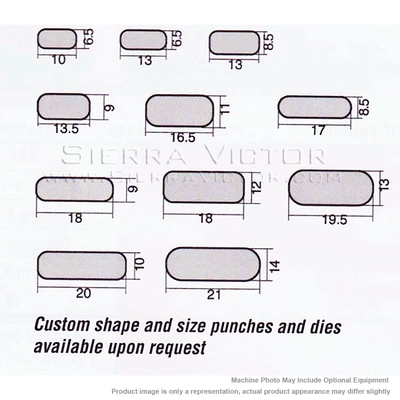

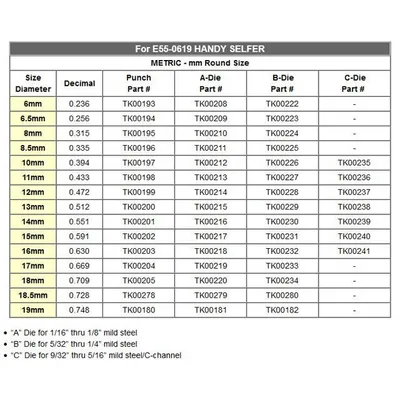

<td><div align="center">Punches and Dies for Handy Selfer - see photos, Call for price</div></td>
</tr>
</tbody>
</table>
