<p><b>SPECIFICATIONS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Power Source (Single Phase)</div></td>
<td colspan="2" class="TableText"><div align="center">115/230V AC (230V available upon request)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Allowable Max. Pressures</div></td>
<td colspan="2" class="TableText"><div align="center">10,000psi (700 kgf/cm2)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Output qt/min</div></td>
<td width="128" class="TableText"><div align="center">50Hz</div></td>
<td width="127" class="TableText"><div align="center">60Hz</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">At No Load</div></td>
<td class="TableText"><div align="center">1.28</div></td>
<td class="TableText"><div align="center">1.53</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">At 10,000 psi</div></td>
<td class="TableText"><div align="center">0.59</div></td>
<td class="TableText"><div align="center">0.70</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Motor</div></td>
<td colspan="2" class="TableText"><div align="center">0.4kW 4P</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Reservoir Capacity</div></td>
<td colspan="2" class="TableText"><div align="center">4.26 qt</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Discharge Port</div></td>
<td colspan="2" class="TableText"><div align="center">Rc 3/8</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Electro-Magnetic Valve</div></td>
<td colspan="2" class="TableText"><div align="center">4 way 3 position valve</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Weight</div></td>
<td colspan="2" class="TableText"><div align="center">72 lbs. (32.5kg)</div></td>
</tr>
</tbody>
</table>
<p><b><br></b><b>FEATURES:</b></p>

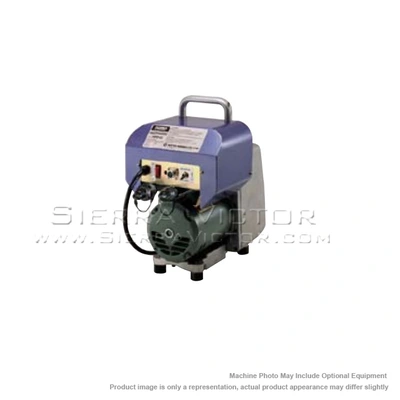

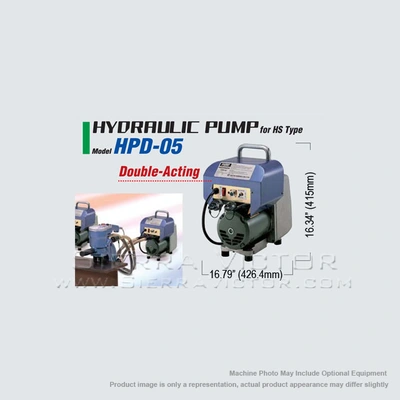

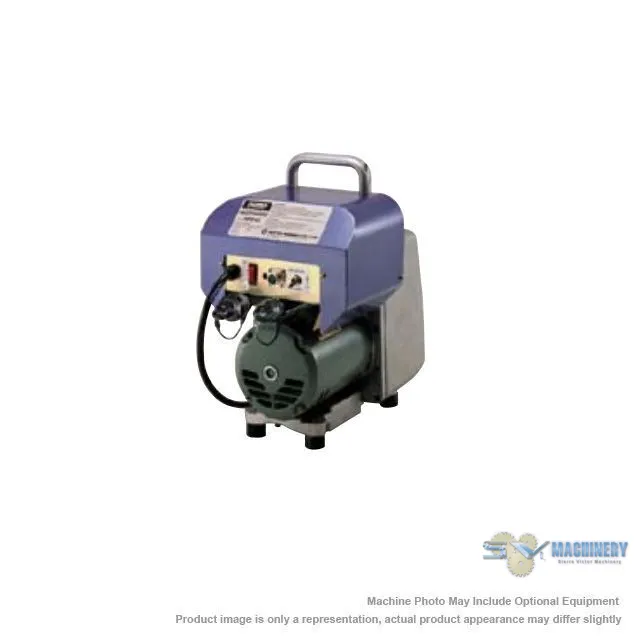

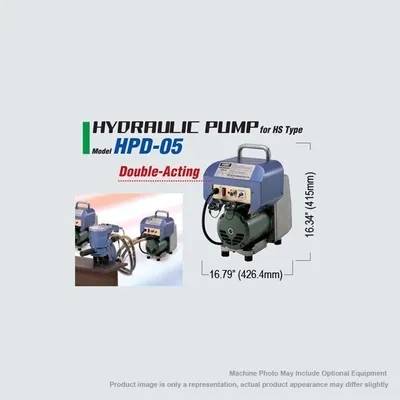

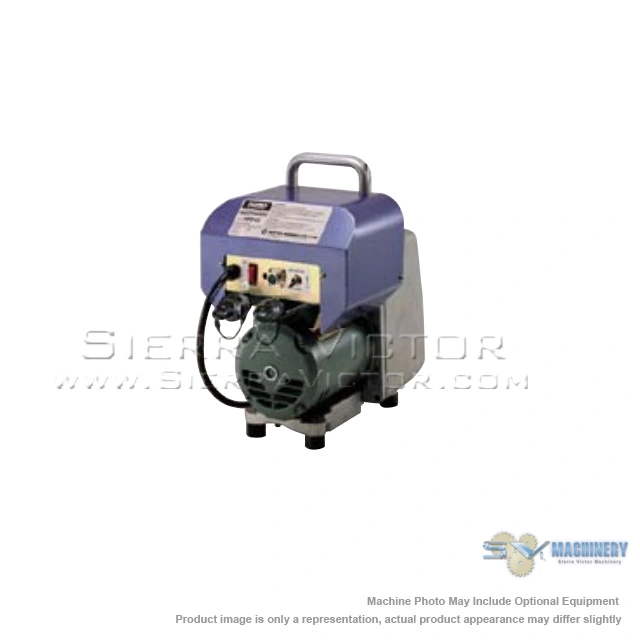

<ul> <li>Hydraulic Power Unit for HS Series Punchers: 115V; 10,000 PSI operating pressure</li> <li>Portable Double-Acting Hydraulic Pump (to be used with the HS Series Punches)</li> </ul>
