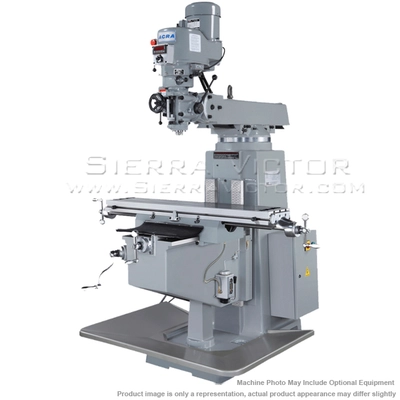

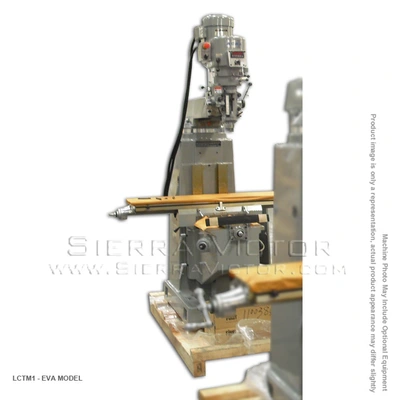

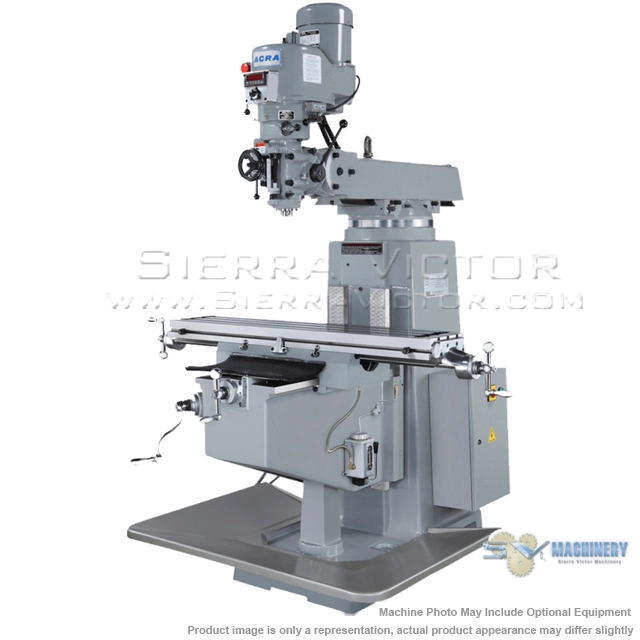

ACRA LCTM1 10x54 in. Vertical Variable Speed Milling Machine

<p>ACRA 10" x 54" LCTM1 Vertical Variable Speed Milling Machine</p><ul><li>Made in Taiwan</li><li><strong>Acra’s LCTM-1 Vertical Variable Speed Milling Machine</strong> features the following:</li><li><strong>Spindle Unit:</strong><br>• R8, NST30, NST40 are available.<br>• Made from one piece of Ni-Cr alloy steel.<br>• Supported by two precision angular contact and one ball bearing to ensure rigidity.<br>• Inner taper is hardened and precision grounded.</li><li><strong>Milling Head Gear and Quill:</strong><br>• Harden and grounded spindle, quiet and smooth, free of noise and vibration.<br>• Uses dynamically balanced pulleys and precision bearings.<br>• 3HP Spindle Motor.<br>• Spindles back gear runs in grease packed housing to ensure less fatigue, strength and low noise.<br>• Chrome coated and mirror grounded finished quill.</li><li><strong>Rigid Head Tilting System:</strong><br>• The Heaf knuckle is our design patent. This structure greatly increase the stability and rigidity, when the vertical head is titled at any angle, front and back to perform complicated work. There are 6 T-bolts to lock the knuckle to the Ram instead of 3 bolts.</li><li><strong>Adjustable Backlash Nut:</strong><br>• Unique double nuts and backlash adjusting design, contact face enlarged ensuring accuracy over term and easy for backlash adjustment.</li></ul><p><strong>STANDARD EQUIPMENT:</strong></p><ul><li>Quill Heat Treated, Hardened & Chromed</li><li>Hardened Ground Way</li><li>One Shot Lubrication</li><li>Meehanite Casting</li></ul><div>ITEM: 10" x 54" Vertical Variable Speed Milling Machine</div><div>MANUFACTURER: ACRA</div><div>MODEL: LCTM1</div><div><a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: ACRA LCTM1%0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br> CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY</span></a></div>
