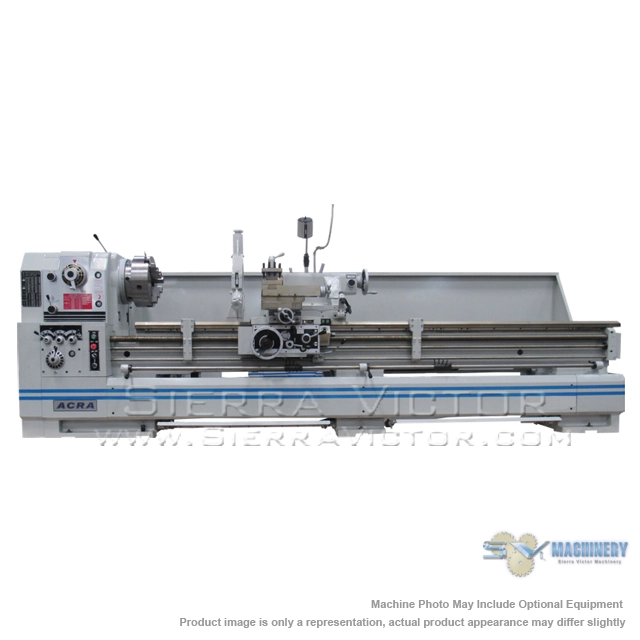

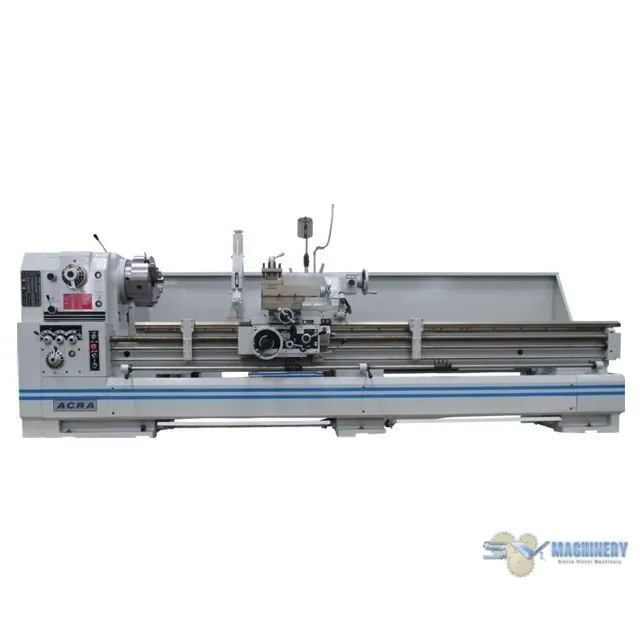

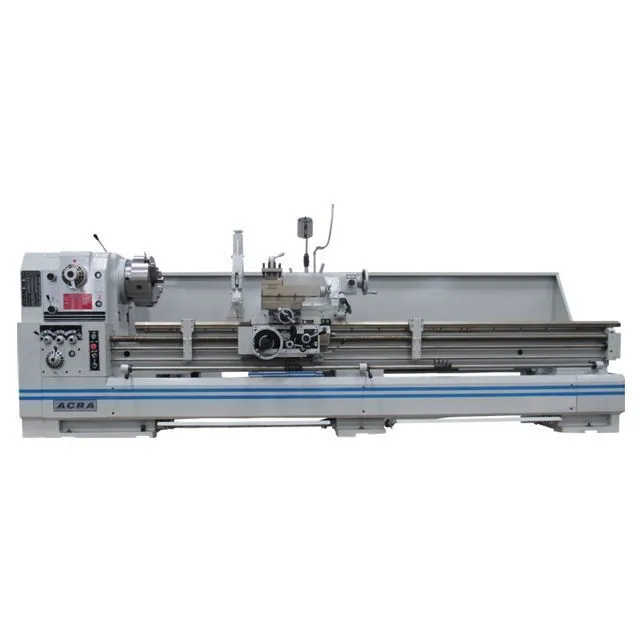

ACRA ACH 26 in. Precision Gap Bed Engine Lathe

<p><span id="selection-marker-1" class="redactor-selection-marker"></span>ACRA 26" Precision Gap Bed Engine Lathes 2690ACH, 26120ACH, 26160ACH</p><ul><li>Made in Taiwan<span id="selection-marker-2" class="redactor-selection-marker"></span></li><li><strong>Bed:</strong><br>• MEEHANTIE CAST IRON, VIBRATION STRESSES RELIEVED.<br>• INDUCTION HARDENED (HS70 DEGREE) AND PRECISION GROUND.<br>• PRECISION HAND SCRAPED REMOVABLE GAP.<br>• FOOT BRAKE</li><li><strong>Universal Gear Box:</strong><br>• OIL BATH LUBRICATION.<br>• HEAT-TREATED GEARS.<br>• INCH/METRIC/MODULE/DIAMETRICAL THREADS.<br>• OUTPUT SHAFT IS DESIGNED WITH SAFETY PIN</li><li><strong>Apron and Saddle:</strong><br>• MANUAL AND AUTOMATIC LUBRICATION SYSTEM-OIL DISTRIBUTOR ADJUSTED TO LUBRICATING BED WAYS AND CROSS SIDE OR BOTH.<br>• OVERLOAD PROTECTION DEVICE.<br>• CROSS SLIDE IS HARDENED AND PRECISION GROUND.<br>• CROSS SLIDE SCREWS ARE HARDENED AND OIL BATHED.<br>• FORWARD-OFF-REVERSE LEVER.<br>• TOP AND SADDLE SLIDE LOCKING SYSTEM.<br>• T-SLOT COMPOUND FOR AMERICA AREA</li><li><strong>Spindle:</strong><br>• SUPPORTED BY 3 PRECISION P-GRADE TAPER ROLLER BEARINGS.<br>• DYNAMICALLY BALANCED, HARDENED AND PRECISION GROUND.<br>• ACH-2200 SERIES-D1-11 SPINDLE NOSE, SPINDLE HOLE 4.09"</li><li><strong>Headstock:</strong><br>• ALL GEARS MADE BY CHROMIUM MOLYBDENUM STEEL AND SEGMENTATION TREATED AND PRECISION GROUND.<br>• FORCED LUBRICATION SYSTEM</li><li><strong>Tailstock:</strong><br>• QUILL MADE BY CHROMIUM MOLYBDENUM STEEL WITH SEGMENTATION AND PRECISION GROUND.<br>• ACH-2200 SERIES-DIAMETER TAIL STOCK SPINDLE 2.935" AND SPINDLE TRAVEL 7"<br>• TWO SPEED WITH 1:1 AND 1/4:1 CHANGE FEEDS.</li></ul><p><strong>STANDARD EQUIPMENT: </strong></p><ul><li>15" 3-Jaw Chuck</li><li>Steady Rest (1-3/5" ~ 10")</li><li>Coolant System</li><li>Halogen Light</li><li>4 Way Tool Holder</li><li>Full Length Splash Guard</li><li>Removable Gap</li></ul><div>ITEM: 26" x 90-160" Precision Gap Bed Engine Lathes</div><div>MANUFACTURER: ACRA</div><div>MODEL: 2690ACH, 26120ACH, 26160ACH</div><div><a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: ACRA 26000ACH - ENTER MODEL# %0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br> CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY</span></a></div>
