<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td class="Title_white_bold" width="257" bgcolor="#333333">

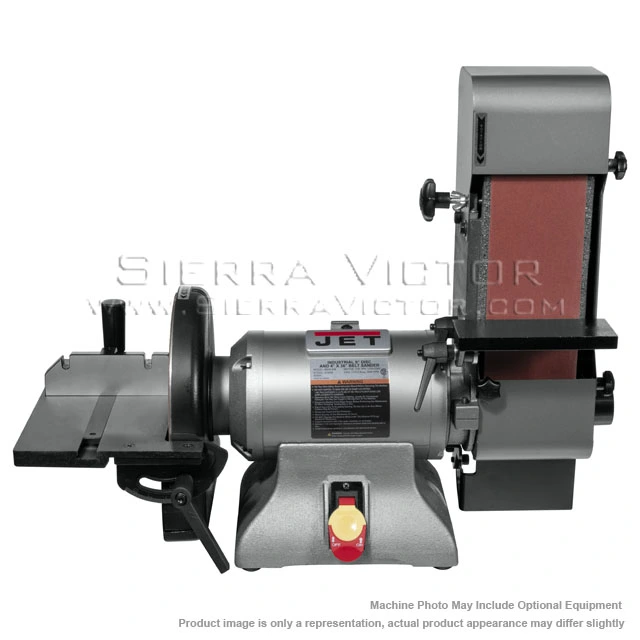

<div align="center"><strong><span style="color: rgb(255, 255, 255);">IBDG-436</span></strong>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Part#
</div>
</td>
<td>
<div align="center">JT9-578634
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td>
<div align="center">1 HP
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Prewired
</div>
</td>
<td>
<div align="center">115V
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Amperage Draw @ 115V 1Ph
</div>
</td>
<td>
<div align="center">11
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Belt Grit
</div>
</td>
<td>
<div align="center">80
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Belt Size (W x L) (In.)
</div>
</td>
<td>
<div align="center">4 X 36
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Belt Speed (SFPM)
</div>
</td>
<td>
<div align="center">3,769
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Disc Diameter (In.)
</div>
</td>
<td>
<div align="center">9
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Disc Speed (RPM)
</div>
</td>
<td>
<div align="center">3,600
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Dust Port Size (In.)
</div>
</td>
<td>
<div align="center">2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Overall Dimensions Belt Vertical <br>
(L x W x H / in.)
</div>
</td>
<td>
<div align="center">25-3/8 x 21-3/4 x 20-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Overall Dimensions Belt Horizontal <br>
(L x W x H / in.)
</div>
</td>
<td>
<div align="center">25-3/4 x 21-3/4 x 11-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Net Weight (lbs.)
</div>
</td>
<td>
<div align="center">73
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Gross Weight (lbs.)
</div>
</td>
<td>
<div align="center">92
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>
<li>VERSATILITY: A range of of belt sizes and speed configurations as well as multiple belt and work table positions allows for an almost infinite number of application and work options.</li>
<li>DURABILITY: Heavy Cast iron bases, steel motor housings, cast iron work rests and all steel shrouds will lead to years of dependable use.</li>
<li>SAFETY: Complete guarding of all pinch points and non-working surface contact points keeps operator safe while allowing maximum productivity.</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td width="67">
<div>
<div align="center"><span style="color: #ffffff;"><strong>STOCK #</strong></span>
</div>
</div>
</td>
<td width="447">
<div>
<div align="center"><span style="color: #ffffff;"><strong>INCLUDES</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-414845
</div>
</td>
<td>
<div align="center">2" HIGH TEMP 2 TO 1 HOSE KIT
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-414800
</div>
</td>
<td>
<div align="center">JDCS-505, METAL DUST COLLECTOR STAND 115V
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-578172
</div>
</td>
<td>
<div align="center">IBG-STAND (8", 10" AND 12")
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-578173
</div>
</td>
<td>
<div align="center">DBG-STAND (8", 10", AND 12")
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-578100
</div>
</td>
<td>
<div align="center">DBG-LAMP, 3W LED LAMP FOR IBG-8", 10", 12" GRINDERS
</div>
</td>
</tr>
</tbody>
</table>
