<p><b>SPECIFICATIONS:
</b></p>
<table width="520" cellspacing="0" cellpadding="0" border="1" class="TableText">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>STOCK#</b></span></div></td>
<td width="257" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>1792014AK</b></span></div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">MODEL</div></td>
<td><div align="center">PM2014</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc"><div align="center">Motor (TEFC)</div></td>
<td><div align="center">1 HP/230V/3ph</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Input Power Requirements</div></td>
<td><div align="center">115V</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Swing Over Bed</div></td>
<td><div align="center">14-1/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Swing Over Tool Rest Base</div></td>
<td><div align="center">10-3/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Working Distance Between Centers</div></td>
<td><div align="center">19-1/4" (w/ stop bolt)<br>
20-1/4" (w/o stop bolt)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Outboard Turning Diameter Max.</div></td>
<td><div align="center">20-1/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Index Positions</div></td>
<td><div align="center">24, positive locking</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Bed Length</div></td>
<td><div align="center">20"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Thread Size (in. x TPI)</div></td>
<td><div align="center">1/4 x 8</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Hole Through Spindle</div></td>
<td><div align="center">3/8"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Taper</div></td>
<td><div align="center">MT2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Speeds (RPM)</div></td>
<td><div align="center">15-3,600 / 15-900 / 30-1,800 / 60-3,600</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Hole Through Tailstock</div></td>
<td><div align="center">3/8"</div></td>
</tr>
<tr>

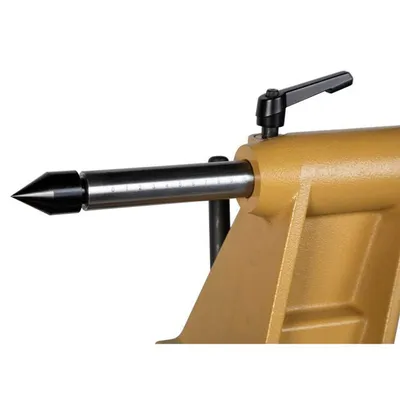

<td bgcolor="#cccccc"><div align="center">Tailstock Quill Taper</div></td>
<td><div align="center">MT2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Tail Stock Quill Travel</div></td>
<td><div align="center">ACME lead screw, 4-1/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Centerline of Spindle to Floor</div></td>
<td><div align="center">34" to 46"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Overall Dimensions (L x W x H / in.)</div></td>
<td><div align="center">52 x 24 x 48 (Highest Position)<br>
52 x 24 x 38 (Lowest Position)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Net Weight</div></td>
<td><div align="center">238 lbs.</div></td>
</tr>
</tbody>
</table>
<p><b><br></b></p><p><b>FEATURES:</b></p>

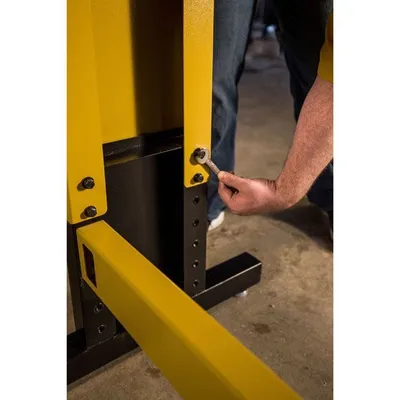

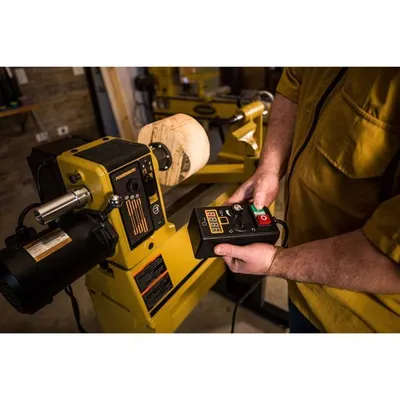

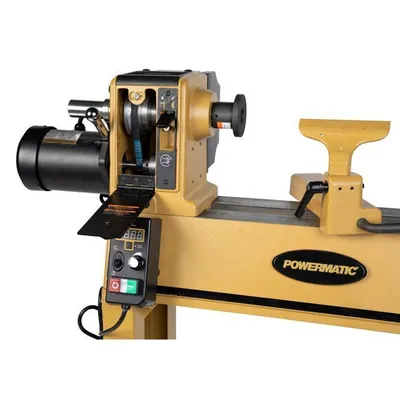

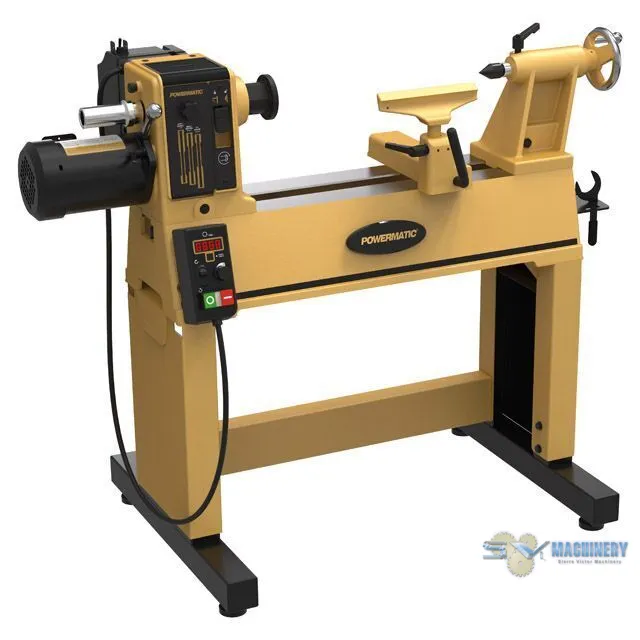

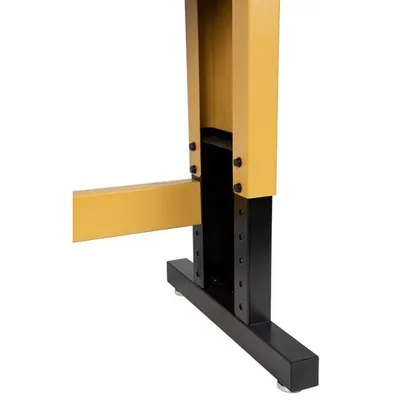

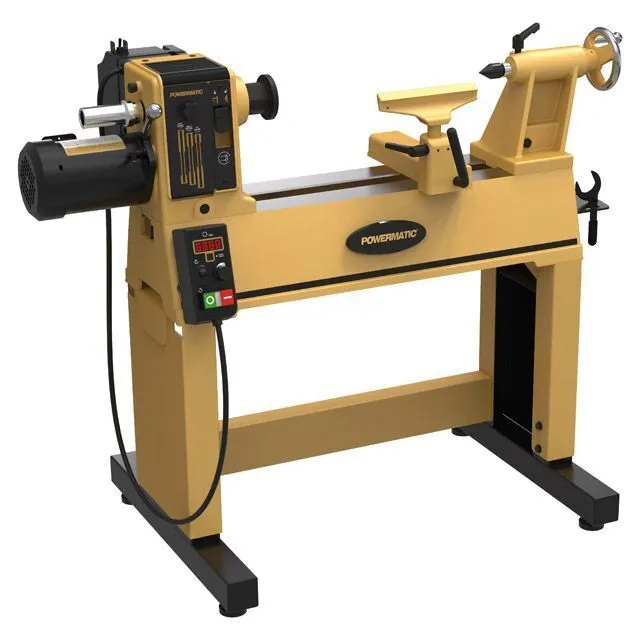

<ul><li>For nearly one hundred years, Powermatic has been dedicated to woodworkers. As a market leader in woodturning, Powermatic is proud to offer the accessible PM2014 lathe.</li><li>Only requiring a 115V single phase power source, the inverter delivers 1HP, 230V, 3PH performance, giving users maximum speed with minimum input.</li><li>The new ergonomic stand adjusts from centerline to floor from 34" to 46" allowing the PM2014 to be accessible to users of a range of heights.</li><li>Digital indexing and spindle speed readout are clearly visible on the magnetic repositionable control box.</li><li>With a capacity of 14" swing over bed and 20" between centers which can be increased with the optional 13" bed extension.</li><li>Premium sliding headstock feature allows greater clearance when positioned at the end of the bed for outboard turning.</li><li>Robust cast iron bed reduces vibration when turning larger and more precise pieces.</li></ul>
