<p><b>SPECIFICATIONS:</b></p>
<table border="1" cellspacing="0" cellpadding="0" width="520">
<tbody style="text-align: center;">
<tr>
<td class="Title_white_bold" valign="middle" bgcolor="#333333">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td class="Title_white_bold" valign="middle" bgcolor="#333333">
<div>
</div>
</td>
<td class="Title_white_bold" width="183" valign="middle" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>5160SGT</strong></span>
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="Title_white_bold" rowspan="5" valign="middle" bgcolor="#333333">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>CAPACITY</strong></span>
</div>
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Swing Over Bed:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">51.57"
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Swing Over Cross Slide:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">39.37"
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Swing In Gap:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">72.83"
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Distance Between Centers
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">60"
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Bed Width
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">26"
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="Title_white_bold" rowspan="4" valign="middle" bgcolor="#333333">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>HEADSTOCK</strong></span>
</div>
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Spindle Nose:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">A2-11
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Spindle Bore:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">6.02"
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Taper of Spindle:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">MT NO.6
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Spindle Speeds – Range:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">3~300 RPM
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="Title_white_bold" rowspan="3" valign="middle" bgcolor="#333333">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>CARRIAGE</strong></span>
</div>
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Cross Slide Travel:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">25"
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Compound Slide Travel:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">16-1/2"
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Rapid Travel Speed to Carriage:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">807" /minute
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="Title_white_bold" rowspan="6" width="109" valign="middle" bgcolor="#333333">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>THREAD & FEEDS</strong></span>
</div>
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Inch Threads:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">1/4 ~ 30 TPI
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Metric Threads:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">1 ~ 120 mm
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Module Threads:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">0.25 ~ 30 mm
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Diametrical Threads:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">1 ~ 120 D.P.
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Longitudinal Feeds:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">0.004" ~ 0.40" /rev
</div>
</td>
</tr>
<tr class="TableText_bold">
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Cross Feeds:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">0.002" ~ 0.20" /rev
</div>
</td>
</tr>
<tr class="TableText" bgcolor="#CCCCCC">
<td rowspan="3" class="Title_white_bold" valign="middle" bgcolor="#333333">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>TAILSTOCK</strong></span>
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Quill Diameter:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">4-7/8"
</div>
</td>
</tr>
<tr class="TableText" bgcolor="#CCCCCC">
<td class="TableText" valign="middle">
<div align="center">Quill Travel:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">13-3/8"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div align="center">Quill Taper:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">MT NO.6
</div>
</td>
</tr>
<tr class="TableText" bgcolor="#CCCCCC">
<td rowspan="2" class="Title_white_bold" valign="middle" bgcolor="#333333">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>POWER</strong></span>
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Spindle Drive Motor:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">30 HP x 4P
</div>
</td>
</tr>
<tr class="TableText" bgcolor="#CCCCCC">
<td class="TableText" valign="middle">
<div align="center">Voltage:
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">230/460V AC/3PH
</div>
</td>
</tr>
<tr>
<td rowspan="2" class="Title_white_bold" valign="middle" bgcolor="#333333">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MEASUREMENT</strong></span>
</div>
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#CCCCCC">
<div>
<div align="center">Weight
</div>
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">18,500 lbs.
</div>
</td>
</tr>
<tr class="TableText" bgcolor="#CCCCCC">
<td class="TableText" width="220" valign="middle">
<div>
<div align="center">Dimensions
</div>
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF">
<div align="center">160" x 80" x 80"
</div>
</td>
</tr>
</tbody>
</table>
<p><b><br></b><b>FEATURES:</b></p>

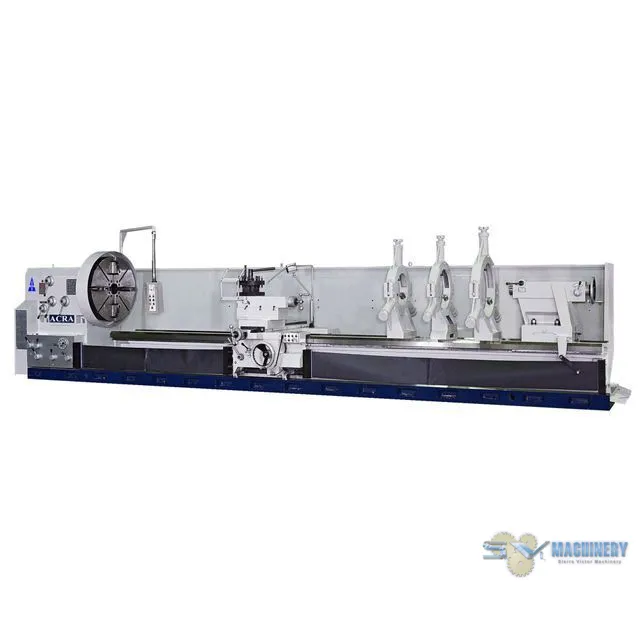

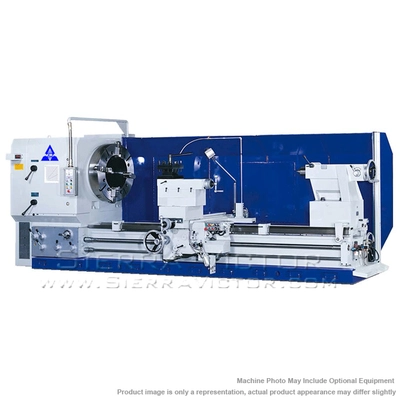

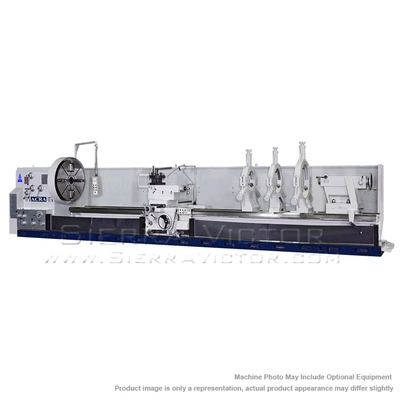

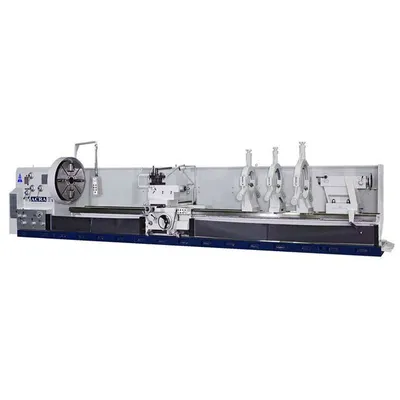

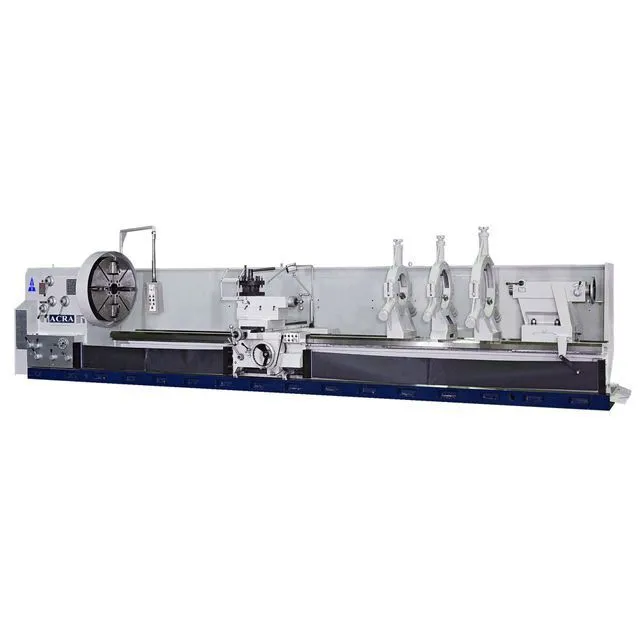

<ul><li>Made in Taiwan - High Quality!</li><li><strong>Acra’s Precision Gap Bed Heavy Duty Engine Lathes</strong> are made in Taiwan and features the following:</li><li><strong>Headstock:</strong><br>• The spindle is supported by high precision bearings suitable for both heavy and precision cutting.<br>• The speeds of spindle have 12 steps and designed on theoretical base. All gears and shafts are made of Ni-Cr-Mo steel and carbonize and ground.<br>• Control of main drive through electromagnetic brake, and automatic forced lubrication.<br>• Spindle Bore size selections- 153mm (6”), 230mm (9”), 255mm (10”), 310mm (12”), 355mm (14”), 405mm (16”), & 530mm (21”).</li><li><strong>Gearbox:</strong><br>• The Gear Box is entirely enclosed construction and provide a range of feedings or thread cuttings (inch, metric, module pitch and diametrical pitch).<br>• Inch and Metric threading without changing gears.<br>• Oil both lubrication and built in safety clutch safeguards the continuous and proper operation of the universal gear box.</li><li><strong>Carriage and Apron:</strong><br>• The Compound Rest can be fixed on the cross-slide anywhere, convenient for cutting work application.<br>• The Apron gives automatic lubrication and locked-safety device protects threads and feeding.<br>• Rapid traverse drive for longitudinal-cross feeding and forward & reverse feed operates very light and convenient.</li><li><strong>Taper Attachment:</strong><br>• The Taper Attachment is designed to easily operate and rapidly cut taper in high accuracy; the device can produce ± 10 angles.<br>• Electric cable in steel cover to protect wire from chips and prevent trouble with electric wires. </li></ul>
<p><strong>STANDARD EQUIPMENT:</strong></p><ul><li>Halogen Light</li><li>4 Way Tool Holder</li><li>Travel Splash Guard</li><li>4 Way Rapid Travel</li><li>Coolant System</li></ul>
