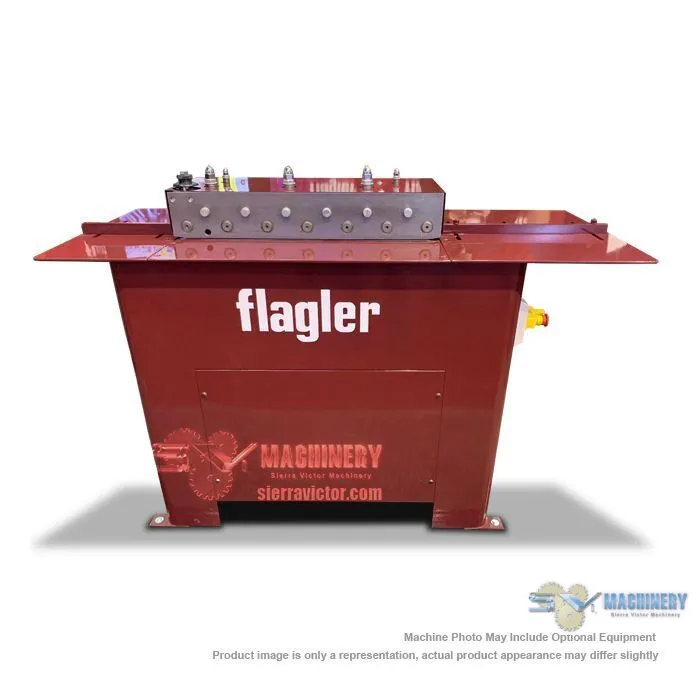

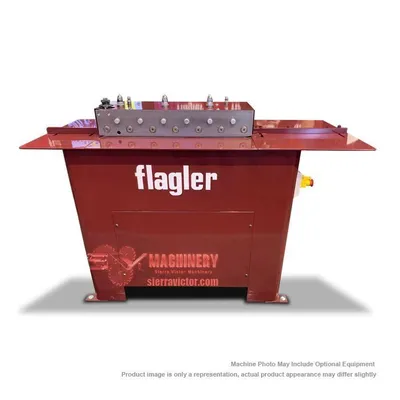

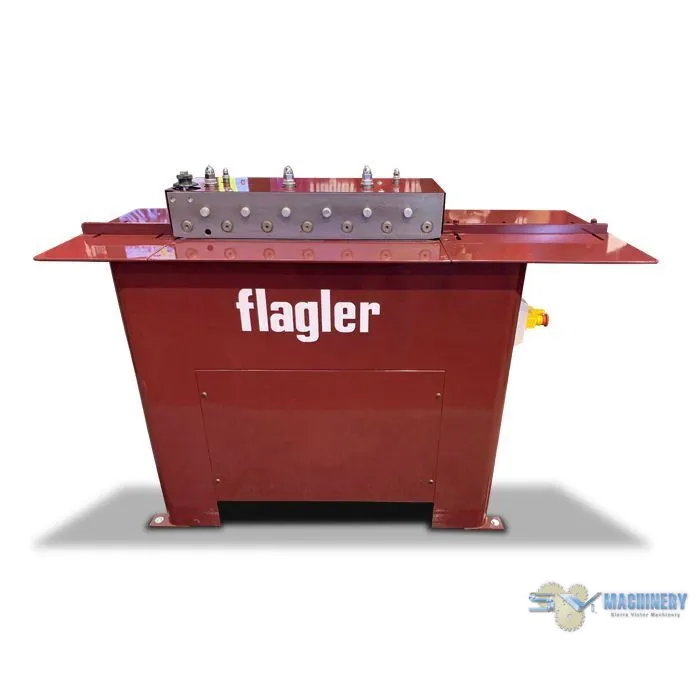

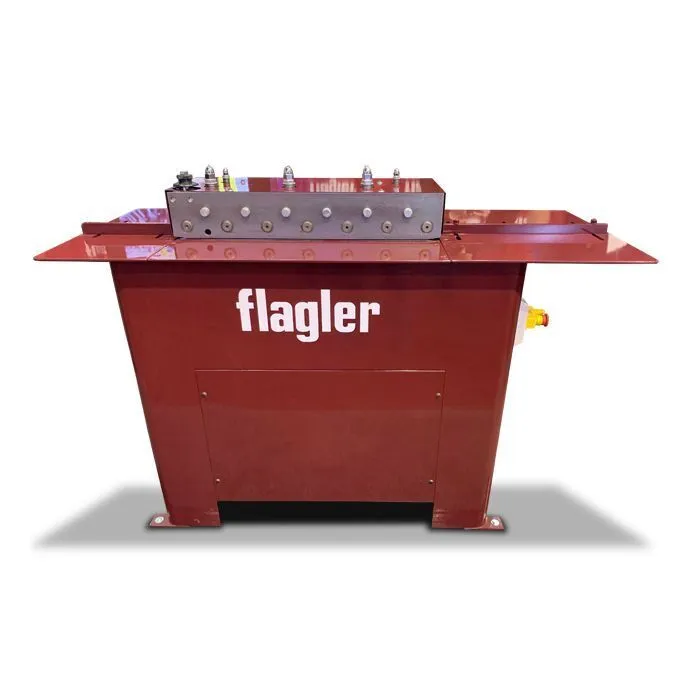

FLAGLER 16 ga. Heavy Duty Pittsburgh Machine

FLAGLER 16 ga. Heavy Duty Pittsburgh Machine

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Pittsburgh/Roll Former Machines
Manufacturer:
FLAGLER
Model:
16 PITTSBURGH
Condition:
Build To Order
Stock #:
17-000
Status:
For Sale

Description

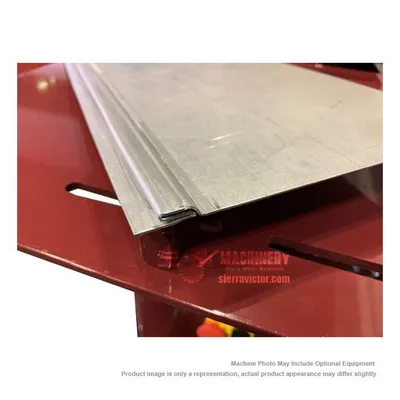

The Flagler Heavy duty pittsburgh machine is designed for heavy gauge Pittsburgh locks. Complete with hardened feed gauge, 3 piece roll/shaft/gear construction, and calibrated dial for 16-20 Ga. mild steel.

Capacity16-20 Ga.16-20 Ga.
Depth of Pocket1/2". Uses approx. 1-1/2" of material1/2". Uses approx. 1-1/2" of material
Extended ShaftsFor 1 set of Aux. RollsFor 1 set of Aux. Rolls
Power3 hp2.2 kW
Electical230v/460v, 3-Phase/60/1800 RPM230v/460v, 3-Phase/60/1800 RPM
Feeding SpeedApproximately 45 feet per minuteApproximately 45 feet per minute
DriveDouble Vee BeltDouble Vee Belt
BaseArc Welded Steel. Heavy top plate.Arc Welded Steel. Heavy top plate.
Dimensions56" L x 24" W x 41" H Feed table height 34-5/8"56" L x 24" W x 41" H Feed table height 34-5/8"
Weight720 lbs.720 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
3/8” Double Seam Rolls (20-26 ga.)
1/2” Double Seam Rolls (16-20 ga.)
1/4" - 7/16” Right Angle Flange Rolls (20-26 ga.)
1/4" - 7/16” Right Angle Flange Rolls (16-20 ga.)
5/8” Tap-In (3 in 1) Rolls (22-28 ga.)
1/2 ” Tap-In (3 in 1) Rolls (16-20 ga.)
1-1/8” Drive Cleat Rolls (20-28 ga.)
1-1/8” Drive Cleat Rolls with Slitter (22-28 ga.)
1/2 ” x 180° Hem Rolls (20-26 ga.)
5/8” End Cap Rolls (22-28 ga.)
1/2” End Cap Rolls (22-28 ga.)
1/2” Male Button Lock Rolls (20-30 ga.)
3/4” Standing Seam Rolls (16-20 ga.)
5/16” Female Pittsburgh Rolls
Short Parts Feeder for Auxiliary Rolls
