<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Chuck Diameter
</div>
</td>
<td class="TableText" width="257">
<div align="center">4"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Tool Slide Travel
</div>
</td>
<td class="TableText">
<div align="center">1.378"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Accuracy
</div>
</td>
<td class="TableText">
<div align="center">.001"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Range Of Metric Threads
</div>
</td>
<td class="TableText">
<div align="center">0.5 - 2.5 mm
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Bore
</div>
</td>
<td class="TableText">
<div align="center">.75"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Range Of Inch Threads
</div>
</td>
<td class="TableText">
<div align="center">12 - 52 T.P.I.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">3/4 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Speed
</div>
</td>
<td class="TableText">
<div align="center">100 - 2500 rpm
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Taper
</div>
</td>
<td class="TableText" width="257">
<div align="center">MT 3
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">

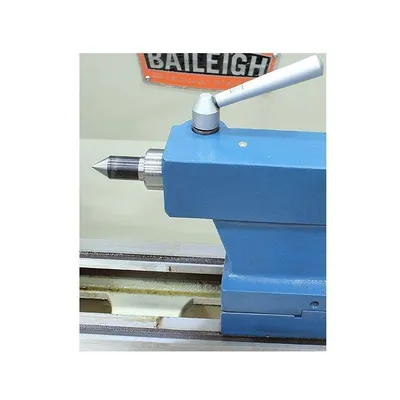

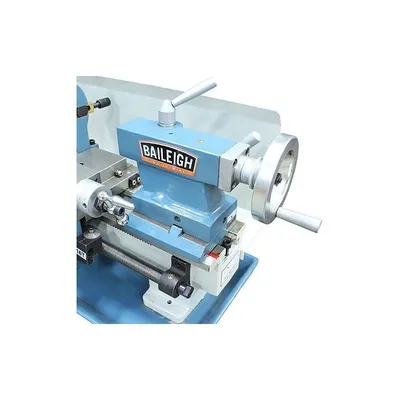

<div align="center">Taper Of Tailstock Quill
</div>
</td>
<td class="TableText" width="257">
<div align="center">MT 2
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Max. Swing Over Bed
</div>
</td>
<td class="TableText">
<div align="center">7"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Cross Slide Travel
</div>
</td>
<td class="TableText">
<div align="center">2.559"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Distance Between Centers
</div>
</td>
<td class="TableText">
<div align="center">13.8"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText">
<div align="center">110V / 60Hz
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText" width="257">
<div align="center">170 lbs.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions
</div>
</td>
<td class="TableText">
<div align="center">48" x 31" x 20"
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul class="TableText">
<li>

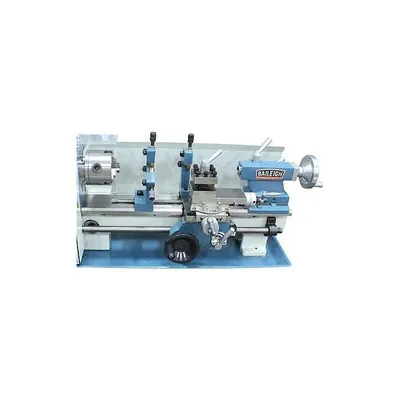

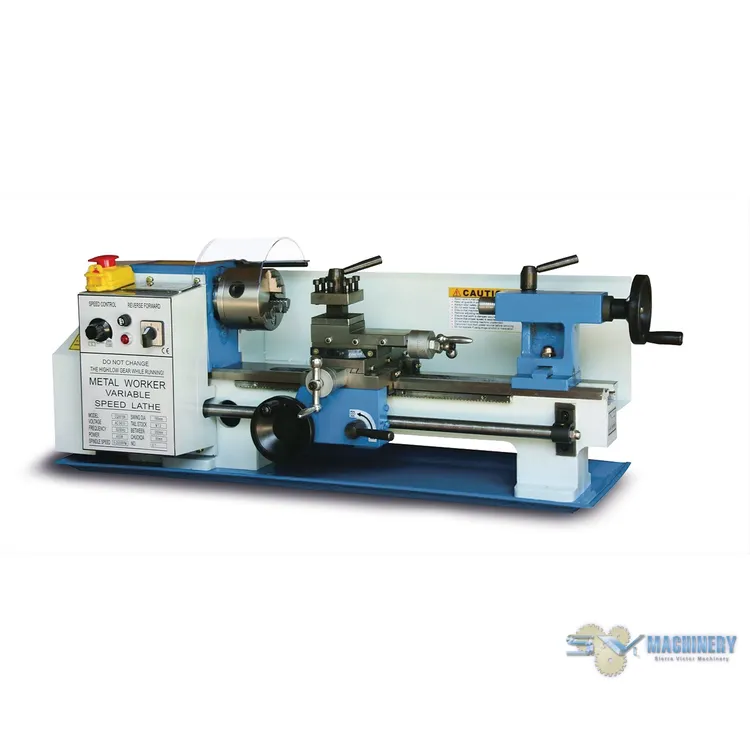

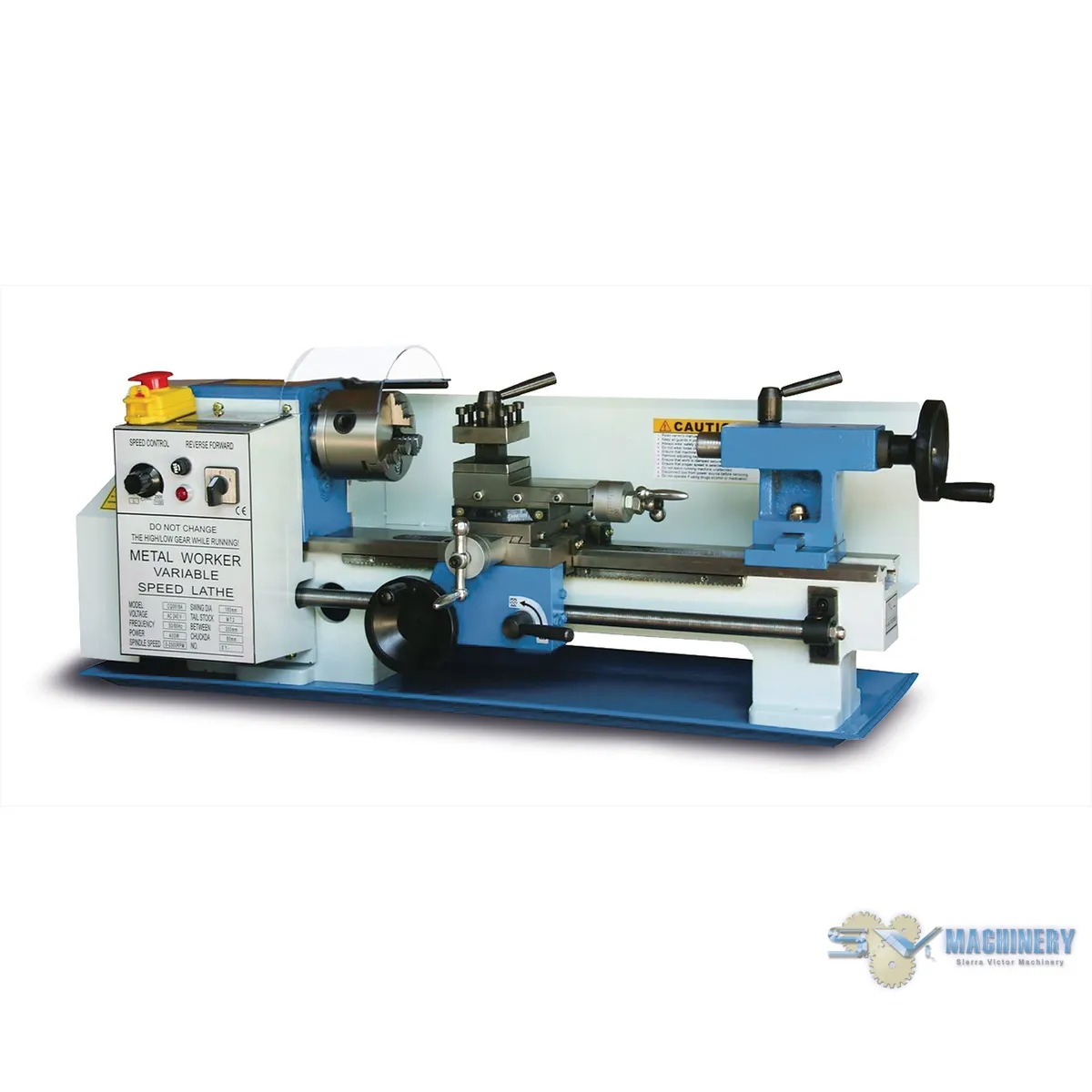

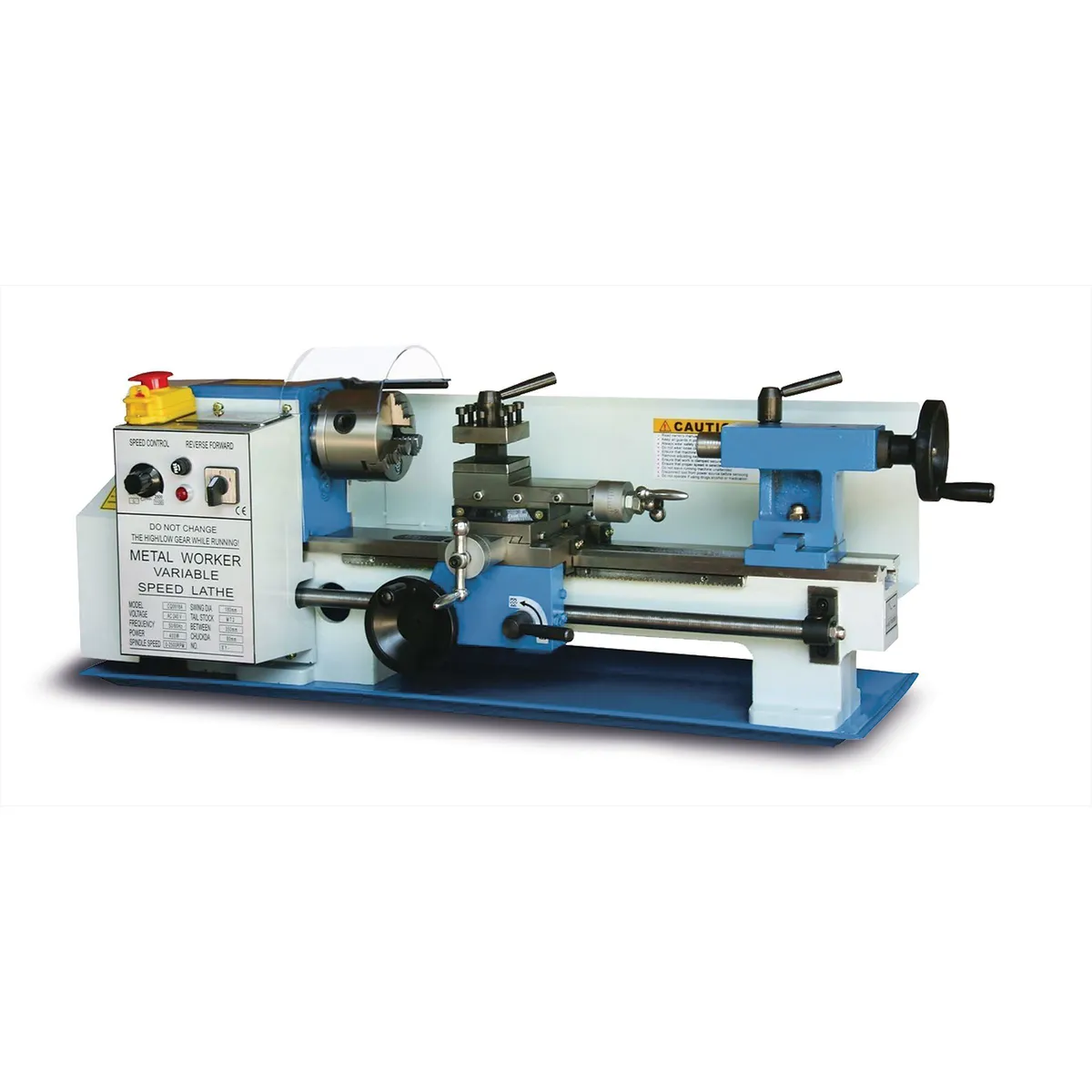

This 14” bed variable-speed benchtop metal lathe is <strong>accurate to .001”</strong>—a level of quality typically associated with larger models. The PL-714VS is a <strong>compact and economical</strong> choice for home garage shops.
</li>
<li>Variable speed from <strong>100 to 2,500 rpm</strong>.</li>

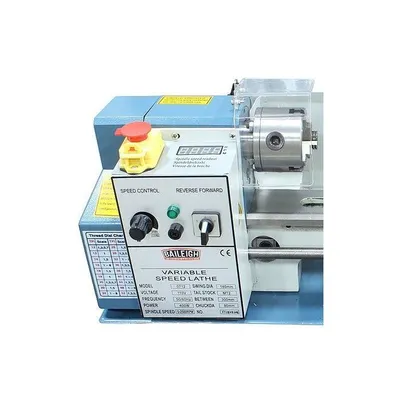

<li><strong>Digital readout</strong> (DRO) shows spindle speed.</li>
<li>Runs on <strong>110 volts</strong>, so it will work anywhere.</li>

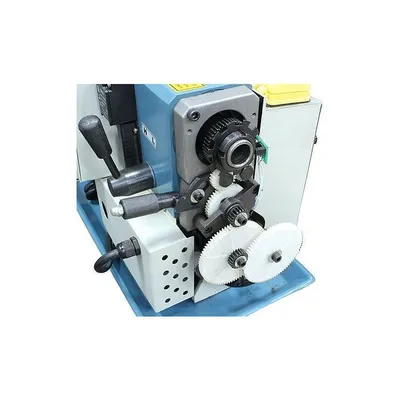

<li>Capable of making metric or standard <strong>threads</strong>.</li>
<li>Includes <strong>3-jaw and 4-jaw chucks</strong> to hold rounded and square materials.</li>

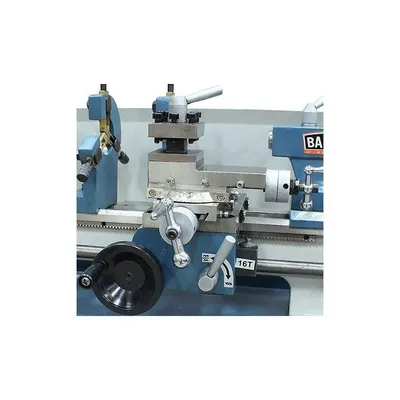

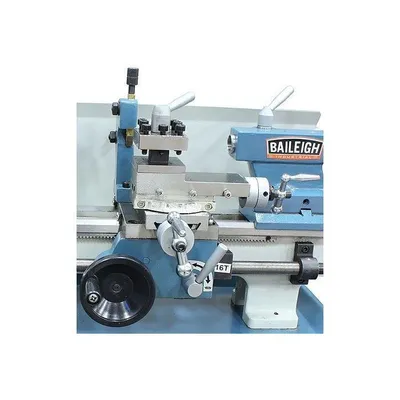

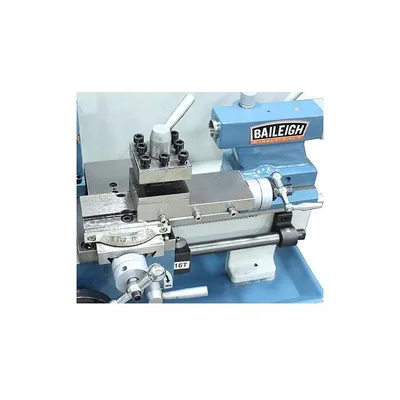

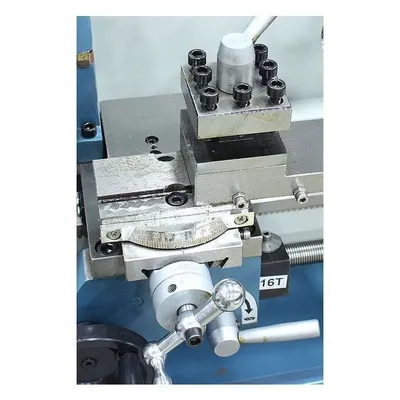

<li>Standard style tool post.</li>

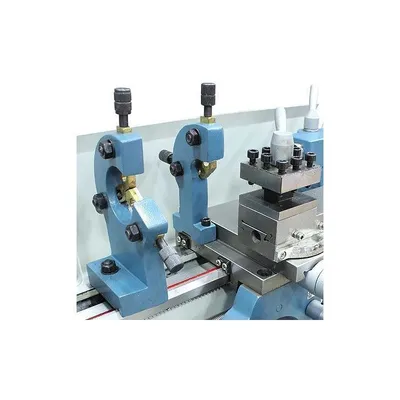

<li><strong>Steady rest and follow rest</strong> prevent wobbling and maintain high accuracy. </li>
<li>Splash guard helps keep your shop safe from flying debris.</li>
<li>Catch pan avoids mess when you spray coolant.</li>
<li>Baileigh lathe comes with <strong>1-year parts warranty</strong>.</li>
<li>Replacement <strong>parts in stock</strong> for fast shipping.</li>
<li>Covered by <strong>lifetime technical support</strong> by phone from our team of knowledgeable reps</li>
