<p><b>SPECIFICATIONS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Return Speed</div></td>
<td width="257" class="TableText"><div align="center">.228" / sec.</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Motor</div></td>
<td width="257" class="TableText"><div align="center">10 HP</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Piston Head Diameter</div></td>
<td width="257" class="TableText"><div align="center">6.125" (Main), 1.77" (Side)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Pump Speed</div></td>
<td class="TableText"><div align="center">4 gal/min</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Oil Capacity</div></td>
<td width="257" class="TableText"><div align="center">32 gal.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Working Speed</div></td>
<td class="TableText"><div align="center">.154" / sec.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Working Width</div></td>
<td class="TableText"><div align="center">48" (Main)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Maximum Capacity</div></td>
<td class="TableText"><div align="center">200 ton (Main), 20 ton (Side)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Cylinder Stroke</div></td>
<td class="TableText"><div align="center">11.8" (Main), 11.75" (Side)</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Cylinder Movable</div></td>
<td width="257" class="TableText"><div align="center">Yes (Main Only)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Cylinder Diameter</div></td>
<td class="TableText"><div align="center">11" (Main), 3.95" (Side)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Distance From Table To Ram</div></td>
<td class="TableText"><div align="center">Min. 8.11" - Max. 32.01" (Main), <br>
Min. 9.84" - Max. 38.97" (Side)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Power</div></td>
<td class="TableText"><div align="center">220 Volt Three Phase</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Shipping Weight</div></td>
<td class="TableText"><div align="center">6,644 lbs.</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Shipping Dimensions</div></td>
<td width="257" class="TableText"><div align="center">Frame: 78" x 46" x 89", <br>
Pump: 24" x 20" x 56"</div></td>
</tr>
</tbody>
</table>
<p><b><br></b><b>FEATURES:</b></p>

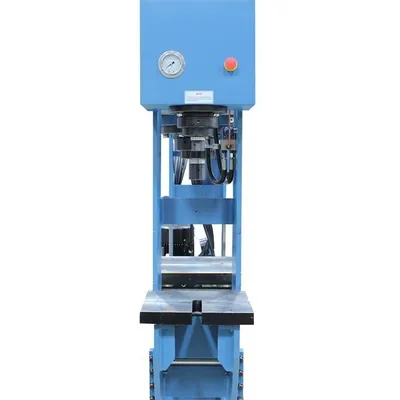

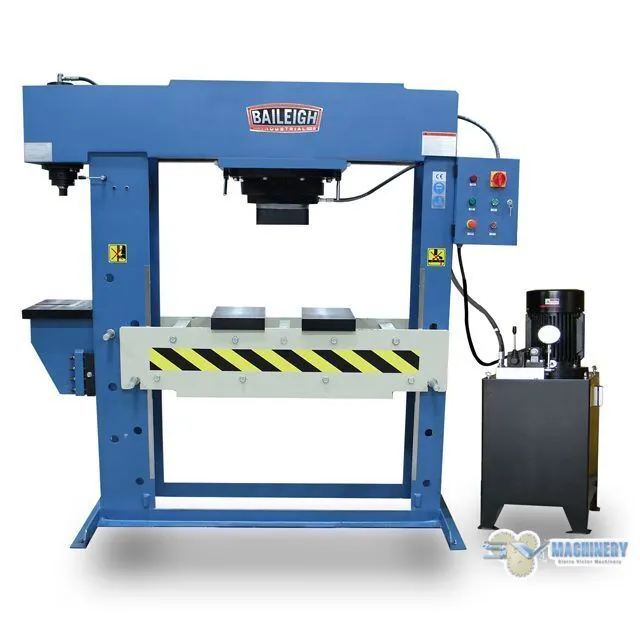

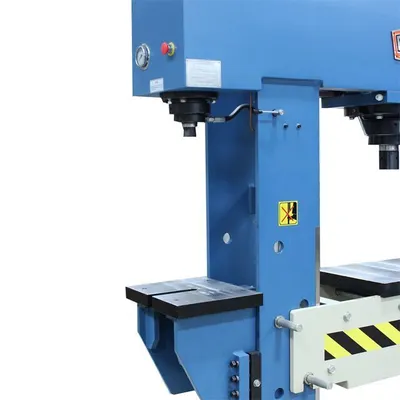

<ul><li>Our most powerful hydraulic shop press, the HSP-200M-C can deliver <strong>200 tons</strong> of pressure on the main ram, but also includes a smaller 15 ton hydraulic arbor press attachment. A <strong>.375” cast steel framework</strong> makes this press one of the best values on the market.</li><li>Unique<strong> two station design.</strong></li><li><strong>200-ton</strong> capacity on main press.</li><li><strong>20-ton</strong> capacity on side press.</li><li><strong>48”</strong> working width.</li><li><strong>11”-diameter</strong> cylinder with <strong>11.8” stroke</strong>.</li><li><strong>10 hp</strong> motor runs on <strong>220-volt 3-phase</strong> power.</li><li>Stand-alone <strong>hydraulic system</strong> with a piston-style pump.</li><li><strong>Cylinder can move left and right</strong> within the frame, ideal for off-center projects.</li><li><strong>Pressure gauge</strong> comes standard.</li><li>Includes a <strong>2-piece V-block set</strong>.</li><li>Baileigh Industrial covers this hydraulic H-frame press with a <strong>1-year parts warranty</strong>.</li><li><strong>Lifetime technical support by phone</strong> means you can call our experienced team whenever you need help or project tips.</li></ul>
