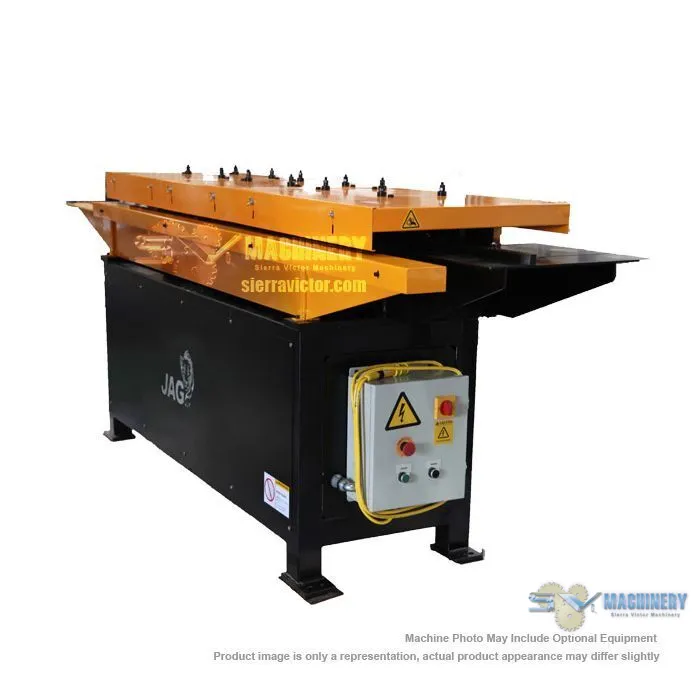

JAG 18 ga. TDC RollFormer

Have one to sell?
386-304-3720
dan@sierravictor.com
$25,185.00 USD

Or as low as $3,777.75 USD/month over 36 months

ConditionNew
Fulfillment
Freight  |  Free Shipping
Have one to sell?

Overview

Type:
Pittsburgh/Roll Former Machines
Manufacturer:
JAG
Model:
TDC ROLLFORMER
Condition:
Build To Order
Stock #:
TDC ROLLFORMER
Status:
For Sale

Description

The TDC Rollformer has 12 forming stations and produces TDC flanges at speeds of up to 60 feet per minute (18.3m/min)! Roll your own flanges and pocket the savings.

Capacity18 – 24 gauge (0.70 – 1.31 mm)18 – 24 gauge (0.70 – 1.31 mm)
Depth of Pocket1-7/8” (47.6 mm) / 2-1/8” (54.0 mm) for Clip1-7/8” (47.6 mm) / 2-1/8” (54.0 mm) for Clip
Power10 hp7.5 kW
Electical230v, 3-Phase, 60 cycle, AC, 1800 RPM230v, 3-Phase, 60 cycle, AC, 1800 RPM
Feeding Speed50 fpm (15.2 m/min)50 fpm (15.2 m/min)
Dimensions117”L x 33W” x 46”H (2950 x 830 x 1150 mm)117”L x 33W” x 46”H (2950 x 830 x 1150 mm)
Weight2,090 lbs. (950 kg)2,090 lbs. (950 kg)

* Ships direct from the factory. Lead time 6 to 8 weeks.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
Optional TDC Clip Roll Set
