<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Speeds
</div>
</td>
<td class="TableText">
<div align="center">90, 210, 345, 670, 1180, 1970 RPM
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Table Size
</div>
</td>
<td class="TableText">
<div align="center">28.75" x 8.25"
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText" width="319">
<div align="center">2 HP
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">X Axis Travel
</div>
</td>
<td class="TableText">
<div align="center">19-1/2"
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Y Axis Travel
</div>
</td>
<td class="TableText">
<div align="center">9"
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Nose to Base
</div>
</td>
<td class="TableText">
<div align="center">16.14"
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Stroke
</div>
</td>
<td class="TableText">
<div align="center">4-3/4"
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Taper
</div>
</td>
<td class="TableText">
<div align="center">R8
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">T Slots
</div>
</td>
<td class="TableText">
<div align="center">.550"
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Coolant Pump
</div>
</td>
<td class="TableText">
<div align="center">1/8 HP
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText">
<div align="center">110V
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Drill Capacity
</div>
</td>
<td class="TableText">
<div align="center">1.5"
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Travel
</div>
</td>
<td class="TableText">
<div align="center">4.75"
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions
</div>
</td>
<td class="TableText">
<div align="center">60" x 44" x 48"
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">710 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

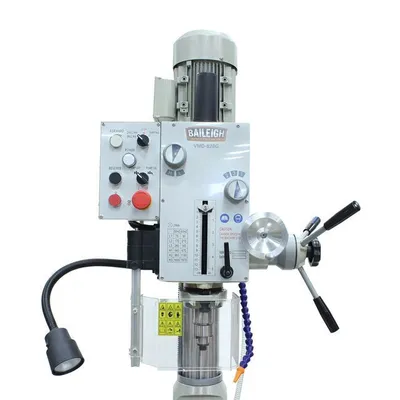

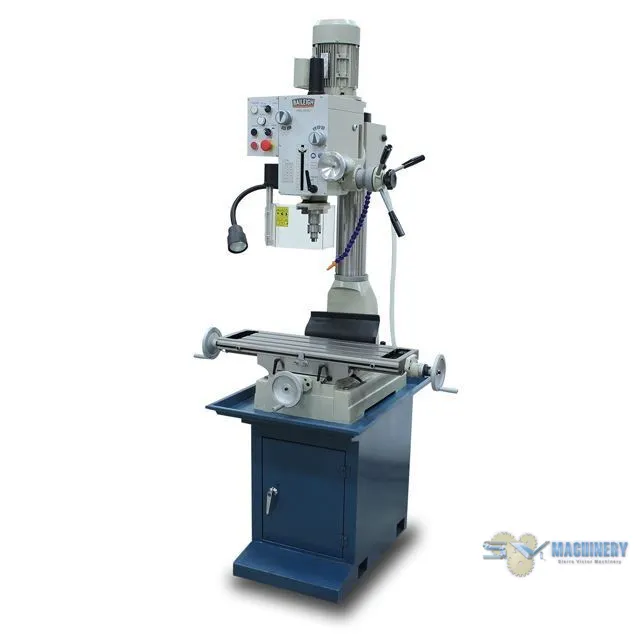

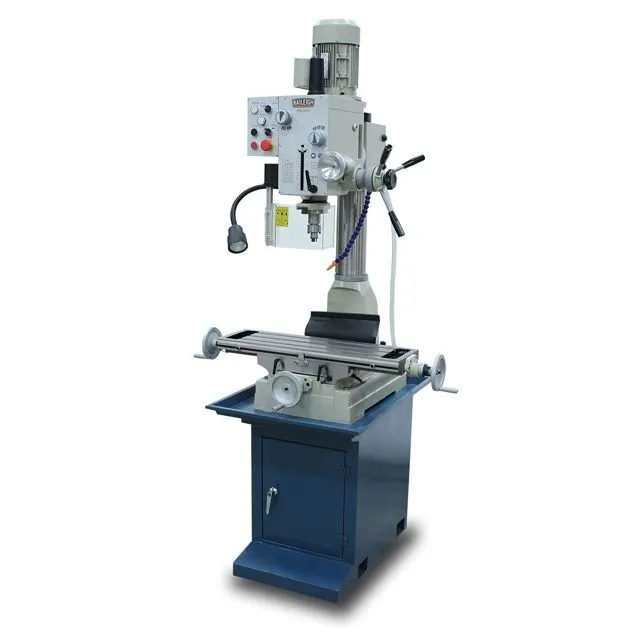

<li>Don’t have the space for both a gear-driven drill press and a milling machine? The VMD-828G combines <strong>2 functions in 1 space-efficient machine</strong>. This mill drill lets you <strong>set the right speed for a given application</strong>, providing greater control and extending tooling life</li>
<li><strong>2 hp motor</strong> runs on <strong>110-volt power</strong> and will work almost any site.</li>
<li><strong>1.5”</strong> maximum drilling capacity.</li>

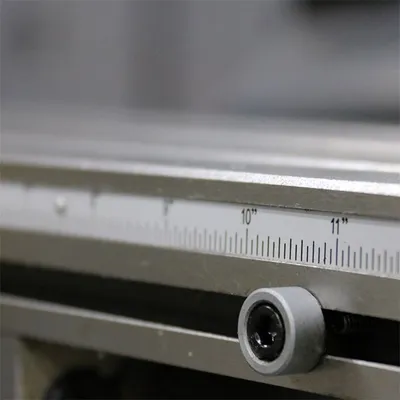

<li>Includes <strong>29” x 8” milling-style table</strong> which expands the machine’s possible uses.</li>

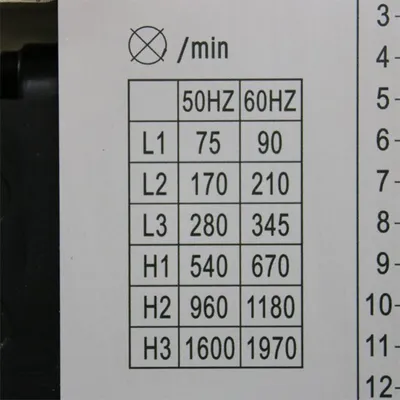

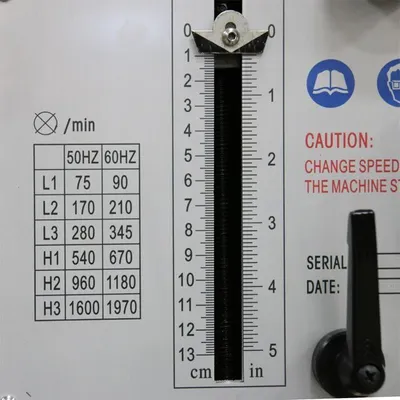

<li>Gear-driven head allows you to <strong>run tooling at the proper speed</strong> for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.</li>
<li><strong>Rigid base</strong> and <strong>very wide cast column</strong> adds to machine’s strength and eliminates flexing when milling or drilling at full capacity.</li>
<li>Comes standard with <strong>coolant system, R8 spindle taper, and a flexible halogen light</strong>.</li>
<li>Backed by a <strong>1-year warranty</strong> and <strong>lifetime technical support by phone</strong> from our team of experienced reps</li>
</ul>
