<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td rowspan="4" width="98" bgcolor="#cccccc">
<div align="center">Capacity: (in.)
</div>
</td>
<td rowspan="2" width="78" bgcolor="#cccccc">
<div align="center">Round
</div>
</td>
<td width="77" bgcolor="#cccccc">
<div align="center">90°
</div>
</td>
<td width="257">
<div align="center">11-13/16
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">45°
</div>
</td>
<td>
<div align="center">11-7/32
</div>
</td>
</tr>
<tr>
<td rowspan="2" bgcolor="#cccccc">
<div align="center">Rectangle
</div>
</td>
<td width="77" bgcolor="#cccccc">
<div align="center">90°
</div>
</td>
<td>
<div align="center">16-1/2 X 11-13/16 and <br>
18-1/8 X 8-5/8 and 19-1/4 X 4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">45°
</div>
</td>
<td>
<div align="center">12-9/16 X 11-7/32
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc">
<div align="center">HEAD MOVEMENT (DEG.)
</div>
</td>
<td>
<div align="center">45
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc">
<div align="center">BLADE SIZE (IN.)
</div>
</td>
<td>
<div align="center">1 X 0.037 X 156
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc">
<div align="center">BLADE WHEEL DIAMETER (IN.)
</div>
</td>
<td>
<div align="center">17-3/32 X 1-3/16
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc">
<div align="center">BLADE SPEED (SFPM)
</div>
</td>
<td>
<div align="center">VARIABLE, 90-370
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc">
<div align="center">BED HEIGHT (IN.)
</div>
</td>
<td>
<div align="center">27-1/2
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc">
<div align="center">MOTOR (HP)
</div>
</td>
<td>
<div align="center">3 HP , 230/460V, 3-PH
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc">
<div align="center">PREWIRED (V.)
</div>
</td>
<td>
<div align="center">230V, SURCHARGE APPLIES FOR <br>
460V RE-WIRE
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc">
<div align="center">MAXIMUM VISE OPENING (IN.)
</div>
</td>
<td>
<div align="center">19-5/8
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc">
<div align="center">Overall Dimensions (L x W x H) (In.)
</div>
</td>
<td>
<div align="center">87-3/4 X 31.5 X 53
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc">
<div align="center">Weight (Lbs.)
</div>
</td>
<td>
<div align="center">1,430
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong> – Limited
</p>
<ul>

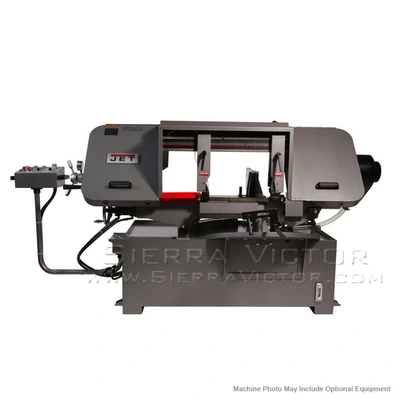

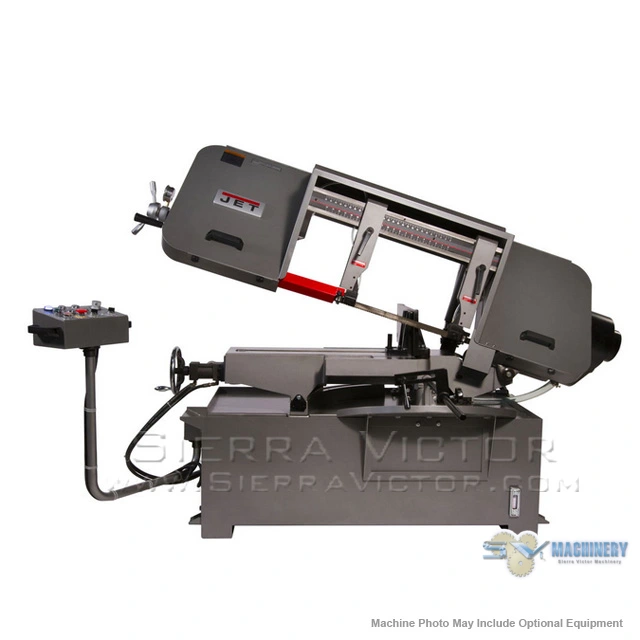

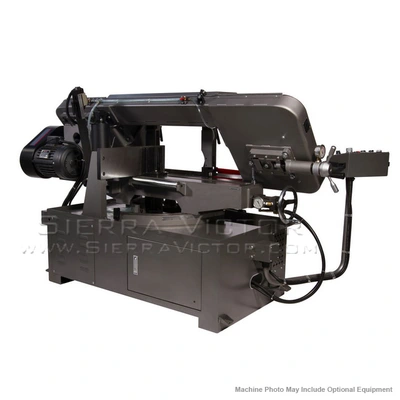

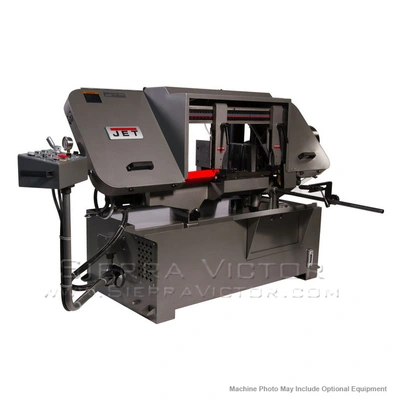

<li>This JET large capacity , semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatic while the mitering head allows the user to cut up to a 45° angle. The hydraulic downfeed control is easily adjusted, enabling feed rates to evolve with various types of material while the hydraulic vise makes set up easier for the operator.</li>
<li>Heavy duty construction reduces vibration and deflection</li>
<li>CSA/US: Following strict guidelines and electrical requirements, this JET Saw is CSA/US certified</li>
<li>Automatic blade breakage sensor detects accidental breakage and interrupts the power</li>
<li>Blade is fully guarded for operator safety</li>
<li>Auto shut off at the end of the cut</li>
<li>Mitering head - the workpiece remains fixed while the head swivels to cut any angle 0° to 45°</li>
<li>Semi-Automatic bow raises after cut to predetermined height</li>
<li>Blade Tensioning Meter</li>
<li>Built-in self propelled blade brush prevents chip build up in blade guides</li>
<li>Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with the various types of materials</li>
<li>Variable speed drivetrain allows theoperator to fine tune the blade speed quickly & easily</li>
<li>Auxiliary roller support on back of vise</li>
<li>One piece blade cover makes chanaging blades extremely easy</li>
<li>Circulating coolant system through both blade guides</li>
<li>Swing away control arm puts the controls at the Operator fingertips</li>
<li>Hydraulic vise makes set up easier for the operator</li>
</ul>
