<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td width="306">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PM9-1792074K</strong></span>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Remote Control
</div>
</td>
<td>
<div align="center">No
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Sound Rating
</div>
</td>
<td>
<div align="center">75 - 90 dB
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">1-Hose Connection Diameter
</div>
</td>
<td>
<div align="center">8"
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">2-Hoses Connection Diameter
</div>
</td>
<td>
<div align="center">4"
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">3-Hoses Connection Diameter
</div>
</td>
<td>
<div align="center">4"
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Bag Diameter
</div>
</td>
<td>
<div align="center">20"
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Filter Bag/Canister Length
</div>
</td>
<td>
<div align="center">26"
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Collection Bag Capacity
</div>
</td>
<td>
<div align="center">10 cubic foot
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Collection Bag Length
</div>
</td>
<td>
<div align="center">30"
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Air Flow @ 4"
</div>
</td>
<td>
<div align="center">236 cu.ft/min
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Air Flow @ 8"
</div>
</td>
<td>
<div align="center">1,782 cu.ft/min
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Static Pressure
</div>
</td>
<td>
<div align="center">11.31 inch of water
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Particle Size (Micron)
</div>
</td>
<td>
<div align="center">98% of 2 micron particles; 86% of 1 micron particles
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Velocity @ 4"
</div>
</td>
<td>
<div align="center">5,200 foot per minute
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Air Inlet
</div>
</td>
<td>
<div align="center">(1) at 8" or (3) at 4"
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Impeller Diameter
</div>
</td>
<td>
<div align="center">14"
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Impeller Fins
</div>
</td>
<td>
<div align="center">7
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Impeller Material
</div>
</td>
<td>
<div align="center">Steel
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Separator Tank Diameter
</div>
</td>
<td>
<div align="center">20"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Separator Tank Height
</div>
</td>
<td>
<div align="center">10"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">
<div align="center">Motor
</div>
</div>
</td>
<td>
<div align="center">3 HP, 3 Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Motor Voltage
</div>
</td>
<td>
<div align="center">230 / 460V
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Prewired Voltage
</div>
</td>
<td>
<div align="center">230V
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Motor Current
</div>
</td>
<td>
<div align="center">8.2 / 4.1 A
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Overall Dimensions (assembled)
</div>
</td>
<td>
<div align="center">61" x 30" x 72" (L / W / H)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Overall Dimensions (shipped)
</div>
</td>
<td>
<div align="center">46" x 23" x 45" (L / W / H)
</div>
</td>
</tr>
<tr>
<td width="208" bgcolor="#cccccc">
<div align="center">Net Weight ( lb. )
</div>
</td>
<td>
<div align="center">264
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 5 YEAR </strong>(for Private Use) /<strong> 2 YEAR</strong> (for Commercial Use)
</p>
<ul>

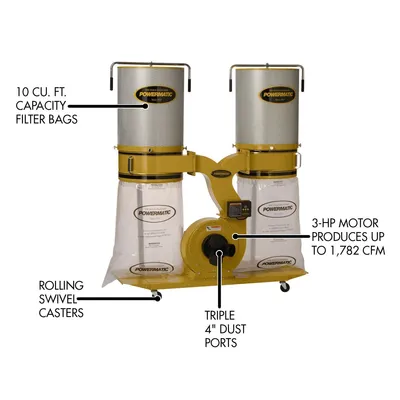

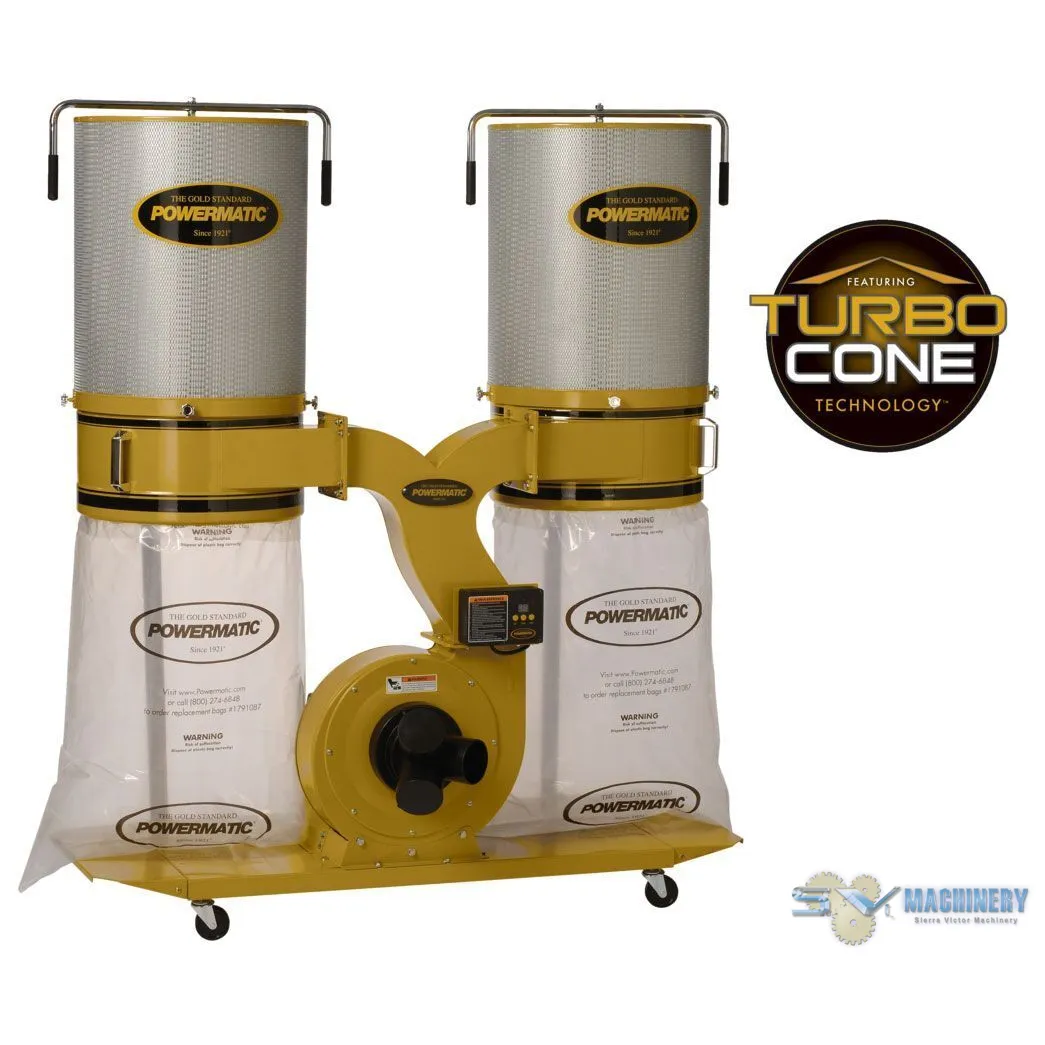

<li>The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive Turbo Cone improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.</li>
<li>TurboCone improves chip separation and collector bag packing efficiency</li>
<li>The cone eliminates premature filter clogging for sustained performance</li>
<li>All-metal duct construction for rigidity and improved air flow</li>
<li>2-micron canister filters offer over six times filtering surface area of standard bags</li>
<li>The large impeller is powered by a 3HP motor for peak performance</li>
<li>Triple 4” dust ports allow for several hoses to be attached at the same time</li>
<li>Collection bags use a snap ring for rapid installation/removal</li>
<li>10 cubic feet collection bag capacity reduces number of bag changes.</li>
<li>Four swivel casters for easy maneuverability</li>
</ul>
