<p><b>SPECIFICATIONS:</b></p>
<table width="520" cellspacing="0" cellpadding="0" border="1" class="TableText">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td><div><span style="color: #ffffff;"><strong>MODEL</strong></span> </div></td>
<td width="140"><div><span style="color: #ffffff;"><strong>1791297</strong></span> </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Maximum Planing </div></td>
<td><div>20" </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Maximum Planing Thickness </div></td>
<td><div>8" </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Maximum Depth of Cut </div></td>
<td><div>3/32" </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Minimum Planing Length </div></td>
<td><div>6-3/4" </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Cutterhead Diameter </div></td>
<td><div>3-3/16" </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Cutterhead Speed </div></td>
<td><div>5,000 RPM </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Cuts Per Minute </div></td>
<td><div>20,000 </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Feed Rate </div></td>
<td><div>24 & 31 FPM (16 & 20 FPM with gear change) </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Number of Knives </div></td>
<td><div>4 </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Dust Port Diameter </div></td>
<td><div>5" </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Dust Collection Minimum CFM Required </div></td>
<td><div>900 cu.ft/min </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Blade Size </div></td>
<td><div>20" x 1" x 1/8" </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Bed Rollers Adjustable from Front </div></td>
<td><div>— </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Readout Scale </div></td>
<td><div>inch/ metric </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Table Height Adjust Manual </div></td>
<td><div>— </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Table Support </div></td>
<td><div>4 column </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Number of Speeds </div></td>
<td><div>4 </div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>Range of Speeds </div></td>
<td><div>— </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div>
<div>Motor </div>
</div></td>
<td><div>5 HP, 3 Ph </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div>Motor Voltage </div></td>
<td><div>230V </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div>Prewired Voltage </div></td>
<td><div>230V </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div>Motor Current </div></td>
<td><div>— </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div>Dimensions ( L / W / H ) (in.) </div></td>
<td><div>26 x 36-5/8 x 41-3/8 </div></td>
</tr>
<tr>
<td width="232" bgcolor="#cccccc"><div>Net Weight ( lb. ) </div></td>
<td><div>770 </div></td>
</tr>
</tbody>
</table>
<p><b><br></b><b>FEATURES:</b></p>

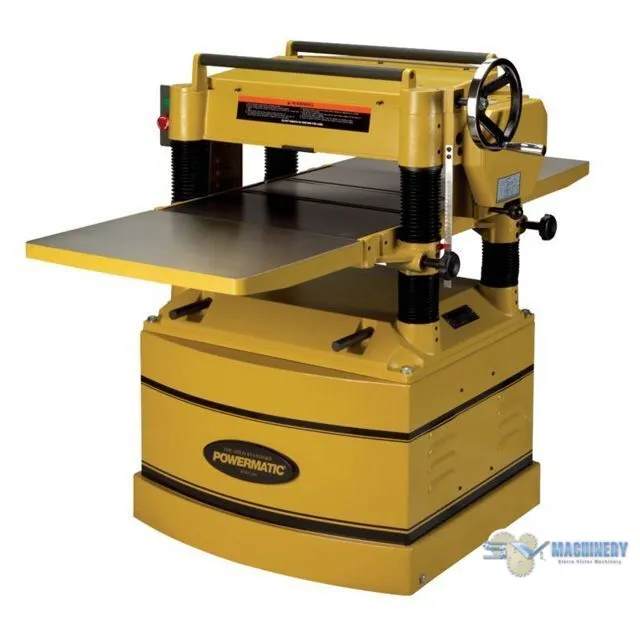

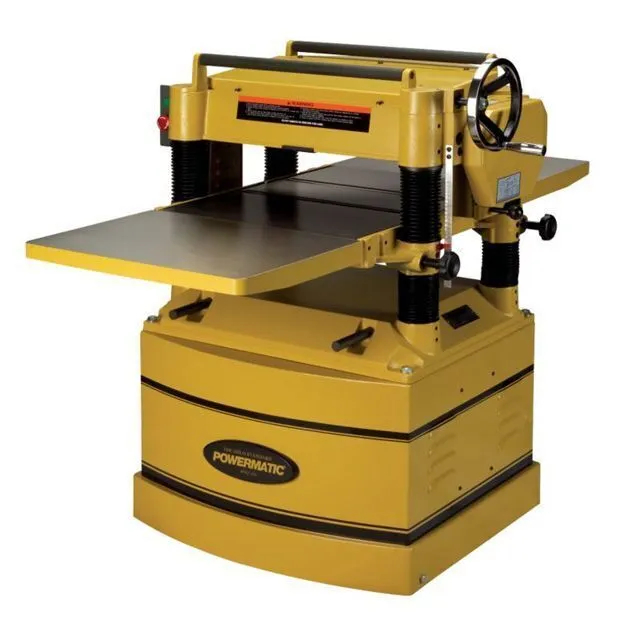

<ul><li>This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The 5" dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.</li><li>Knife setting gauge</li><li>5HP motor and 20" planing capacity for heavy duty work</li><li>Fully enclosed base cabinet with integrated casters for shop mobility</li><li>Cast iron table with extensions creates a big 55-1/2" x 20" working area</li><li>Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility</li><li>Feed rollers and cutterhead supported by full cast iron head assembly for rigidity</li><li>460V operation requires an additional 460V magnetic switch: 209-5016E</li></ul>
<p><strong>STANDARD EQUIPMENT:</strong></p><ul><li>Single-sided knives</li><li>5" diameter dust port</li><li>Cast iron extension tables</li><li>460V operation requires an additional 460V magnetic switch, part 209-5016E</li></ul>
