<p><b>SPECIFICATIONS:</b></p>
<table width="520" cellspacing="0" cellpadding="0" border="1" class="TableText">
<tbody>
<tr bgcolor="#333333" class="Title_white_bold">
<td><div align="center"><span style="color: rgb(255, 255, 255);"><b>MODEL</b></span></div></td>
<td width="257"><div align="center"><span style="color: rgb(255, 255, 255);"><b>1280102C</b></span></div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Speed</div></td>
<td><div align="center">7,500 and 10,000 RPM </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Reversable</div></td>
<td><div align="center">Yes</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Diameter</div></td>
<td><div align="center">3/4" and 1-1/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Size Under Nut</div></td>
<td><div align="center">3/4" (3-3/4) and 1-1/4" (6)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Travel</div></td>
<td><div align="center">4</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Tilting Spindle</div></td>
<td><div align="center">—</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Table Size</div></td>
<td><div align="center">40" x 30"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Table Height From Floor</div></td>
<td><div align="center">35.5"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Table Opening Diameter</div></td>
<td><div align="center">7-3/8"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Table Insert Opening Diameter</div></td>
<td><div align="center">2-35/64", 4-5/32" and 5-3/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Fence Size (L x H)</div></td>
<td><div align="center">18-3/4" x 4-7/8"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Fence Travel (Major and Minor)</div></td>
<td><div align="center">—</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Slide Table Size (L x W)</div></td>
<td><div align="center">—</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Table Travel</div></td>
<td><div align="center">—</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Table Inserts</div></td>
<td><div align="center">2-35/64", 4-5/32" and 5-3/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Router Bit Collet Diameter</div></td>
<td><div align="center">1/4" and 1/2" (optional) </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Dust Port Outside Diameter</div></td>
<td><div align="center">4" (dual ports) </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Dust Collection Minimum CFM Required</div></td>
<td><div align="center">600 cu.ft/min</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Electrical Controls - Magnetic Starter</div></td>
<td><div align="center">Yes</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Digital Readouts</div></td>
<td><div align="center">Spindle height </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">
<div align="center">Motor</div>
</div></td>
<td><div align="center">5 HP, 3 Ph</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Voltage</div></td>
<td><div align="center">230 / 460V</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Prewired Voltage</div></td>
<td><div align="center">230V</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Wiring Remarks</div></td>
<td><div align="center">Requires 460V magnetic switch </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Current</div></td>
<td><div align="center">—</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Dimensions ( L / W / H ) (in.)</div></td>
<td><div align="center">40 x 37 x 45 </div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc"><div align="center">Net Weight ( lb. )</div></td>
<td><div align="center">664</div></td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES:</b></p>

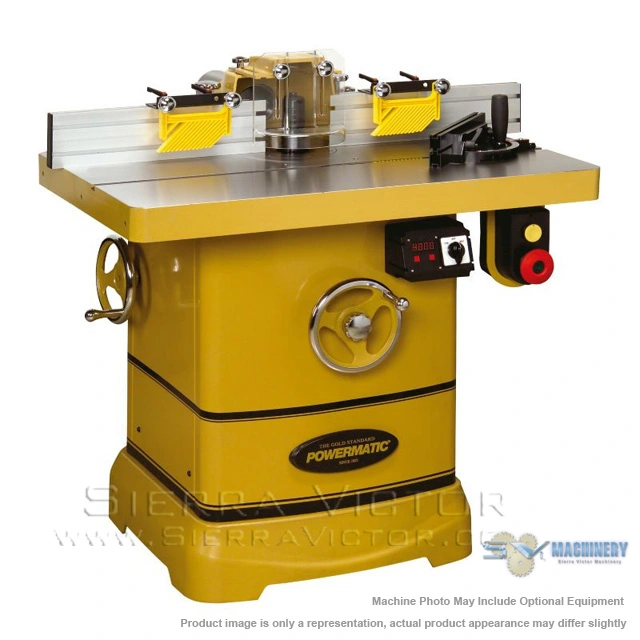

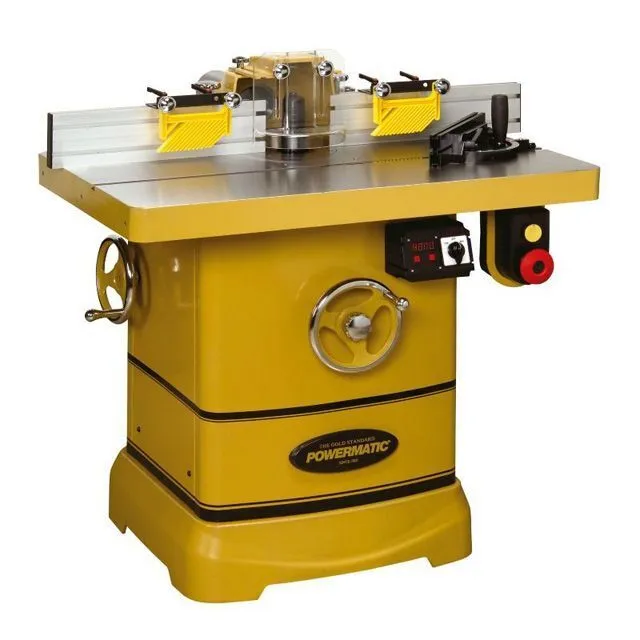

<p>This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.</p>
<ul><li>Integrated caster system built into the cast iron base for instant shop mobility</li><li>Spindle height digital readout for making fine incremental adjustments on multiple passes</li><li>Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding</li><li>Convenient quick lock belt tensioning for easy speed adjustment</li><li>Industrial fence system with fine adjust dials for more precise positioning</li><li>5HP totally enclosed motor offers plenty of power</li><li>Two spindle speeds (reversible) for a variety of work</li><li>Superior clear cutter guard promotes safety, allows observation of the entire cut</li><li>Table predrilled and tapped for feeder mounting in two locations</li><li>Fence has dual featherboards for work holding</li><li>Dual 4" ports for attachment to dust collection system</li></ul>
<p><strong>STANDARD EQUIPMENT:</strong></p>
<ul><li>3/4" and 1-1/4" interchangeable spindle collets</li><li>Deluxe miter gauge</li><li>Featherboard hold downs</li><li>460V operation requires an additional 460V magnetic switch, part PM2700-114C</li></ul>
