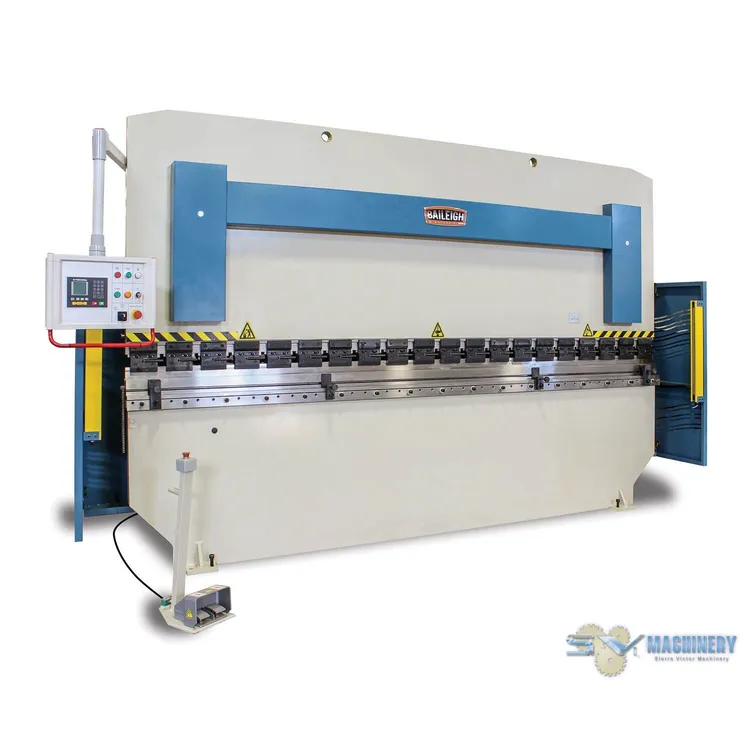

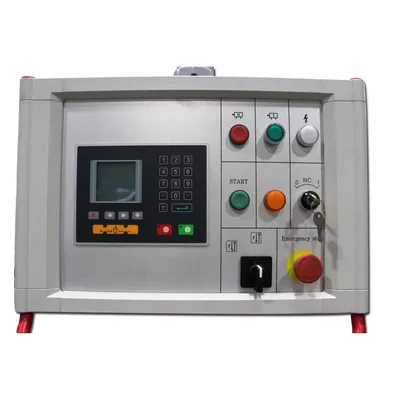

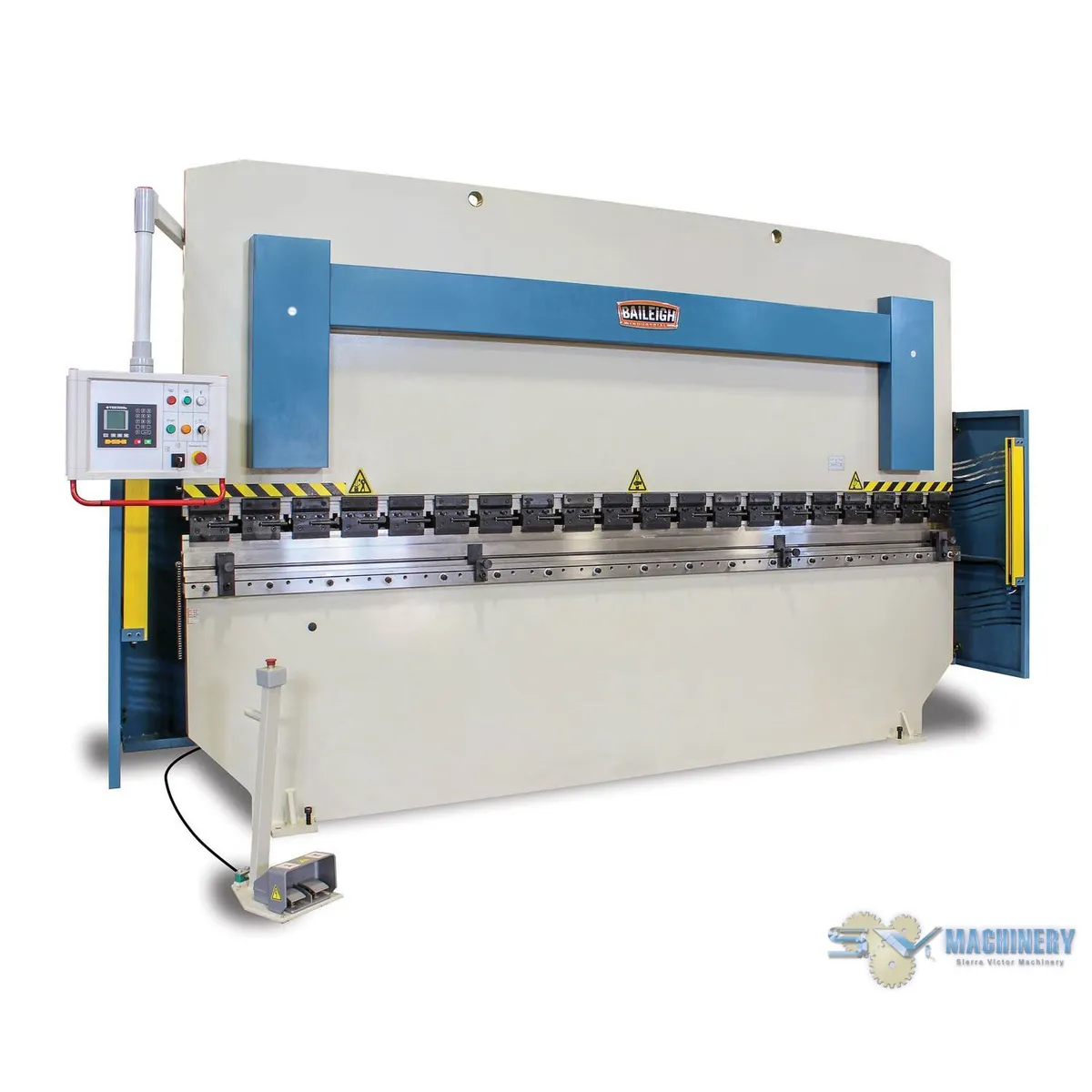

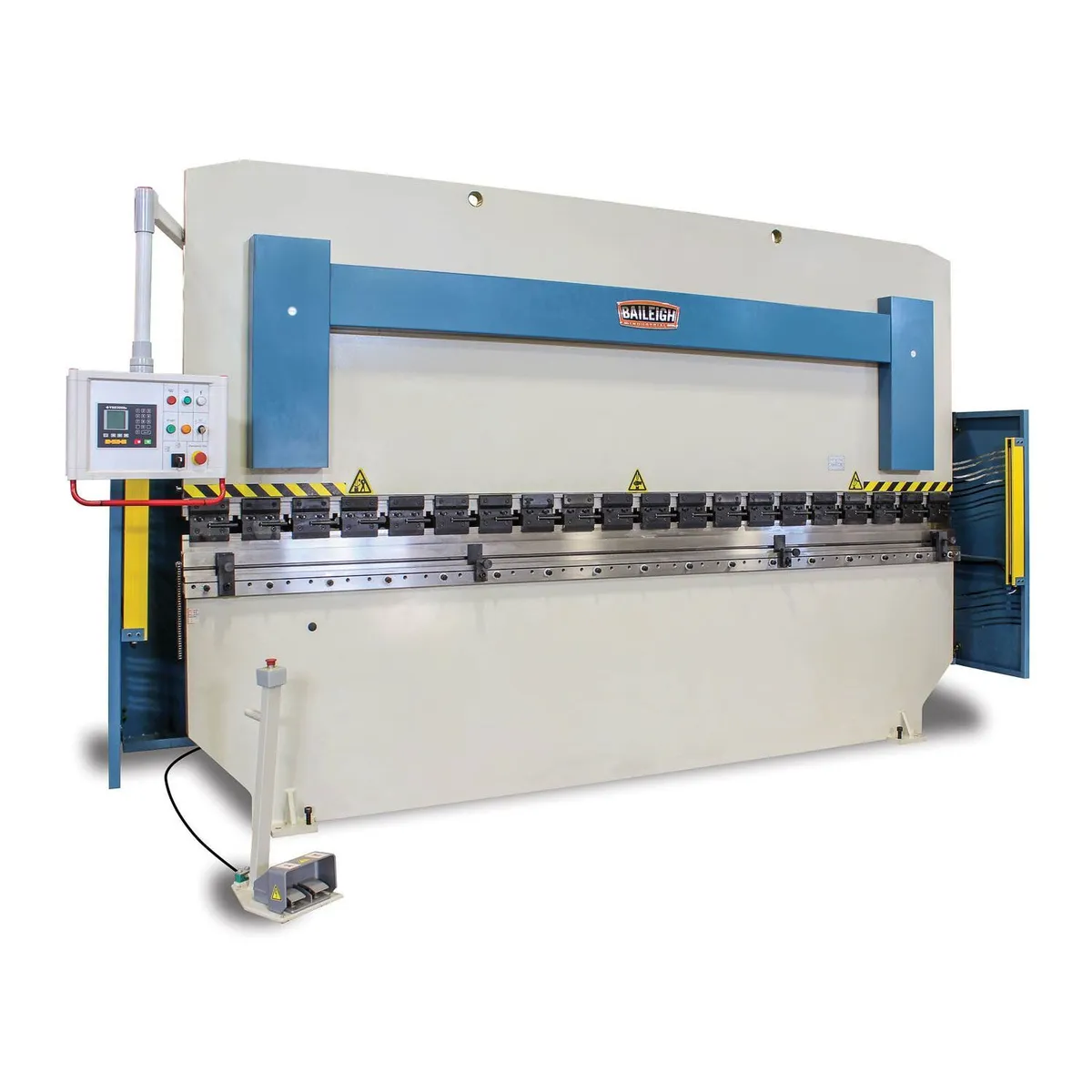

<ul><li>This large press brake lets you slide 10-foot sheets between the housings. A rigid steel frame and hydraulic parts by Nachi and Vickers/Eaton keep the machine running reliably.</li><li>Delivers 179 tons of pressure</li><li>Offers 13-foot length (157”) and 123” of distance between the housings</li><li>This press brake is also available in a 10-foot version</li><li>Runs on 220-volt 3-phase power</li><li>Industrial-grade hydraulic system with Vickers/Eaton and Nachi components will last for many years at peak capacity</li><li>Torque tube connects the 2 hydraulic cylinders, so they always stay synchronized and parallel to the bending table</li><li>Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer</li><li>Hydraulic cylinders are near the back of the machine for convenient fluid changes</li><li>Accurate, User-Friendly Control System<ul><li>Runs in single-bend mode or programmable mode.</li><li>Comes standard with 2 axes of control: stroke and back gauge distance.</li><li>Controller is so simple that you could train someone to use it in 5 minutes.</li><li>Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.</li><li>Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.</li><li>Main electrical components made in Germany by Weidmueller and Schneider will give you years of trouble-free productivity.</li><li>Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.</li><li>You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.</li><li>Choose between 2 speeds: a rapid approach and retract and a slow bending speed.</li><li>Speed option lets you reduce cycle time and make your shop more efficient.<br></li><li>Chain drive back gauge system uses tried-and-true technology that you can maintain easily.<br></li><li>The 23.62" back gauge can advance or retract according to programmed instructions.</li></ul></li><li>Steel Plate Construction and Included Tooling<ul><li>Fully welded all-steel construction helps prevent deformation and minimize flex during the bending process.</li><li>Weighs a whopping 24,640 lbs. for massive structural strength that ensures accurate results.</li><li>Includes support arms around 2 feet in length.</li><li>Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).</li><li>Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!</li><li>Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.</li><li>CNKELI safety light curtains prevent the machine from bending when someone is too close.</li><li>Light curtains will swing open and get out of the way when you’re doing a tool change.</li></ul></li></ul>
