<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td rowspan="7" class="TableText1" width="69" bgcolor="#cccccc">
<div align="center">BELT
</div>
</td>
<td class="TableText1" width="186" bgcolor="#cccccc">
<div align="center">Belt Speeds (sfpm)
</div>
</td>
<td class="TableText1" width="257">
<div align="center">2,200 - 4,000 Variable Speed
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center"><span id="page46R_mcid106"><span role="presentation" dir="ltr">Belt Size & Grit</span></span><span id="page46R_mcid107"><br>
</span>
</div>
</td>
<td class="TableText1">
<div align="center">6” x 48” 80 Grit
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">

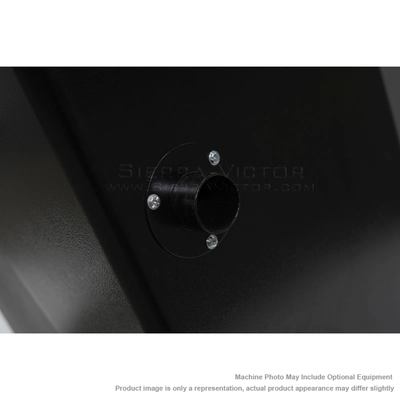

<div align="center"><span id="page46R_mcid108"><span role="presentation" dir="ltr">Dust Port</span></span><span id="page46R_mcid109"><span role="presentation" dir="ltr"> </span></span>
</div>
</td>
<td class="TableText1">
<div align="center">3"
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Platen
</div>
</td>
<td class="TableText1">
<div align="center">Cast Iron
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Belt Table
</div>
</td>
<td class="TableText1">
<div align="center">Cast Iron, 7-1/16” x 14-11/16”
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center"><span id="page46R_mcid114"><span role="presentation" dir="ltr">Belt Table Tilt</span></span><span id="page46R_mcid115"><br>
</span>
</div>
</td>
<td class="TableText1">
<div align="center">45 degrees out
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Belt Table T-slot (width)
</div>
</td>
<td class="TableText1">
<div align="center">3/4"
</div>
</td>
</tr>
<tr>
<td rowspan="4" class="TableText1" bgcolor="#cccccc">
<div align="center">DISC
</div>
</td>
<td class="TableText1" bgcolor="#cccccc">
<div align="center"><span id="page46R_mcid119"><span role="presentation" dir="ltr">Disc Speeds (RPM)</span></span><span id="page46R_mcid120"></span>
</div>
</td>
<td class="TableText1">
<div align="center">1,547 - 2,813
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Disc Size & Grit
</div>
</td>
<td class="TableText1">
<div align="center">12” 80 Grit
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center"><span id="page46R_mcid123"><span role="presentation" dir="ltr">Disc Table</span></span><span id="page46R_mcid124"><br>
</span>
</div>
</td>
<td class="TableText1">

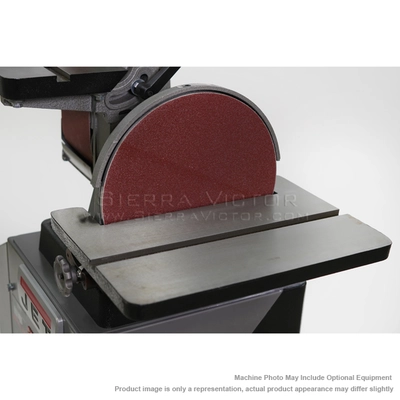

<div align="center">Cast Iron, 16-1/2” x 9”
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center"><span id="page46R_mcid125"><span role="presentation" dir="ltr">Disc Table T-slot (width)</span></span><span id="page46R_mcid126"></span>
</div>
</td>
<td class="TableText1">
<div align="center">3/4"
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText1" bgcolor="#cccccc">
<div align="center">Electrics
</div>
</td>
<td class="TableText1">
<div align="center">2HP, 230V, 3Ph
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText1" bgcolor="#cccccc">
<div align="center"><span id="page46R_mcid129"><span role="presentation" dir="ltr">Motor Voltage Input</span></span><span id="page46R_mcid130"><br>
</span>
</div>
</td>
<td class="TableText1">
<div align="center">230V, Single Phase
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText1" bgcolor="#cccccc">
<div align="center">AMPS
</div>
</td>
<td class="TableText1">
<div align="center">13
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText1" bgcolor="#cccccc">
<div align="center">Motor Speed
</div>
</td>
<td class="TableText1">
<div align="center">1720 RPM’s
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText1" bgcolor="#cccccc">
<div align="center">Overall Dimensions (LxWxH)
</div>
</td>
<td class="TableText1">
<div align="center">31-1/2” x 22-27/32” x 49-3/16”
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText1" bgcolor="#cccccc">
<div align="center"><span id="page46R_mcid137"><span role="presentation" dir="ltr">Net Weight (lbs)</span></span><span id="page46R_mcid138"><span role="presentation" dir="ltr"> </span></span>
</div>
</td>
<td class="TableText1">
<div align="center">288
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText1" bgcolor="#cccccc">
<div align="center"><span id="page46R_mcid139"><span role="presentation" dir="ltr">Gross Weight (lbs)</span></span><span id="page46R_mcid140"></span>
</div>
</td>
<td class="TableText1">
<div align="center">345
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>

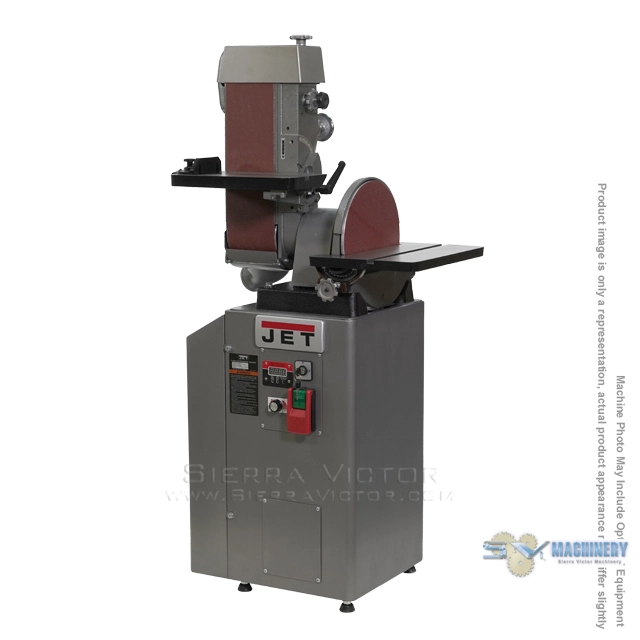

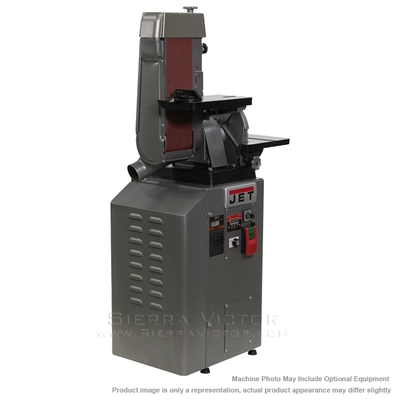

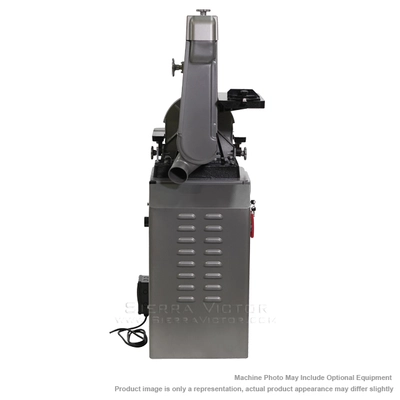

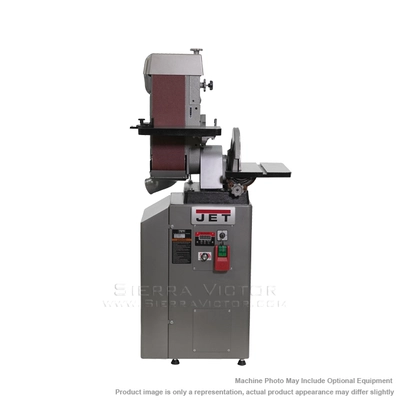

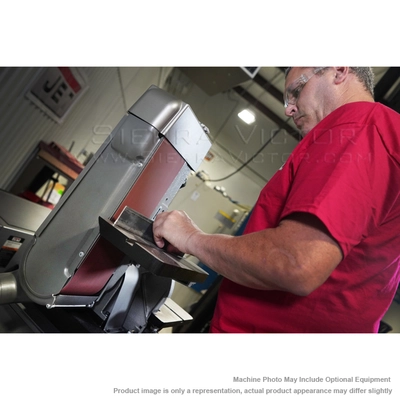

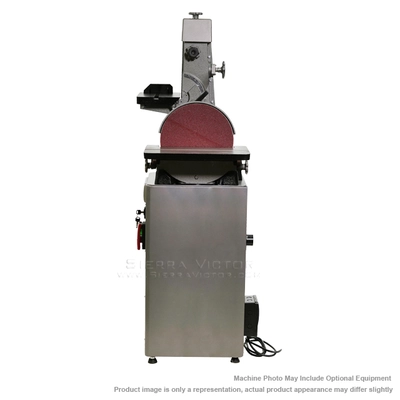

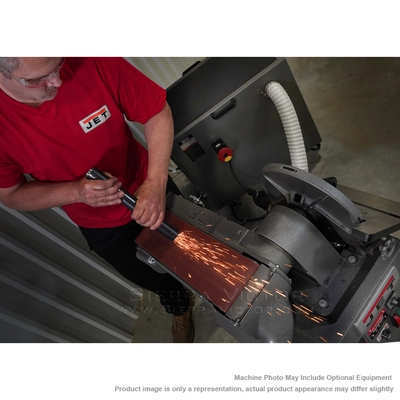

<li>6" x 48" Belt & 12" VS Disc Sander Grinder: A combination machine saves valuable floor space and allows operators to both Grind & Finish materials. Variable Speed range provides the ability to use on multiple materials. The belt operates at any angle and conforms to curves, angles, or circular Finishing & Grinding operations. Also able to be connected to JET Dust Collectors</li>

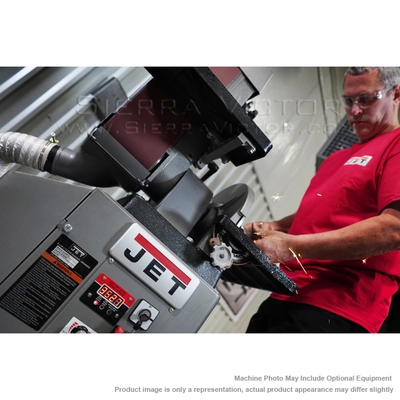

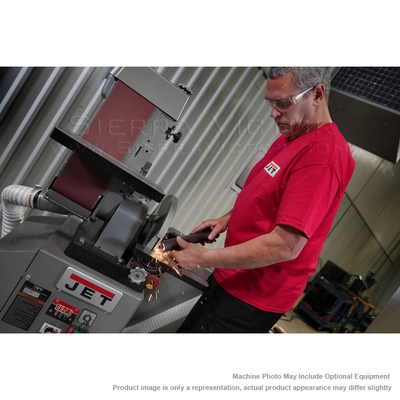

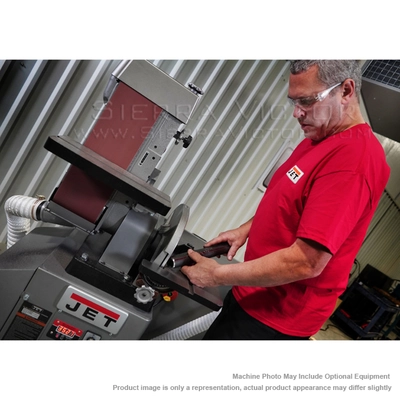

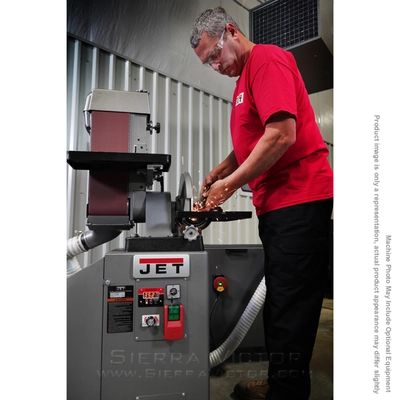

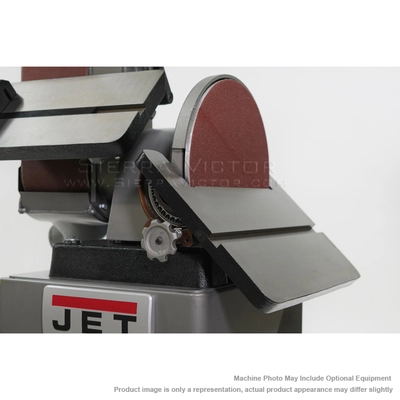

<li>JET’s new Variable Speed combination Belt & Disc machine conveniently grinds and finishes. This workhorse features a compact footprint (20.5” x 27” x 58") and provides a variable speed solution to finish or grind a wider range of material including mild steel, aluminum, and even plastics. Remove material with precision thanks to speeds ranging from 2200-4000 SFPM (Belt) and 1547-2813 RPM (Disc). Both worktables tilt 45 degrees for added versatility and are quickly dialed in with the included measurement gauge. We even fine-tuned the design for reduced vibration and a quieter operating level to make your next project nearly effortless</li>
<li>Typical Customer Environments:
<ul>
<li>Small-to-Midsize Shops</li>
<li>Fabrication Shops</li>
<li>Maintenance Shops</li>
<li>School & Government</li>
</ul>
</li>

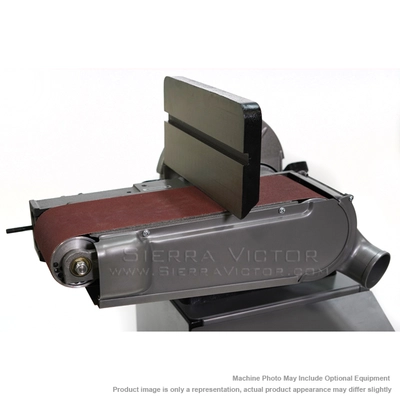

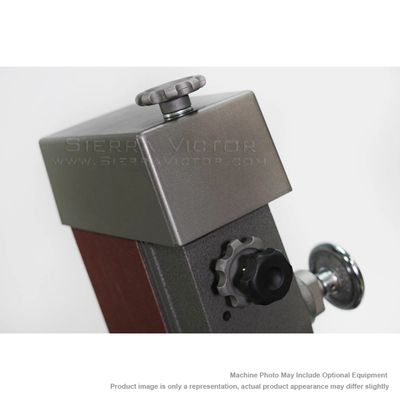

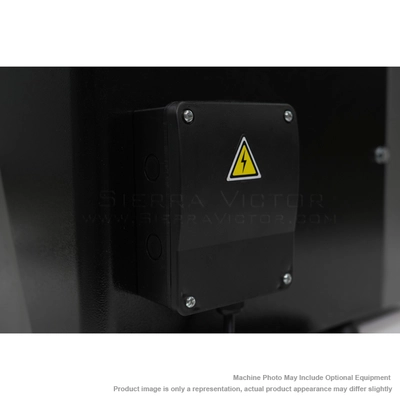

</ul><p><strong>Durability:</strong></p><ul><li>A fully machined and balanced disc runs smoothly without any</li><li>The heavy-duty cast iron platen is both adjustable and removable.</li><li>Large slotted tables made of cast iron</li><li>Stand is a heavy-duty, one-piece construction</li></ul><p><strong>Ease of Use:</strong></p><ul><li>Delivers the top characteristics and benefits of both a belt and a disc finishing system in one machine</li><li>Variable speed range from 2200-4000 SFPM (Belt) and 1547-2813 RPM (Disc) allows users to finish or grind a wider range of material including mild steel, aluminum, and even plastic by changing abrasive belt & disc grits</li><li>The standard die-cast aluminum miter gauge allows for easy attainment of both plain and compound miters</li><li>Easily remove the upper guard for contour finishing</li><li>Come standard with 60 Grit abrasives for both the Belt & Disc</li></ul><p><strong>Safety:</strong></p><ul><li>The drums are fully enclosed, and the sanding belt is guarded for safety</li><li>Maximizing the operator's safety, the inverter allows for quick stopping of the belt and disc</li><li>Variable position locks that can be used to create a sturdy work surfaces</li><li>Both the dust collector and dust chute are adjustable to maximize collection</li></ul>
<p><b>OPTIONAL ITEMS:</b></p>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td class="optional_accessories" width="59">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PART #</strong></span>
</div>
</div>
</td>
<td width="359">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>INCLUDES</strong></span>
</div>
</div>
</td>
<td width="94" bgcolor="#333333">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PRICE</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT1-115
</div>
</td>
<td>
<div align="center">Splice Fitting, 3” to 3”
</div>
</td>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">$34.99
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT1-116
</div>
</td>
<td>
<div align="center">Reducer Sleeve, 3” to 4”
</div>
</td>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">$41.99
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT1-117
</div>
</td>
<td>
<div align="center">Reducer Sleeve, 2” to 3”
</div>
</td>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">$32.99
</div>
</td>
</tr>
</tbody>
</table>
