<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Forming Width
</div>
</td>
<td class="TableText" width="257">
<div align="center">50"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Capacity (Mild Steel)
</div>
</td>
<td class="TableText" width="257">
<div align="center">16 ga. (.060")
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Upper Roll Diameter
</div>
</td>
<td class="TableText" width="257">
<div align="center">3"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Minimum Forming Diameter
</div>
</td>
<td class="TableText" width="257">
<div align="center">4.5"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Wire Grooves
</div>
</td>
<td class="TableText" width="257">
<div align="center">Yes
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Stand
</div>
</td>
<td class="TableText">
<div align="center">Yes
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Roll Speed
</div>
</td>
<td class="TableText" width="257">
<div align="center">16 rpm
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText" width="257">
<div align="center">1 hp
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power Requirement
</div>
</td>
<td class="TableText">
<div align="center">220V / 1-phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions (L/W/H)
</div>
</td>
<td class="TableText">
<div align="center">67" x 26" x 46"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">770 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<div><br></div>
<ul>

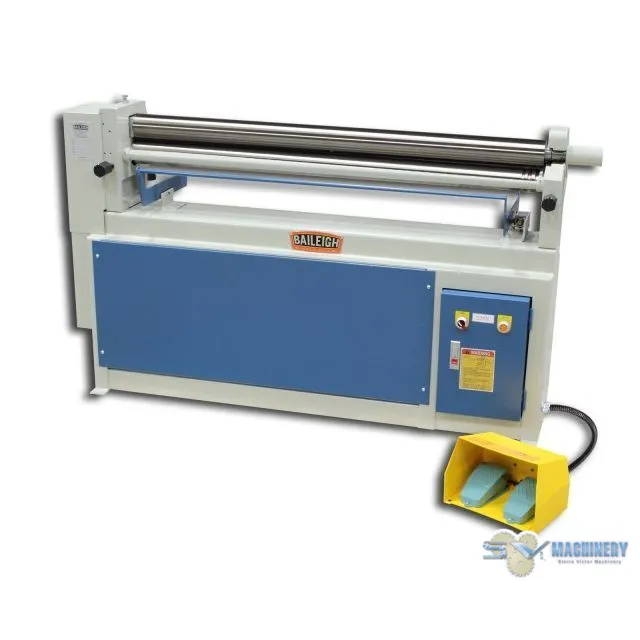

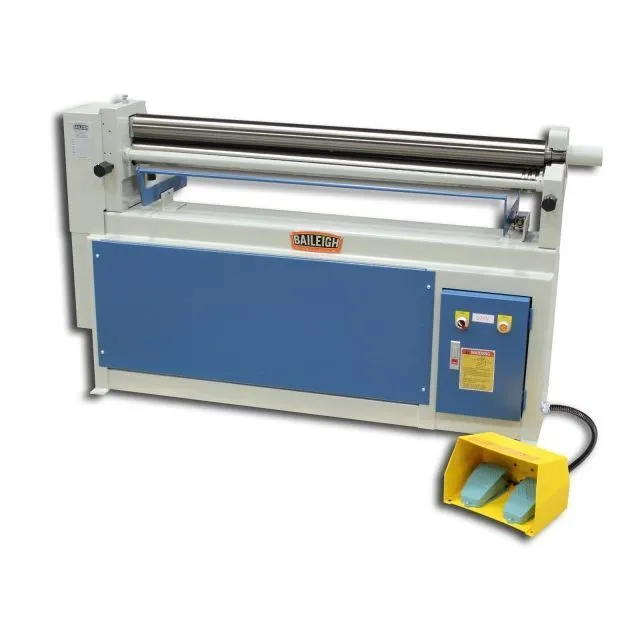

<li> This electric slip roll can save time and effort in any HVAC shop or general fabrication shop. Its solid plate steel upper main frame is precisely machined to keep all 3 rolls in alignment. <br>
</li>
<li>50” working width.</li>
<li>Can roll 16 gauge mild steel with ease.</li>
<li>1 hp motor runs on 220-volt single-phase power.</li>
<li>Motor controls the movement of 2 driven rolls, so the SR-5016 has enough power for almost any job, anywhere.</li>
<li>Includes foot pedal for both left and right rolling applications.</li>
<li>All-steel lower base is fully welded and integrated with the uprights for rigidity.</li>
<li>Comes with 3 grooves for rolling wire or rod.</li>
<li>Integrated emergency stops to help maintain a safe workplace.</li>
<li>Covered by a 1-year parts warranty.</li>
<li>You can count on lifetime technical support by phone from our team of reps with hands-on machine experience.</li>
</ul>
