<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Mild Steel Capacity
</div>
</td>
<td class="TableText">
<div align="center">16 ga
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Aluminum Capacity
</div>
</td>
<td class="TableText">
<div align="center">14 ga
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">CFM
</div>
</td>
<td class="TableText" width="257">
<div align="center">15 @ 120psi
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Speed
</div>
</td>
<td class="TableText" width="257">
<div align="center">0 - 1000 beats / min (Variable)
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Tooling Height Adjustment
</div>
</td>
<td class="TableText" width="257">
<div align="center">2"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Throat Depth
</div>
</td>
<td class="TableText">
<div align="center">28"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText" width="257">
<div align="center">80 - 120 psi
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions
</div>
</td>
<td class="TableText">
<div align="center">36" x 48" x 70"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">1,000 lbs.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Included Tooling
</div>
</td>
<td class="TableText">
<div align="center">2” Thumbnail Shrinking Dies,<br>
2.5” Master Flat Top Die, <br>
1” Linear Stretch Die, <br>
3” x 36” Radius Die, <br>
3” x 24” Radius Die, <br>
3” x 12” Radius Die
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">*Optional Tooling
</div>
</td>
<td class="TableText">
<div align="center">Some applications may require optional tooling. Please contact Sierra Victor Industries with specific application details.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Special Notes
</div>
</td>
<td class="TableText">
<div align="center">*For best results, it is recommended to have a constant air supply of 120 psi
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

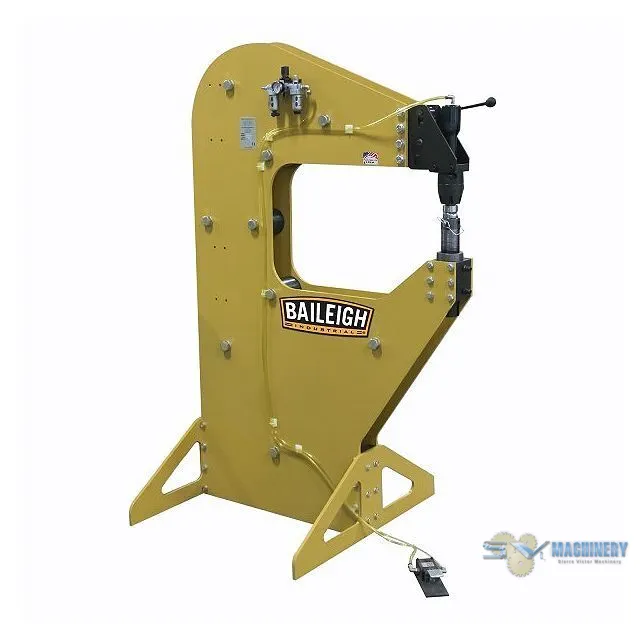

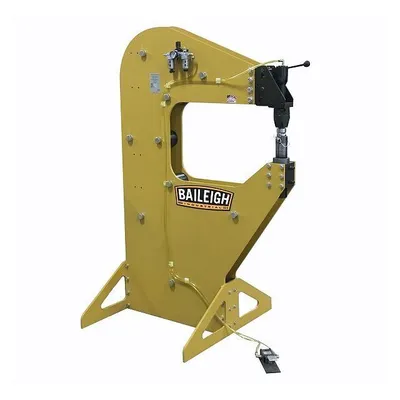

<li class="TableText">Shrink and stretch with air! The compact, <strong>USA-made</strong> PH-28A <strong>hits much harder</strong> than traditional pneumatic power hammers. You can even use a <strong>thumbnail shrinker die</strong> (included).</li>
<li><strong>28” throat</strong> can handle larger panels than the MH-19 can.</li>
<li>Stretches, shrinks, and planishes up to <strong>16 gauge</strong> mild steel.</li>
<li>Variable speed from <strong>0 to 1,000 beats</strong> per minute.</li>
<li>Runs on <strong>120 psi</strong> compressed air.</li>

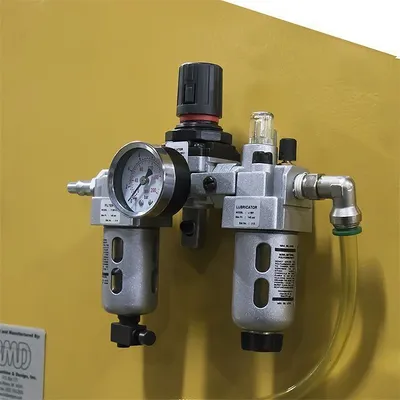

<li>Regulator on the side lets you control the airflow.</li>
<li>Air-powered system is <strong>much quieter</strong> than a mechanical machine.</li>
<li><strong>Foot pedal operation</strong> keeps your hands free to move the material.</li>
<li><strong>Quick-release handle</strong> on the front allows you lift the tool up and take the material out.</li>

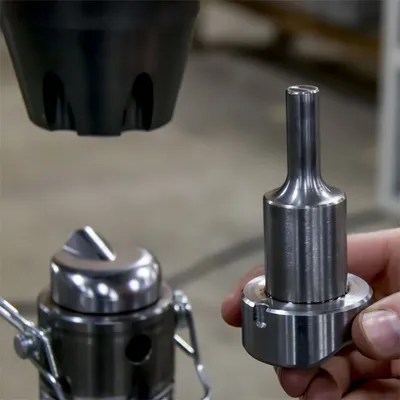

<li>Comes with <strong>7 tooling sets</strong>:
<ul>
<li>2.5” thumbnail shrinking dies.</li>
<li>2.5” master flat top die.</li>
<li>1” linear stretch die.</li>
<li>12”, 24”, and 36” radius dies.</li>
</ul>
</li>
<li><strong>Oiler system</strong> on the side can deliver oil directly to the tool for convenient maintenance.</li>
<li>You can add an optional <strong>planishing hammer attachment</strong> to the side to create an all-in-one machine.</li>
<li><strong>Small footprint</strong> is perfect for home shops or production facilities.</li>
<li><strong>Heavy 1/2” steel plate frame</strong> avoids flex and ensures that the machine’s force fully transfers to the material for high-quality results.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>This power hammer comes with <strong>lifetime technical support</strong> by phone from our team of experienced metalworkers.</li>
<li class="TableText"><strong>Recommended for:</strong> Startup automotive shops, metal shapers working on airplane parts, and metal artists. </li>
</ul>
<p><strong> EQUIPPED WITH:</strong>
</p>
<ul>
<li>2” Thumbnail Shrinking Dies</li>
<li>2.5” Master Flat Top Die</li>
<li>1” Linear Stretch Die</li>
<li>3” 36” Radius Die</li>
<li>3” 24” Radius Die</li>
<li>3” 12” Radius Die</li>
</ul>
