<p><b>SPECIFICATIONS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Return Speed</div></td>
<td width="257" class="TableText"><div align="center">.303" / sec.</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Motor</div></td>
<td width="257" class="TableText"><div align="center">5.25 hp</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Piston Head Diameter</div></td>
<td class="TableText"><div align="center">3.15" (Main), 1.77" (Side)</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Pump Speed</div></td>
<td width="257" class="TableText"><div align="center">1.85 gal/min</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Oil Capacity</div></td>
<td class="TableText"><div align="center">13 gal.</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Working Speed</div></td>
<td width="257" class="TableText"><div align="center">.32" / sec. (Main), .75" / sec. (Side)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Working Width</div></td>
<td class="TableText"><div align="center">41.3" (Main)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Maximum Capacity</div></td>
<td class="TableText"><div align="center">60 ton (Main), 24 ton (Side)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Cylinder Stroke</div></td>
<td class="TableText"><div align="center">11.8" (Main), 11.75" (Side)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Cylinder Movable</div></td>
<td class="TableText"><div align="center">Yes (Main only)</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Cylinder Diameter</div></td>
<td width="257" class="TableText"><div align="center">7.55" (Main), 3.95" (Side)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Distance From Table To Ram</div></td>
<td class="TableText"><div align="center">Min. 8" - Max. 38" (Main),<br>
Min. 9.84" - Max. 38.97" (Side)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Power</div></td>
<td class="TableText"><div align="center">220 Volt, Three Phase</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Shipping Weight</div></td>
<td class="TableText"><div align="center">2,960 lbs.</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Shipping Dimensions</div></td>
<td width="257" class="TableText"><div align="center">60" x 36" x 85"</div></td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES</b></p>

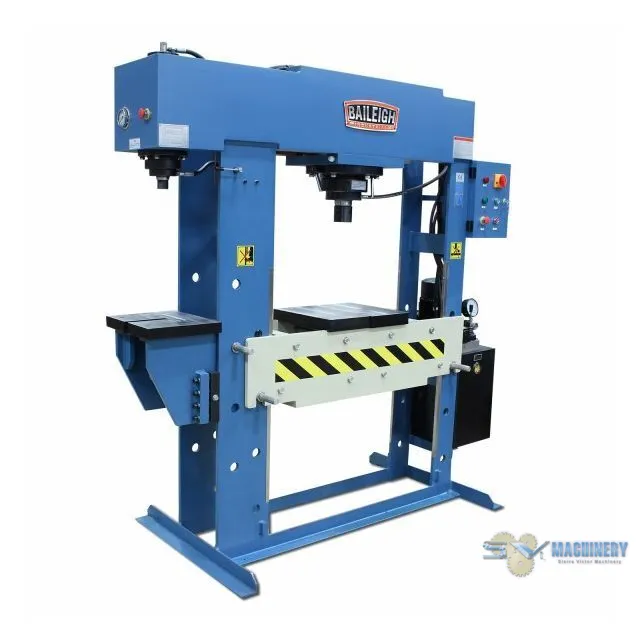

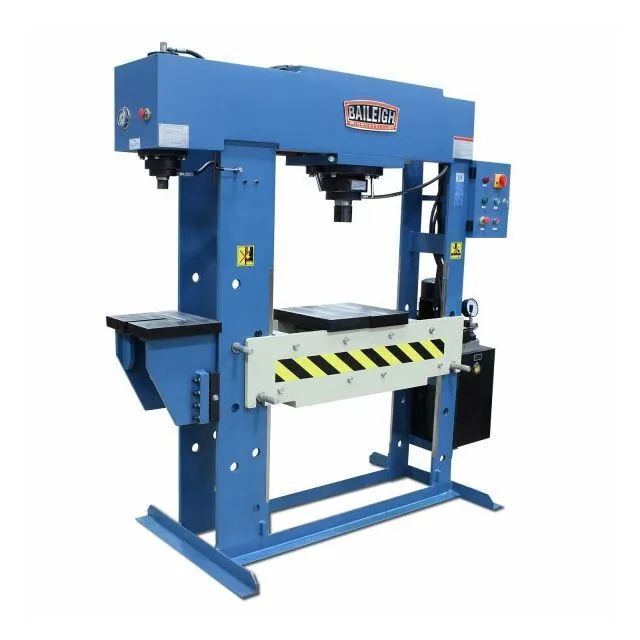

<ul><li> If you’ve outgrown your pneumatic press, this workshop 60-ton hydraulic press for sale gives you the extra power of a <strong>5.25 hp motor</strong> and the rigid accuracy of a <strong>fully-welded heavy steel plate frame</strong>. Another plus of the HSP-60M-C is the abilty to use a second 24 ton station with an open C-frame design. Both Baileigh hydraulic presses come in one compact design. </li><li>Unique<strong> two station design.</strong></li><li><strong>60-ton</strong> capacity on main press.</li><li><strong>24-ton</strong> capacity on side press.</li><li><strong>41.25”</strong> working width on main press</li><li><strong>7.5” cylinder moves left and right</strong> within the frame, ideal for off-center parts.</li><li>Controlled by <strong>piston-style</strong> hydraulic pump.</li><li>C Frame Hydraulic Press includes 2-piece <strong>V-block set</strong>.</li><li><strong>Pressure gauge</strong> comes standard on both presses.</li><li><strong>Welded steel structure</strong> withstands the machine’s full force without flexing.</li><li>Baileigh covers this hydraulic workshop press with a <strong>1-year parts warranty</strong> as well as <strong>lifetime technical support by phone</strong>.</li></ul>
