<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td class="TableText">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td class="TableText">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong><span class="TABLE_TEXT">BDB-919</span></strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center"><strong>STOCK #</strong>
</div>
</td>
<td class="TableText">
<div align="center"><span class="TableText"><strong>JT9-321378</strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Swing Over Bed (in)
</div>
</td>
<td class="TableText" width="257">
<div align="center">8-3/4
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Swing Over Cross Slide (in)
</div>
</td>
<td class="TableText" width="257">
<div align="center">5
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Distance Between Centers (in)
</div>
</td>
<td class="TableText">
<div align="center">18
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Bore (in)
</div>
</td>
<td class="TableText">
<div align="center">3/4
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Mount (TPI)
</div>
</td>
<td class="TableText">
<div align="center">1-1/2 x 8TPI
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Spindle Taper w/ Sleeve
</div>
</td>
<td class="TableText">
<div align="center">MT#3
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Number of Spindle Speeds
</div>
</td>
<td class="TableText">
<div align="center">6
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Range of Spindle Speeds (RPM)
</div>
</td>
<td class="TableText">
<div align="center">130-2000
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Number of Longtitudinal Feed Rates
</div>
</td>
<td class="TableText">
<div align="center">60
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Range of Longitudinal Feeds (IPR)
</div>
</td>
<td class="TableText">
<div align="center">0.0006-0.0368 in.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Number of Inch Threads
</div>
</td>
<td class="TableText">
<div align="center">27
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Range of Inch Threads (IPR)
</div>
</td>
<td class="TableText">
<div align="center">8 - 56
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Number of Metric Threads
</div>
</td>
<td class="TableText">
<div align="center">12
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Range of Metric Threads (mm)
</div>
</td>
<td class="TableText">
<div align="center">0.5 - 3.5
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Max Tool Size (in)
</div>
</td>
<td class="TableText">
<div align="center">1/2
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Compund Slide Travel (in)
</div>
</td>
<td class="TableText">
<div align="center">1-7/8
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Cross Slide Travel (in)
</div>
</td>
<td class="TableText">
<div align="center">4-1/4
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Carriage Travel (in)
</div>
</td>
<td class="TableText" width="257">
<div align="center">17.5
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Tailstock Spindle Travel (in)
</div>
</td>
<td class="TableText">
<div align="center">1-9/16
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Taper in Tailstock Spindle
</div>
</td>
<td class="TableText">
<div align="center">MT#2
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Steady Rest Capacity (in)
</div>
</td>
<td class="TableText">
<div align="center">1-3/4
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Follow Rest Capacity (in)
</div>
</td>
<td class="TableText" width="257">
<div align="center">1-3/4
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Width of Bed (in)
</div>
</td>
<td class="TableText" width="257">
<div align="center">4-1/2
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">3/4HP, 115V, Single Phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Net Weight
</div>
</td>
<td class="TableText">
<div align="center">250 lbs.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Gross Weight (lbs.)
</div>
</td>
<td class="TableText">
<div align="center">293 lbs.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Overall Dimensions (in. LxWxH)
</div>
</td>
<td class="TableText">
<div align="center">41" x 22" x 20"
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>
<li>The BDB-919 benchtop lathe is perfect for the most versatile shops. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings, the BDB-919 delivers the smooth operation and rigidity needed to craft professional pieces.</li>
<li>Induction hardened and ground bedway</li>
<li>Spindle supported by precision tapered roller bearings</li>
<li>Safety on/off switch</li>
<li>Emergency Stop within easy reach of the Operator</li>
<li>Chuck Guard</li>
<li>Quick change gearbox provides wide range of inch and metric threads</li>
<li>Power longitudinal feed allows threading and reverse threading</li>

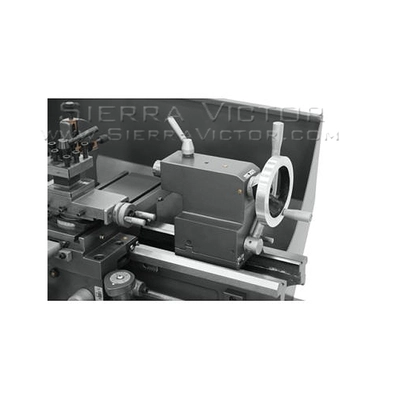

<li>Quick locking tailstock</li>
<li>Standard 1-1/2" x 8 TPI spindle mount allows for many aftermarket accessories</li>
<li>Reversing switch for added versatility</li>
<li>Full length splash guard</li>
<li>Backlash adjustments provided throughout the carriage</li>
</ul>
<p><strong>STANDARD ACCESSORIES:</strong>
</p>
<ul>
<li>4" 3-Jaw Chuck</li>
<li>7-1/2" 4-Jaw Chuck</li>
<li>7" Face Plate</li>
<li>Steady and Follow Rest</li>
<li>4-Way Toolpost</li>
<li>Set of Tools</li>
<li>MT-2 & MT-3 Centers</li>

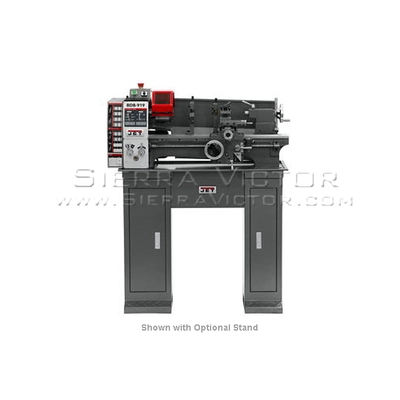

<li>**Some images show lathe with optional stand, p/n 321375</li>
</ul>
