<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="120" rowspan="5" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>CAPACITY</strong></span>
</div>
</td>
<td bgcolor="#cccccc" width="175" class="TableText">
<div align="center">Max sheet length
</div>
</td>
<td width="217" class="TableText">
<div align="center">10.49 ft
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max Thickness Capacity <br>
Full Length
</div>
</td>
<td class="TableText">
<div align="center">0.078 in. (14g) Steel
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Mild sheet
</div>
</td>
<td class="TableText">
<div align="center">0.078 in. (14g)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Stainless
</div>
</td>
<td class="TableText">
<div align="center">0.047 in. (18g)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Aluminum
</div>
</td>
<td class="TableText">
<div align="center"> 0.118 in. (11g)
</div>
</td>
</tr>
<tr>
<td rowspan="3" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>CLAMPING BEAM <br>
(Z-AXIS)</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Drive Power<br>
(SEW AC Motor w/Encoder)
</div>
</td>
<td class="TableText">
<div align="center">2 HP
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Opening Height (No tools)
</div>
</td>
<td class="TableText">
<div align="center">6.3 in
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Clamping Speed
</div>
</td>
<td class="TableText">
<div align="center">2.36 in/sec
</div>
</td>
</tr>
<tr>
<td rowspan="3" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>FOLDING BEAM <br>
(Y-AXIS)</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Drive Power<br>
(SEW AC Motor w/Encoder)
</div>
</td>
<td class="TableText">
<div align="center">4 HP
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Folding Angle
</div>
</td>
<td class="TableText">
<div align="center">0 - 150°
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Folding Speed
</div>
</td>
<td class="TableText">
<div align="center">65°/sec
</div>
</td>
</tr>
<tr>
<td rowspan="2" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>FOLDING BEAM ADJUSTMENT <br>
(A-AXIS)</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Adjustment Height
</div>
</td>
<td class="TableText">

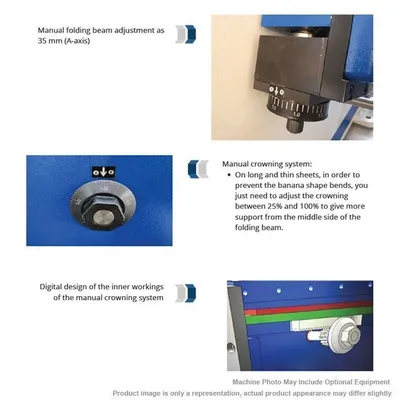

<div align="center">1.37 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Adjustment
</div>
</td>
<td class="TableText">
<div align="center">Manual
</div>
</td>
</tr>
<tr>
<td rowspan="3" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>1M BACK GAUGE SYSTEM (X-AXIS)</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Drive Power<br>
(SEW AC Motor w/Encoder)
</div>
</td>
<td class="TableText">
<div align="center">.53 HP
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Speed
</div>
</td>
<td class="TableText">
<div align="center">9.8 in/sec
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Min/Max Gauging
</div>
</td>
<td class="TableText">
<div align="center">0.078 in. / 39.37 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>CLAMPING BEAM ROTATION (C-AXIS)</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Rotational Speed
</div>
</td>
<td class="TableText">
<div align="center">20°/sec
</div>
</td>
</tr>
<tr>
<td width="120" rowspan="2" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>GENERAL</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Dimensions (W x L x H)
</div>
</td>
<td class="TableText">
<div align="center"> 90.55 / 175.19 / 74.80 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="175" class="TableText">
<div align="center">Weight:
</div>
</td>
<td width="217" class="TableText">
<div align="center">10,362 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR – Parts
</strong>
<strong></strong></p>
<p><strong></strong></p>
<!--StartFragment-->

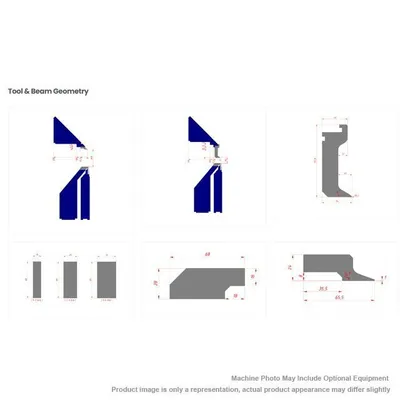

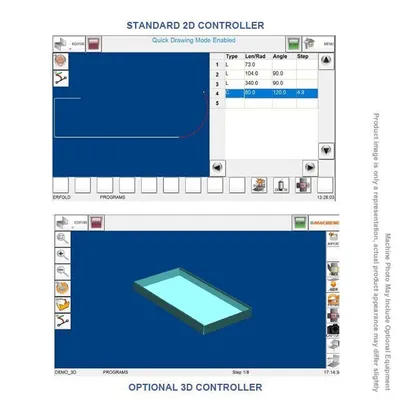

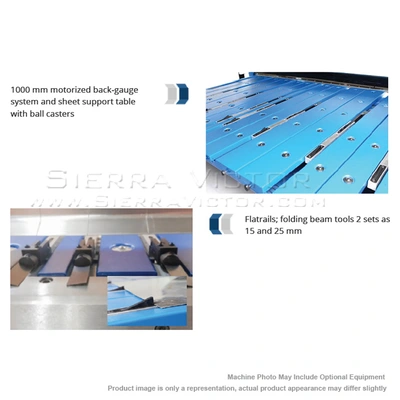

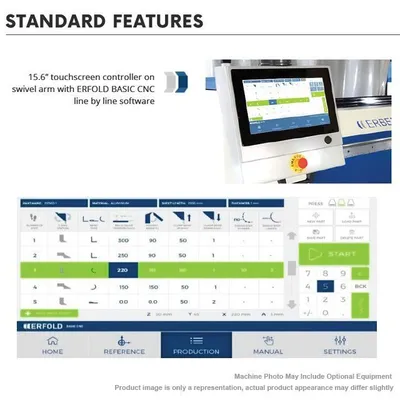

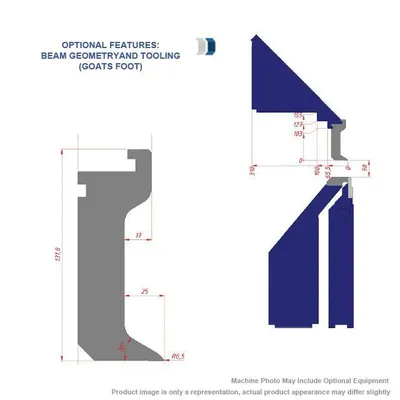

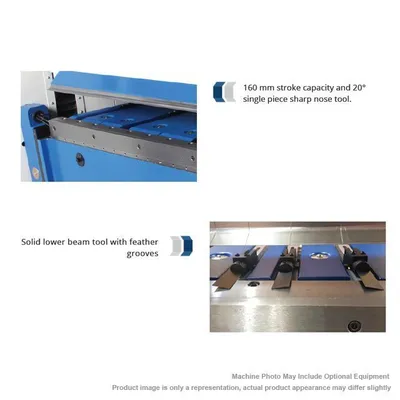

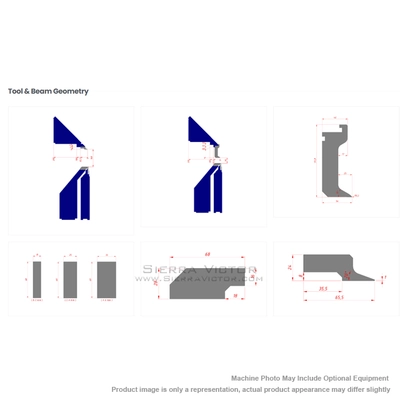

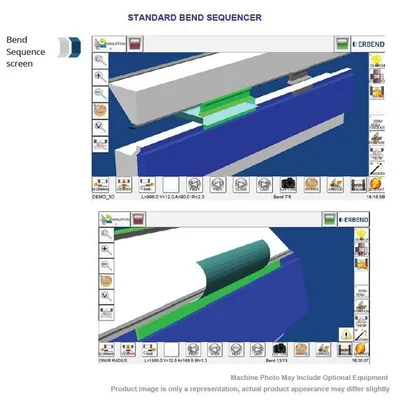

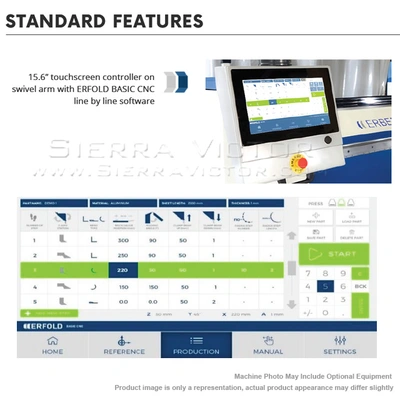

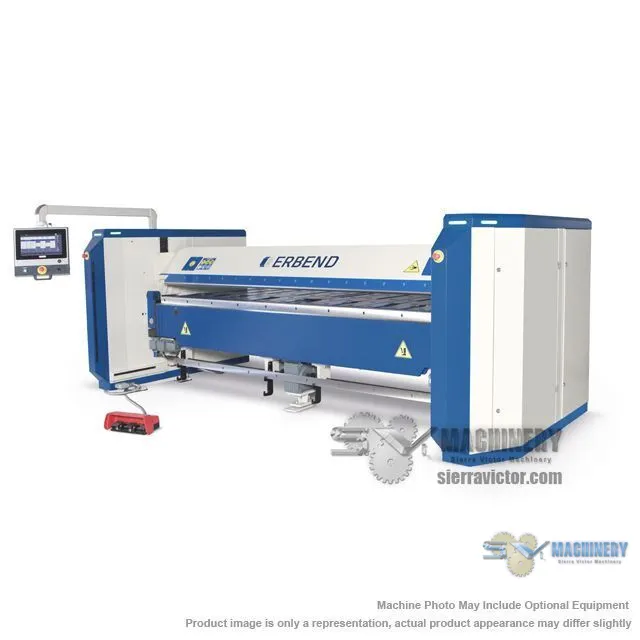

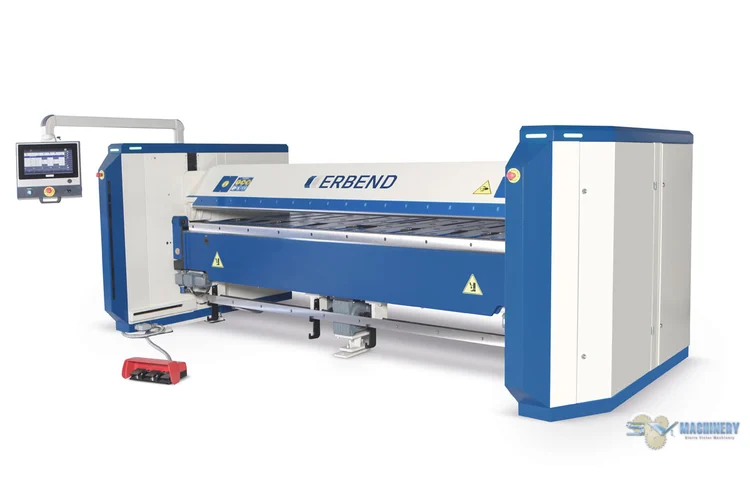

<ul><li>Erbend is a new option of sheet metal folding equipment to the metal fabrication marketplace in North America. These machines feature advanced technology, a sleek design and easy operation, making Erbend an incomparable folding machine.</li><li>AC motorized drive X,Y, Z (clamping, folding, back gauge)</li><li>15.6 in. Touchscreen controller on swivel arm with ERFOLD BASIC CNC line by line and 2D software control</li><li>Flat rail bottom beam tool for feather groves</li><li>Clamping beam pen height 6.29 in.</li><li>Manual folding beam adjustment (1.37 in.) (A Axis)</li><li>45 Deg. Clamping beam geometry with 30 Deg./R1 sharp nose clamping beam tools</li><li>Folding beam tools 2 sets: .59 in. and .98 in.</li><li>59 inch motorized back gauge + sheet support table with ball casters</li><li>Front light barriers</li><li>LED Function Lights (red, green, and blue)</li><li>3 switch foot pedal</li><li>480V 3-PH ( We can offer transformers for any other voltage POR )</li><li><strong>On Site Training - Please call for price</strong></li></ul>
