<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#333333">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td class="Title_white_bold" width="257" valign="middle" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>DC-700NC</strong></span>
</div>
</td>
</tr>
<tr>
<td rowspan="2" class="TableText" width="116" valign="middle" bgcolor="#cccccc">
<div align="center">Cutting Capacity
</div>
</td>
<td class="TableText" width="139" valign="middle" bgcolor="#cccccc">
<div align="center">Round:
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">27"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Rectangle: (W x H)
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">31" x 27” (800mm x 700mm)
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Saw Blade - Width x Length
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">2.625" x 325"
</div>
</td>
</tr>
<tr>
<td rowspan="3" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band Drive
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Motor HP
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">15 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band Speed
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">52-275 fpm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band Tension
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Hydraulic
</div>
</td>
</tr>
<tr>
<td rowspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Hydraulic System
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Motor HP
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">3 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Reservoir Size
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">34 Gallon
</div>
</td>
</tr>
<tr>
<td rowspan="3" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Coolant System
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Coolant System
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Flood
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Motor HP
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">1/4 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Reservoir Size
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">61 Gallon
</div>
</td>
</tr>
<tr>
<td rowspan="3" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Indexer
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Length per Stroke
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">15.75"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Maximum Index <br>
Strokes Length
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">141"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Remnant Length
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">9" (non-bundle)
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Voltage Requirement
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">230V-60Hz-3ph, Wye configuration
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Total Amp Draw (FLA)
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">61 Amps
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Floor Space Dimensions W x L X H
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">154" x 89" x 90"
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Material Pass Height
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">31.5"
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine Weight
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">15,650 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li> Machine Capacity: w 31" x h 27” (800mm x 700mm) </li>
<li> Machine Capacity Round: 27" (700mm) </li>
<li> Production Level: High </li>
<li><strong>Standard Features: Programmable Logic Controller (PLC) for All Machine Functions, Hydraulic Indexing and Vices with Variable Vise Pressure Control</strong></li>

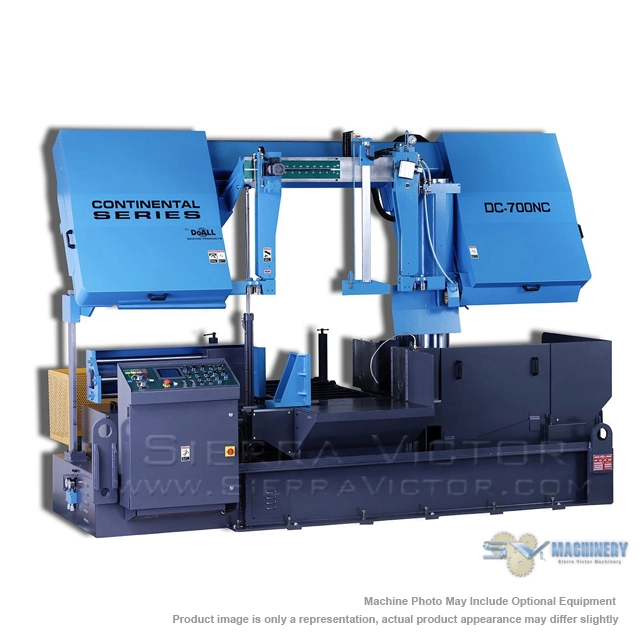

<li> The DC-700NC Continental Series™ band saw from DoALL is the industry benchmark in automated production for automotive and heavy duty machinery parts. </li>
<li>
Streamline production and improve operational efficiencies with a variety of standard equipment, as well as optional extras to custom tailor your next band saw machine to exactly what you require. Nothing more, nothing less. </li>

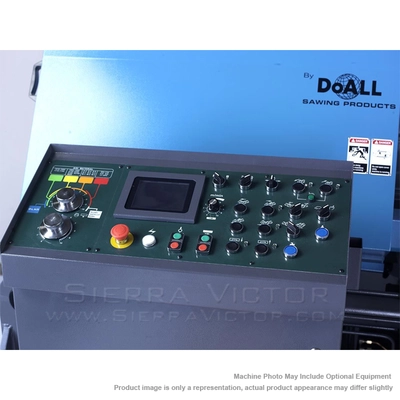

<li><strong>Touch Screen Control</strong>: Easy operator input. 20 Job storage with batching capabilities. Control is multi-lingual for today's workforce. Will display an error message when an incorrect entry is made. Easy switching between imperial or metric units.</li>

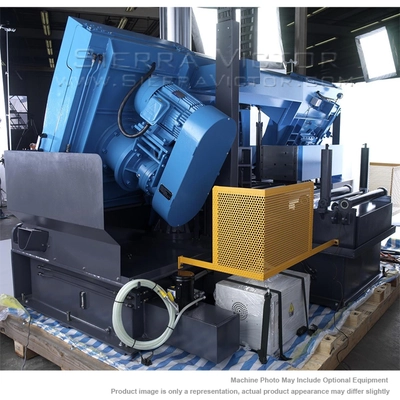

<li><strong>High-Efficiency Transmission: </strong>High-efficiency worm gear box built to decrease wear and transmit full torque to the saw blade. Double wide “V” belt to avoid slipping, transmitting full motor power to the transmission.</li>
<li><strong>Hydraulic Chip Conveyor: </strong>Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.</li>
<li><strong>Coolant Thru Carbide Faced Saw Guide Inserts: </strong>Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.</li>
<li><strong>Efficiently Designed Hydraulic System: </strong>Engineered low-pressure system allows for a smoother and quieter operation which aids in longer component life and easy accessibility for maintenance</li>
<li><strong>Band Wheels: </strong>30 Degree lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.</li>
<li><strong>Underslung Indexer System: </strong>Reduces friction when indexing heavier or rough surface material by the use of rollers allowing for smoother material movements.</li>

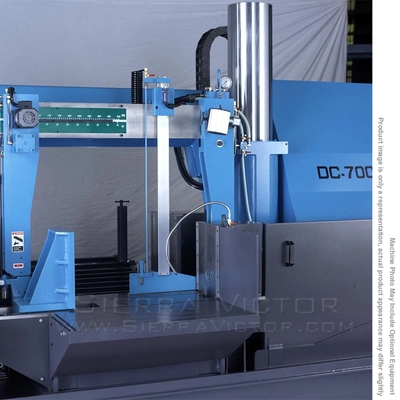

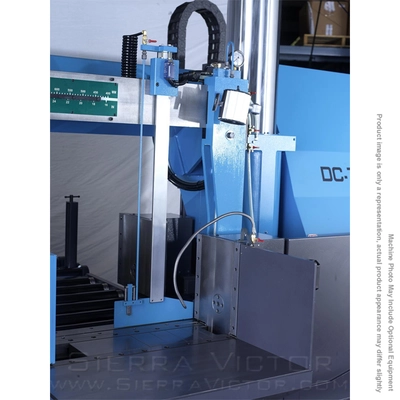

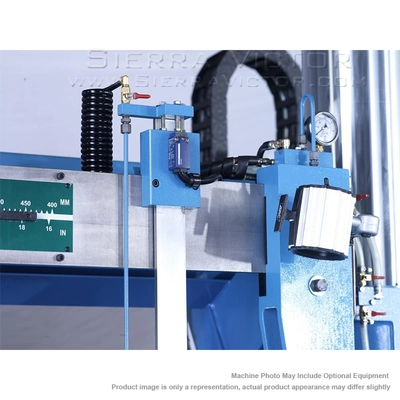

<li><strong>Movable Saw Guide Arm: </strong>Electrical driven movable guide arm with hydraulic lock system aids the operator in the placement of the arm close to the cut minimizes blade deflection</li>
<li><strong>Hydraulic Blade Tension: </strong>Eliminates possible error of over/under tightening the band for maximum cutting rates and band life.</li>
<li><strong>Back-up Bearing/Inserts: </strong>Supports the back of the saw band allowing the creation of band preload which aids in reducing vibration while cutting and increasing blade life.</li>

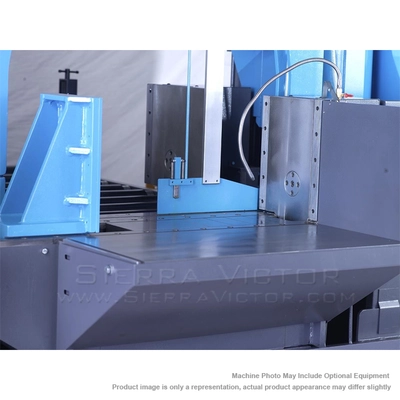

<li><strong>Retractable Shuttle Type Index Vise: </strong>Both jaws retract when the vise is opened to accommodate the movement of crooked stock increasing accuracy and repeatability.</li>
<li><strong>Magnetic Scale for Indexer: </strong>The scale which creates indexing accuracy is protected from dirt and oil build up insuring its long life.</li>

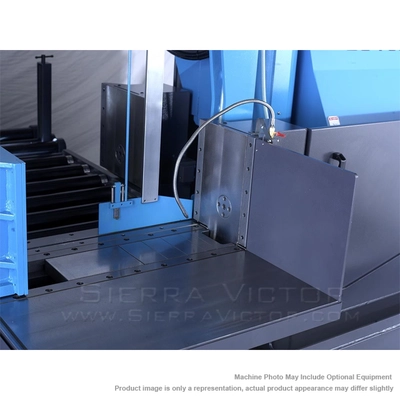

<li><strong>Nesting Fixtures: </strong>Plug-n-play vertical hold-down clamp assemblies allow the operator to perform multiple-piece cutting to increase productivity.</li>
<li><strong>Warranty: </strong>One-year parts and service subject to the terms and conditions. An optional ten-year warranty is available. DoALL Cut Above 10 Year Warranty </li>
</ul>
<p><strong>STANDARD EQUIPMENT:</strong>
</p>
<ul>
<li>Programmable Logic Controller for all machine functions</li>
<li>Feed rate/feed force saw head control</li>
<li>Infinite band speed controlled variable frequency drive</li>
<li>Hydraulic retractable shuttle vice material indexer on chrome rails</li>
<li>Rapid and creep speed index vice control</li>
<li>Full stroke vices with outboard front vise</li>
<li>Variable vice pressure control</li>
<li>Vertical hydraulic cylinders with hold down fixtures</li>
<li>Hydraulic set, zero clearance, coolant through, carbide faced saw guide inserts with lead in rollers</li>
<li>Adjustable power driven band cleaning brushes with coolant flush line attached</li>
<li>Halogen work light</li>
<li>Electric motor driven movable saw guide arm</li>
<li>Blade shock proof device</li>
<li>Flushing hose for machine wash down and auxiliary coolant nozzles</li>
<li>Hydraulic band tension</li>
<li>Hydraulic adjustable speed auger design chip conveyor</li>
<li>One shot column lubricator</li>
<li>Saw band break/stall motion detector shut off switch</li>
<li>Band door interlocks</li>
<li>Operation and parts manuals on USB stick</li>
<li>One 6.5 ft. (2M) idler input conveyor</li>
<li>Maintenance tool kit</li>
<li>Complimentary DoALL Cutting Fluids package</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>10 ft. idler conveyor</li>
<li>5 ft. idler conveyor with filler plates</li>
<li>Out of square detection</li>
<li>Additional USB stick of manuals</li>
<li>Laser line</li>
<li>A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards</li>
<li>DoALL Cut Above 10 Year Warranty</li>
</ul>
