<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#333333">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td class="Title_white_bold" width="257" valign="middle" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>DC-560NC</strong></span>
</div>
</td>
</tr>
<tr>
<td rowspan="2" class="TableText" width="116" valign="middle" bgcolor="#cccccc">
<div align="center">Cutting Capacity
</div>
</td>
<td class="TableText" width="139" valign="middle" bgcolor="#cccccc">
<div align="center">Round:
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">22" (560mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Rectangle (W x H)
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">24" x 22" (610mm x 560mm)
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Saw Blade - Width x Length
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">2" x 260"
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band Drive - Motor HP
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">10 Hp
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band Drive - Band Speed
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">52-430 fpm
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band Drive - Band Tension
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Hydraulic
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Hydraulic System - Motor Hp
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">3 Hp
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Hydraulic System - Reservoir Size
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">34 Gallon
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Coolant System
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Flood coolant
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Coolant System - Motor HP
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">1/4 HP
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Coolant System - Reservoir Size
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">37 Gallons
</div>
</td>
</tr>
<tr>
<td rowspan="3" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Indexer
</div>
</td>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Length per Stroke
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">15.75"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Maximum Index<br>
Strokes Length
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">141.75"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Remnant Length
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">7.875" (non-bundle)
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Voltage Requirement
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">230V-60Hz-3ph, Wye configuration
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Total Amp Draw (FLA)
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">46 Amps
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Floor Space Dimensions W x L X H
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">127" x 84" x 85"
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Material Pass Height
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">33.5"
</div>
</td>
</tr>
<tr>
<td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine Weight
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">9,923 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li> Machine Capacity: w 24" x h 22" (610mm x 560mm) </li>
<li> Machine Capacity Round: 22" (560mm) </li>
<li> Production Level: High </li>
<li><strong>Standard Features: High Efficiency Transmission, Touch Screen Controls and an Underslung Indexer System</strong></li>

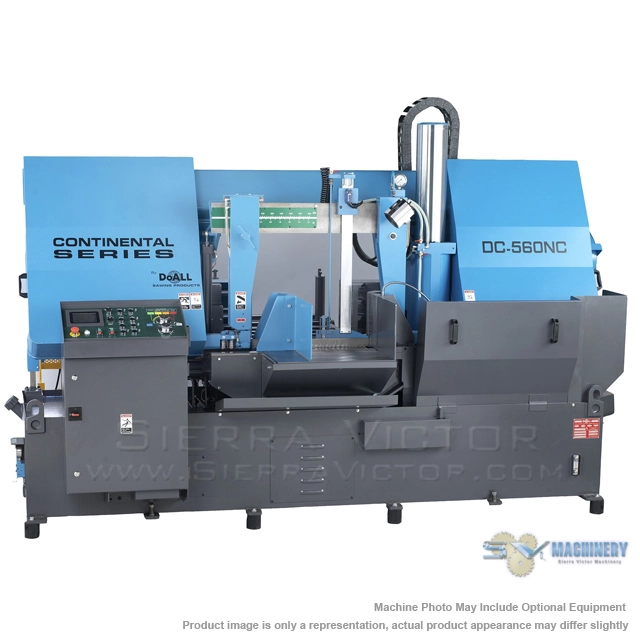

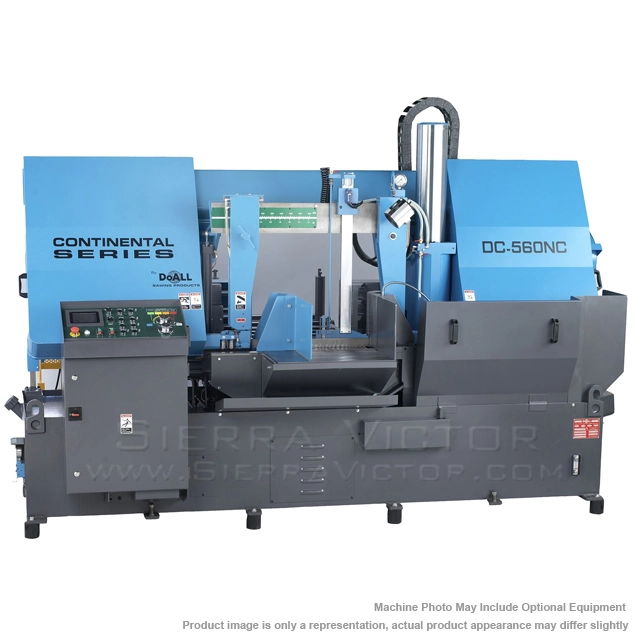

<li> The DC-560NC Continental Series by DoALL is designed for cutting a wide range of metals on a production basis. It is fully automated and controlled by a programmable logic controller (PLC) with up to 20 pre-defined parameters – including batching -- to increase productivity and reduce the cost-per-production unit. </li>
<li> All operations are hydraulically driven to improve accuracy and service life of the band saw. The DoALL Continental Series has been manufactured and sold for many years, making it a dependable and reliable machine for the most demanding environments. </li>
<li><strong>Touch Screen Control: </strong>Easy operator input. 20 Job storage with batching capabilities. Control is multi-lingual for today's workforce. Will display error message when incorrect entry is made. Easy switching between imperial or metric units.<br>
</li>
<li><strong>High-Efficiency Transmission: </strong>High-efficiency worm gear box built to decrease wear and transmit full torque to the saw blade. Double wide “V” belt to avoid slipping, transmitting full motor power to the transmission.<br>
</li>

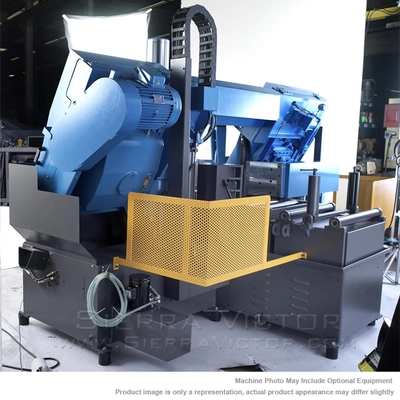

<li><strong>Hydraulic Chip Conveyor: </strong>Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.<br>
</li>

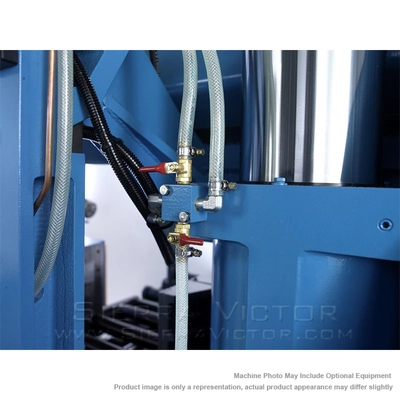

<li><strong>Coolant Thru Carbide Faced Saw Guide Inserts: </strong>Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.<br>
</li>
<li><strong>Efficiently Designed Hydraulic System: </strong>Engineered low-pressure system allows for a smoother and quieter operation which aids in longer component life and easy accessibility for maintenance.<br>
</li>
<li><strong>Band Wheels: </strong>30 Degree lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.<br>
</li>

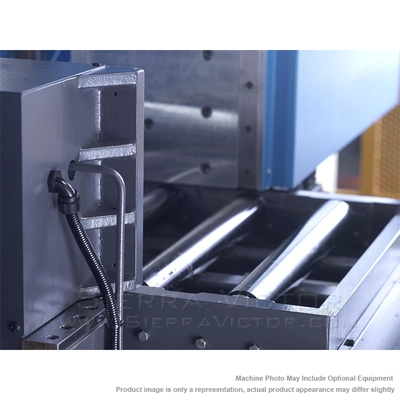

<li><strong>Underslung Indexer System: </strong>Reduces friction when indexing heavier or rough surface material by the use of rollers allowing for smoother material movements.<br>
</li>

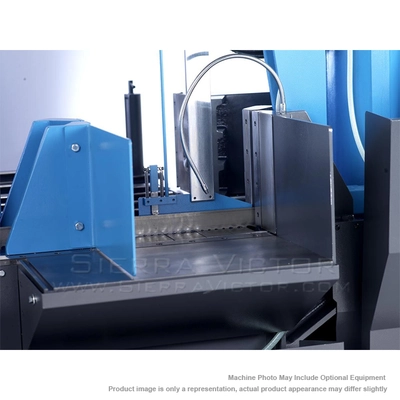

<li><strong>Multi-step Full Stroke Vises with Split Front Vise and Variable Vise Pressure</strong>: Shorter hydraulic cylinders reduce the overall footprint combining the advantage of rack and full stroke. Split front vice clamps on both sides of the blade reducing vibration and remnant length. Variable Vise Pressure will prevent distortion in thin wall tubing and extrusions.<br>
</li>
<li><strong>Hydraulic Blade Tension: </strong>Eliminates possible error of over/under-tightening the band for maximum cutting rates and band life.<br>
</li>

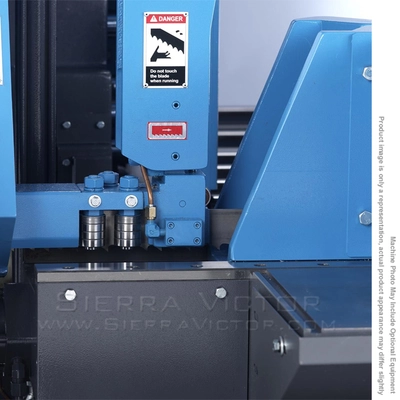

<li><strong>Back-up Bearing/Inserts</strong>: Supports the back of the saw band allowing the creation of band preload which aids in reducing vibration while cutting and increasing blade life.<br>
</li>
<li><strong>Retractable Shuttle Type Index Vise</strong>: Both jaws retract when vise is opened to accommodate the movement of crooked stock increasing accuracy and repeatability.<br>
</li>
<li><strong>Magnetic Scale for Indexer: </strong>The scale which creates indexing accuracy is protected from dirt and oil build up insuring its long life.<br>
</li>
<li><strong>Nesting Fixtures: </strong>Plug-n-play vertical hold-down clamp assemblies allow the operator to perform multiple-piece cutting to increase productivity.<br>
</li>
<li><strong>Warranty: </strong>One-year parts and service subject to the terms and conditions. 10-year manufacturer’s warranty available (Cut Above Lifetime Warranty).</li>
</ul>
<p><strong>STANDARD EQUIPMENT:</strong>
</p>
<ul>
<li>Programmable Logic Controller for all machine functions</li>
<li>Feed rate/feed force saw head control</li>
<li>Infinite band speed controlled variable frequency drive</li>
<li>Hydraulic retractable shuttle vice material indexer on chrome rails</li>
<li>Rapid and creep speed index vice control</li>
<li>Multi step full stroke cylinder with a split front vice clamping fore and aft of the sawblade</li>
<li>Variable vice pressure control</li>
<li>Vertical hydraulic cylinders with hold down fixtures</li>
<li>Hydraulic set, zero clearance, coolant through, carbide faced saw guide inserts with lead in rollers</li>
<li>Adjustable power driven band cleaning brushes with coolant flush line attached</li>
<li>Halogen work light</li>
<li>Blade shock proof device</li>
<li>Flushing hose for machine wash down and auxiliary coolant nozzles</li>
<li>Hydraulic band tension</li>
<li>Hydraulic adjustable speed auger design chip conveyor</li>
<li>Saw band break/stall motion detector shut off switch</li>
<li>Band door interlocks</li>
<li>Operation and parts manuals on USB stick</li>
<li>One 6.5 ft. (2M) idler input conveyor</li>
<li>Maintenance tool kit</li>
<li>Complimentary DoALL Cutting Fluids package</li>
<li>One (1) complimentary DoALL Bi Metal saw blade</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>10 ft Medium-duty idler conveyor 24" between frames. Roller capacity 850 Ibs</li>
<li>5 ft Medium-duty idler conveyor 24" between frames. Roller capacity 850 Ibs</li>
<li>Out of square detection</li>
<li>Additional USB stick of manuals</li>
<li>Laser line</li>
<li>A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards</li>
<li>DoALL Cut Above 10 Year Warranty Investment</li>
</ul>
