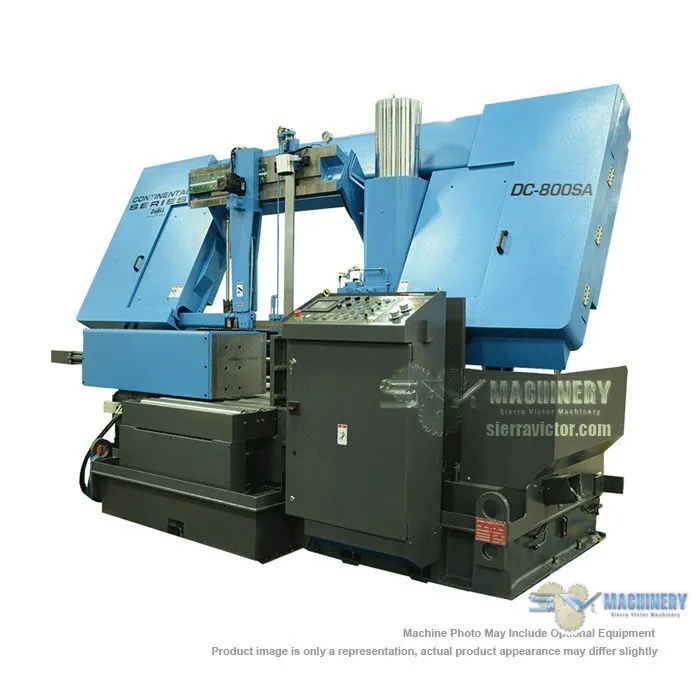

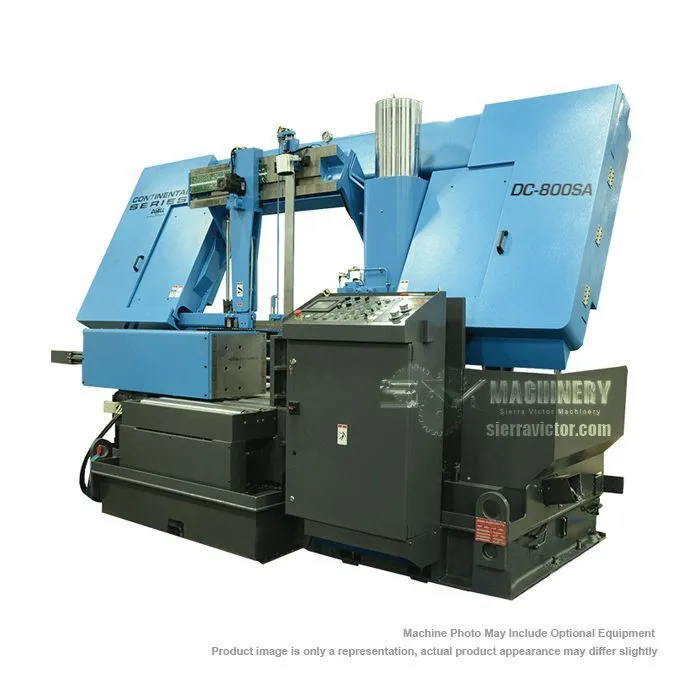

DOALL DC-800SA 31.5 in. Semi-Automatic Bandsaw

<!--StartFragment--> <ul><li><strong>Standard Features: 15 HP Band Drive Motor, Hydraulic Shuttle Roller Table and a Programmable Logic Controller for All Machine Functions</strong></li><li>The DC-800SA Semi-Automatic Continental Series high production, horizontal band saw by DoALL is designed for cutting a wide range of metals on a production basis.<br></li><li>If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice for reliable and long-lasting performance.<br></li><li>Once the desired feed rate, blade speed and initial vise opening is set on the Mitsubishi PLC -- a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut.</li><li><strong>Push Button Control Panel:&nbsp;</strong>Ergonomically placed, user friendly push button control panel</li><li><strong>High-Efficiency Transmission:&nbsp;</strong>High-efficiency planetary gear box built to decrease wear and transmit full torque to the saw blade.</li><li><strong>Hydraulic Chip Conveyor:&nbsp;</strong>Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.</li><li><strong>Coolant Thru Carbide Faced Saw Guide Inserts:&nbsp;</strong>Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.</li><li><strong>Efficiently Designed Hydraulic System:&nbsp;</strong>Engineered low pressure system allows for a smoother and quieter operation which aids in longer component life and easy accessibility for maintenance.</li><li><strong>Band Wheels:&nbsp;</strong>28 Degree lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.</li><li><strong>Material Positioner:&nbsp;</strong>Hydraulic shuttle roller table assist's operator in positioning material which decreases setup time.</li><li><strong>Movable Saw Guide Arm:&nbsp;</strong>Electrical driven movable guide arm with hydraulic lock system aids the operator in placement of the arm close to the cut to minimize blade deflection.</li><li><strong>Hydraulic Blade Tension:&nbsp;</strong>Hydraulically driven lever type design eliminates possible error of over/under tightening the band for maximum cutting rates and band life.</li><li><strong>Back-up Bearing/Inserts:&nbsp;</strong>Supports the back of the saw band allowing the creation of band preload which aids in reducing vibration while cutting and increasing blade life.</li><li><strong>Warranty:&nbsp;</strong>One year parts and service subject to the terms and conditions. 10 year manufacturer’s warranty available (DoALL Cut Above 10 Year Warranty).</li></ul> <p><strong>STANDARD EQUIPMENT:</strong></p> <ul><li>Programmable Logic Controller (PLC) for all machine functions</li><li>Feed rate/feed force saw head control</li><li>Infinite band speed controlled variable frequency drive</li><li>Hydraulic retractable shuttle roller table for material</li><li>positioning with rapid and creep speed control</li><li>Full stroke vices with outboard front vise</li><li>Variable vice pressure control</li><li>Hydraulic set, zero clearance, coolant through, carbide faced saw guide inserts with lead in rollers</li><li>Adjustable power driven band cleaning brushes with coolant flush line attached</li><li>Halogen work light</li><li>Electric motor driven movable saw guide arm</li><li>Blade shock proof device</li><li>Flushing hose for machine wash down and auxiliary coolant nozzles</li><li>Hydraulic band tension</li><li>Hydraulic adjustable speed auger design chip conveyor</li><li>One shot column lubricator</li><li>Saw band break/stall motion detector shut off switch</li><li>Band door interlocks</li><li>Operation and parts manuals on USB stick</li><li>One 6.5 ft. (2M) idler input conveyor</li><li>Maintenance tool kit</li><li>Complimentary DoALL Cutting Fluids package</li><li>One (1) complimentary DoALL Bi Metal saw blade</li></ul> <!--EndFragment-->
