U.S. INDUSTRIAL USHI-90T-DO-XT 90 Ton Hydraulic Ironworker w/20" Extended Punch Throat

U.S. INDUSTRIAL USHI-90T-DO-XT 90 Ton Hydraulic Ironworker w/20" Extended Punch Throat

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Ironworkers
Manufacturer:
US INDUSTRIAL
Model:
USHI-90T-DO-XT
Condition:
Build To Order
Stock #:
USHI-90T-DO-XT
Status:
For Sale

Description

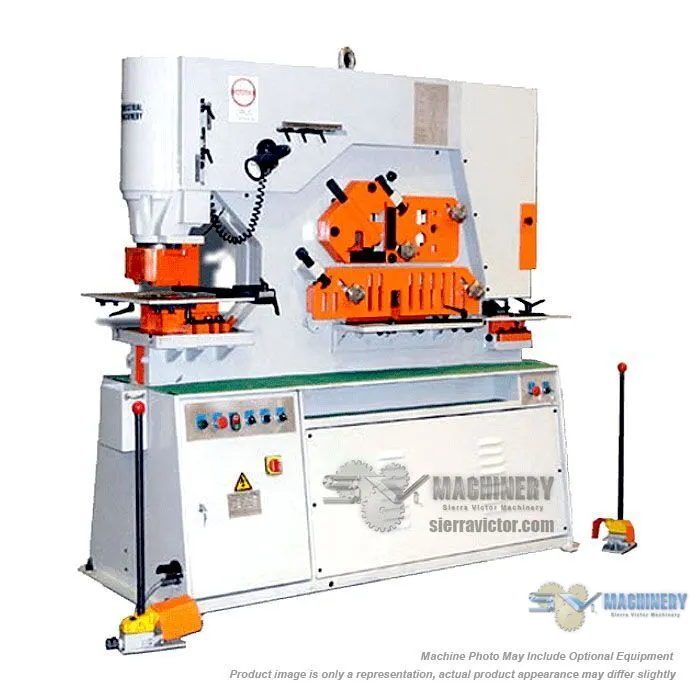

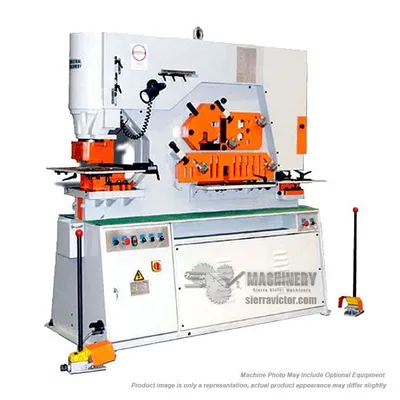

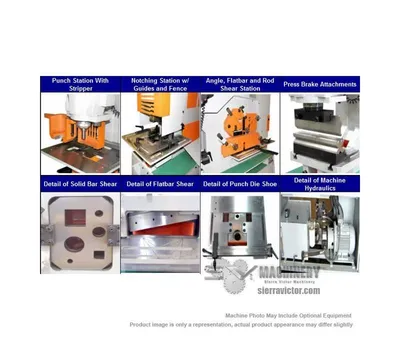

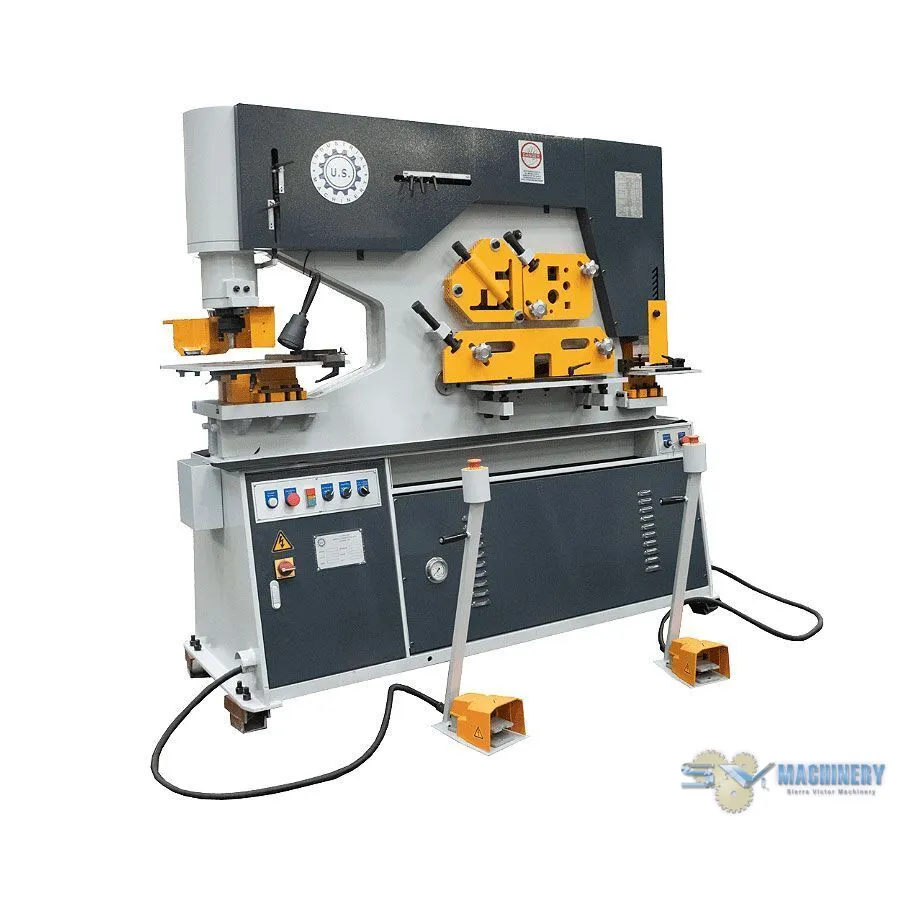

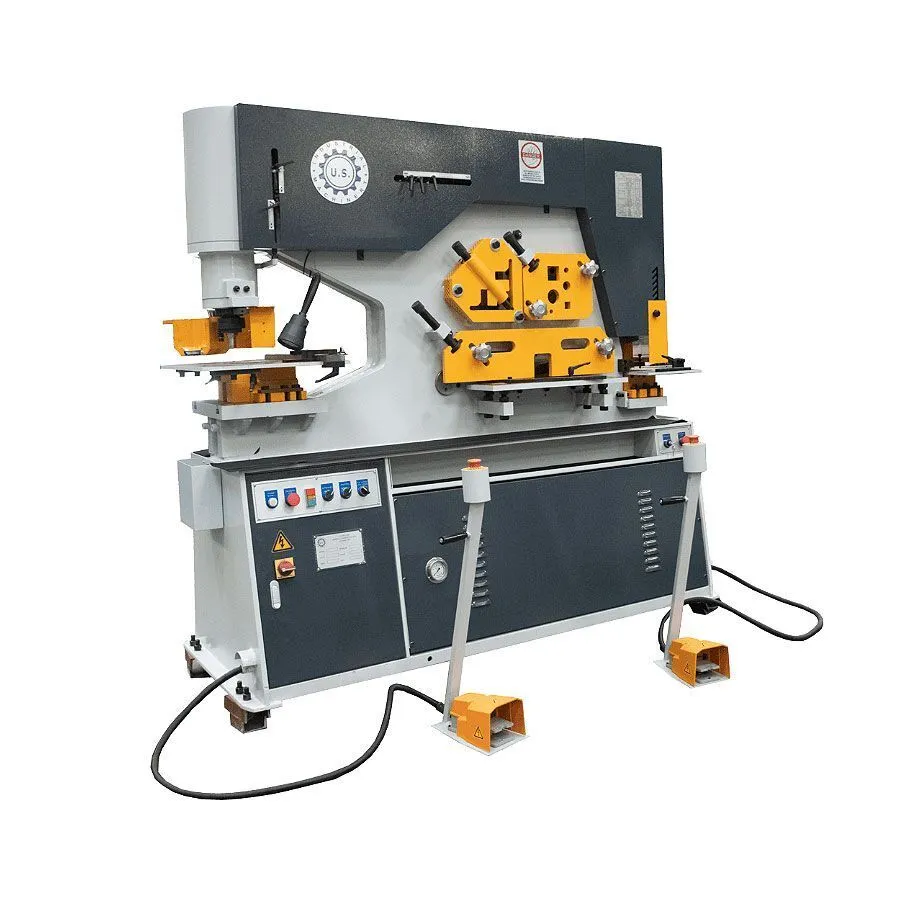

U.S. INDUSTRIAL USHI-90T-DO-XT Hydraulic Ironworker w/20" Standard Punch Throat has a punch tonnage of 90 Tons. Five workstations: punch, plate shear, angle shear, rod shear notcher, plus press brake attachmentHas a 10 HP motor, 3-phase with 220V or 440V.

Punch Tonnage90 T81,646.7 kg
Punching Thickness0.75"19.05 mm
Punching Diameter1-1/4 in.1-1/4 in.
Flat Bar ShearMax. Thickness 14 W x 3/4 Thick / Max. Length 18 W x 5/8 in. ThickMax. Thickness 14 W x 3/4 Thick / Max. Length 18 W x 5/8 in. Thick
Flat Bar Shear Length19"482.6 mm
Angle Shear 90°5-1/2 x 5-1/2 x 1/2 in.5-1/2 x 5-1/2 x 1/2 in.
Angle Shear 45°2 x 2 x 3/8 in.2 x 2 x 3/8 in.
Round Bar Shear2 in.2 in.
Square Bar Shear2 in.2 in.
NotcherThickness 1/2 x Width 2-1/4 x Depth 4 in.Thickness 1/2 x Width 2-1/4 x Depth 4 in.
Throat Depth20"508 mm
Stroke Length0 - 3-1/8 in.0 - 3-1/8 in.
Motor10 HP10 HP
Electrics220v or 440v, 3-phase (Specify)220v or 440v, 3-phase (Specify)
Oil Capacity/Reservoir25 gal94.6 L
Dimensions73 x 35 x 74 in.73 x 35 x 74 in.
Weight5,260 lbs.5,260 lbs.

* With squaring arm removed
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

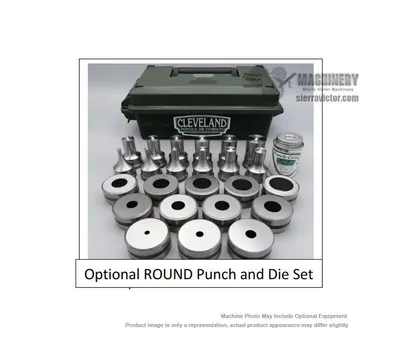

UPIW1500 - Round Punch and Die Set for 66 and 90 Ton Models
UPIW1501 - Round Punch and Die Set for 125 and 155 Ton Models
UPIW1502 - Pipe Notcher Housing Assembly
UPIW1503 - 1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1504 - 3/4" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1505 - 1" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1506 - 1-1/4" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1507 - 1-1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1508 - 2" Ironworker Pipe Notching Die for Schedule 40 Pipe
