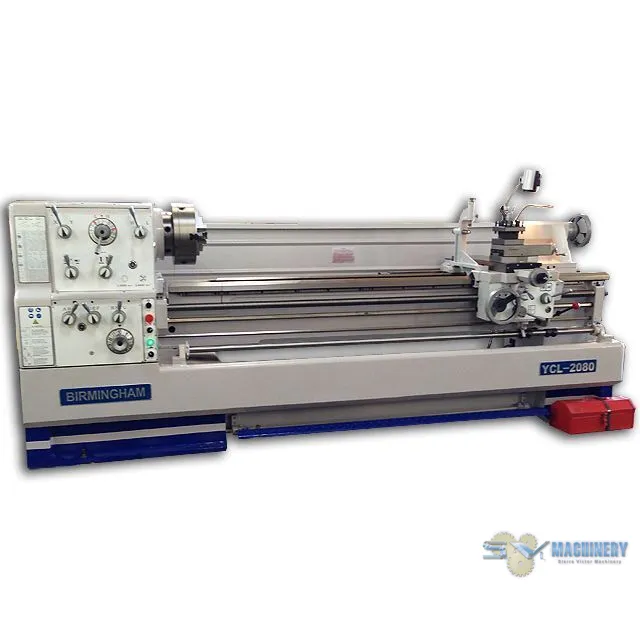

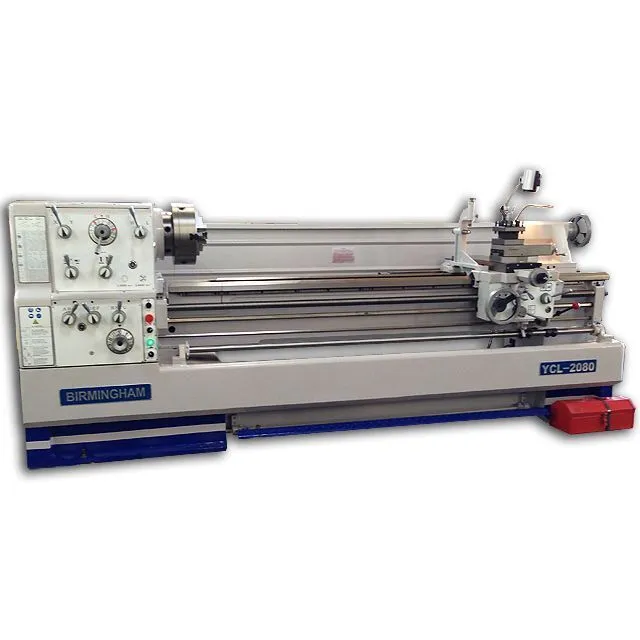

BIRMINGHAM YCL-22120 22x120 Precision Gap Bed Lathe

<p><b>SPECIFICATIONS:</b></p> <table cellspacing="0" cellpadding="0" border="1" width="520"> <tbody style="text-align: center;"> <tr> <td width="103" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>MODEL</b></span></div></td> <td bgcolor="#333333" class="TableText"><div align="center"></div></td> <td width="219" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>YCL-22120</b></span></div></td> </tr> <tr> <td width="103" rowspan="7" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><strong>&nbsp;</strong><strong>CAPACITY</strong></span></div></td> <td width="190" bgcolor="#CCCCCC" class="TableText"><div align="center">Max. swing over bed</div></td> <td class="TableText"><div align="center">22"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Distance between centers</div></td> <td class="TableText"><div align="center">120"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Max. effective cutting length</div></td> <td class="TableText"><div align="center">116"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Max. swing over cross slide</div></td> <td class="TableText"><div align="center">13-3/4"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Max. swing in gap</div></td> <td class="TableText"><div align="center">31"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Effective length in gap</div></td> <td class="TableText"><div align="center">6"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Width of bed</div></td> <td class="TableText"><div align="center">13-3/4"</div></td> </tr> <tr> <td rowspan="4" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><strong>HEADSTOCK</strong></span></div></td> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Spindle nose</div></td> <td valign="top" class="TableText"><div align="center">D1-8</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Diameter of spindle thru bore</div></td> <td class="TableText"><div align="center">3-1/8"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Taper of spindle center</div></td> <td class="TableText"><div align="center">MT #7 / MT # 5</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Spindle speeds, 12 steps</div></td> <td class="TableText"><div align="center">25, 35, 55, 80, 120, 170, 235, 350, 525, 700, 1100, 1600 RPM</div></td> </tr> <tr> <td rowspan="6" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><strong>FEEDS & THREADS</strong></span></div></td> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Longitudinal feeds</div></td> <td class="TableText"><div align="center">35 kinds, 0.0022" - 0.0612"/rev.</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Cross feeds</div></td> <td class="TableText"><div align="center">35 kinds, 0.00048" - 0.01354"/rev.</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Metric threads</div></td> <td class="TableText"><div align="center">47 kinds, 0.2 - 14mm</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Inch threads</div></td> <td class="TableText"><div align="center">60 kinds, 112 - 2 TPI</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Module threads</div></td> <td class="TableText"><div align="center">39 kinds, 0.1 - 7mm</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Diametral pitch threads</div></td> <td class="TableText"><div align="center">50 kinds, 4 - 112 DP</div></td> </tr> <tr> <td rowspan="4" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><strong>CARRIAGE</strong></span></div></td> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Max. travel of cross slide</div></td> <td class="TableText"><div align="center">12-15/16"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Max. travel of top slide</div></td> <td class="TableText"><div align="center">5-1/8"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">4-way tool post size</div></td> <td class="TableText"><div align="center">1" x 1"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Longitudinal leadscrew dia./pitch</div></td> <td class="TableText"><div align="center">Dia 1-5/8" / 4 TPI</div></td> </tr> <tr> <td rowspan="3" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><strong>TAILSTOCK</strong></span></div></td> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Diameter of tailstock quill</div></td> <td class="TableText"><div align="center">3"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Taper of tailstock quill center</div></td> <td class="TableText"><div align="center">MT #5</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Max. travel of tailstock quill</div></td> <td class="TableText"><div align="center">7"</div></td> </tr> <tr> <td rowspan="2" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><strong>MOTORS</strong></span></div></td> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Power of main motor</div></td> <td class="TableText"><div align="center">10 HP, 230/460V / 60Hz, <br> 3 Phase<br> Prewired 230V</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Power of coolant pump</div></td> <td class="TableText"><div align="center">1/8 HP, 230/460V / 60Hz,<br> 3 phase <br> Prewired 230V</div></td> </tr> <tr> <td rowspan="3" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><strong>MISCELLANEOUS</strong></span></div></td> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Overall dimensions approx.<br> (L x W x H) </div></td> <td class="TableText"><div align="center">154" x 46" x 58"</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Net weight, approx (lbs.)</div></td> <td class="TableText"><div align="center">7,600</div></td> </tr> <tr> <td bgcolor="#CCCCCC" class="TableText"><div align="center">Gross weight, approx. (lbs.)</div></td> <td class="TableText"><div align="center">8,600</div></td> </tr> </tbody> </table> <p><b><br>FEATURES:</b></p> <ul><li>10 HP Main Motor</li><li>One-piece cast iron base</li><li>D1-8 Spindle with 3-1/8" bore</li><li>No change gears required</li><li>12 Speeds from 45-1,600 RPM</li><li>60 Kinds of inch threads from 112-2 TPI</li><li>47 kinds of metric threads from 0.2 - 14mm</li><li>Main spindle hardened & precision ground</li><li>Bed made of fine grain high tensile cast iron</li><li>Bedways induction hardened & precision ground</li><li>All gears & shafts hardened & precision ground</li><li>Main spindle supported at 3-point by precision bearings</li></ul> <p><strong> STANDARD EQUIPMENT:</strong></p> <ul><li>3 JAW CHUCK</li><li>4 JAW CHUCK</li><li>FACE PLATE</li><li>STEADY REST W/ ROLLER JAWS</li><li>FOLLOW REST</li><li>GAP</li><li>4 WAY TOOL POST</li><li>THREADING CHASING DIAL</li><li> ( 2 ) DEAD CENTERS</li><li>REDUCING SLEEVE</li><li>FULL LENGTH SPLASH GUARD</li><li>ONE PIECE CAST IRON BASE</li><li> FOOT BRAKE</li><li>HALOGEN WORK LIGHT</li><li>COOLANT SYSTEM</li><li>LEVELING PADS</li><li>4 POSITION AUTO KICK-OUT LONGITUDINAL CARRIAGE STOP</li><li>TOOL BOX</li><li>TAPER TURN ATTACHMENT</li></ul>
