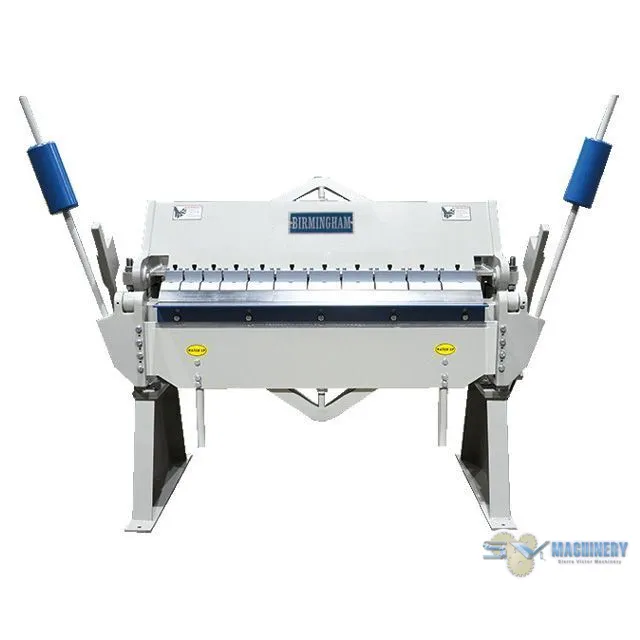

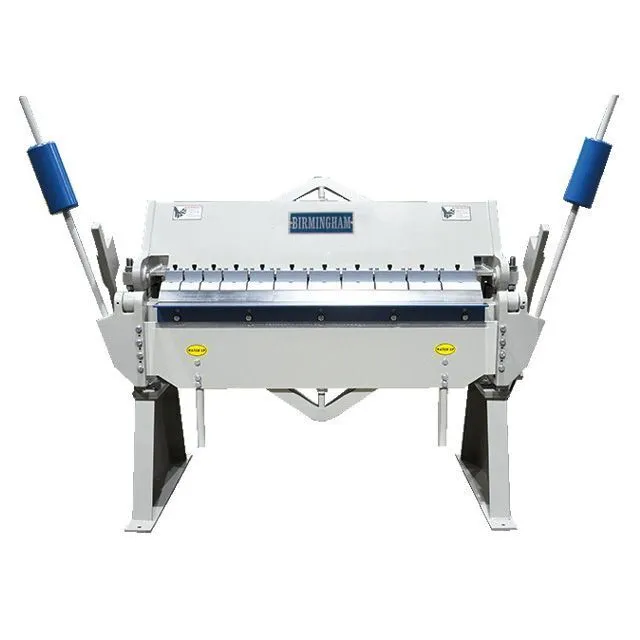

BIRMINGHAM V-1014-6 10 ft x 14 ga. Manual Box and Pan Brake

BIRMINGHAM V-1014-6 10 ft x 14 ga. Manual Box and Pan Brake

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Box and Pan Brakes
Manufacturer:
BIRMINGHAM
Model:
V-1014-6
Condition:
Build To Order
Stock #:
V-1014-6
Status:
For Sale
Capacity (ga) Mild Steel14 gauge14 gauge
Capacity (ga) Stainless Steel18 gauge18 gauge
Bending Length (inches)120"3,048 mm
Bending Length (feet)10'3,048 mm
Bending Angle0-135°0-135°
Beam Adjustment, Front and Back1"25.4 mm
Minimum Reverse Bend0.3125"7.9375 mm
Machining Length146"3,708.4 mm
Machine Width34"863.6 mm
Machine Height44"1,117.6 mm
Net Weight4,000 lb1,814.4 kg
Dimensions146 x 34 x 44 in.146 x 34 x 44 in.
Weight4000 lbs.4000 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
24" manual back gauge with slide and lock for all manual brakes
32" single axis, NC programmable power brake gauge with Germany ELGO# P8511
