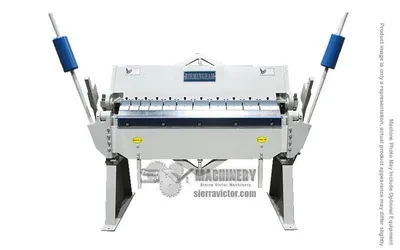

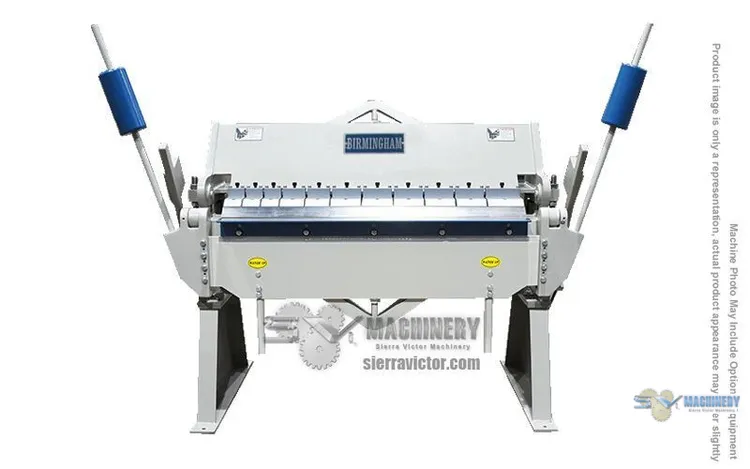

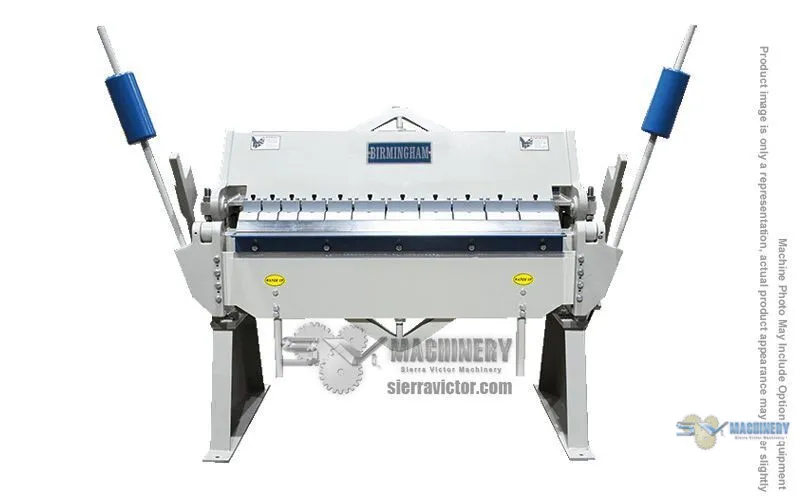

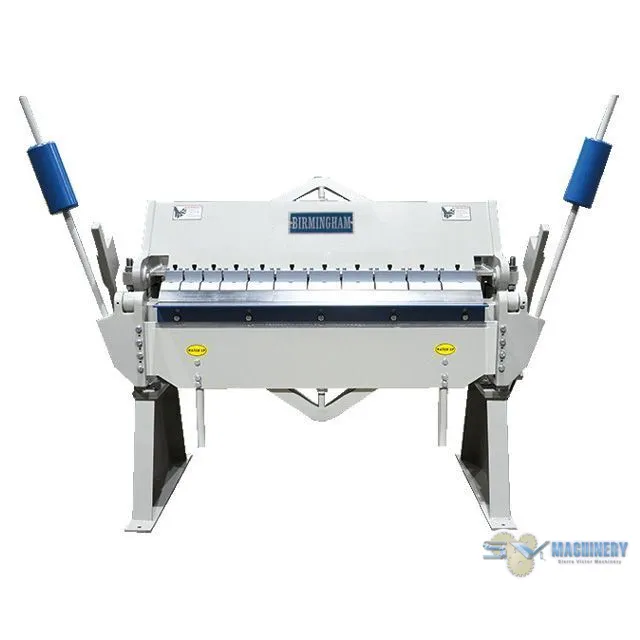

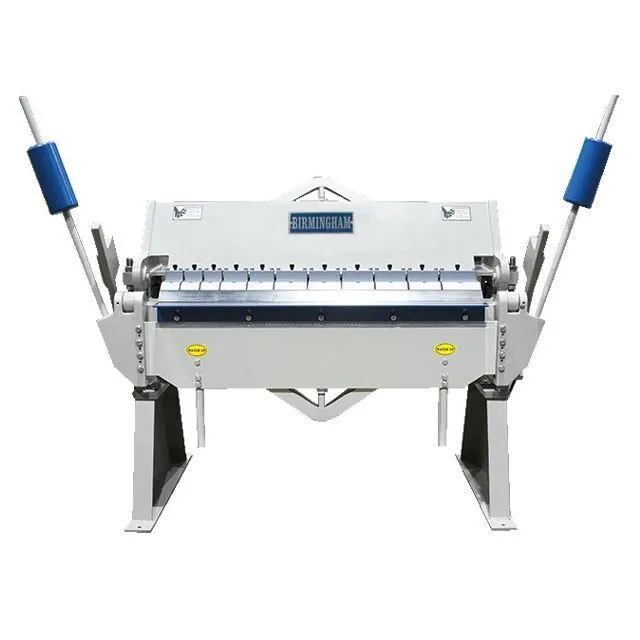

BIRMINGHAM V-412-6 4 ft x 12 ga. Manual Box and Pan Brake

BIRMINGHAM V-412-6 4 ft x 12 ga. Manual Box and Pan Brake

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Box and Pan Brakes
Manufacturer:
BIRMINGHAM
Model:
V-412-6
Condition:
Build To Order
Stock #:
V-412-6
Status:
For Sale
Capacity (ga) Mild Steel12 gauge12 gauge
Capacity (ga) Stainless Steel16 gauge16 gauge
Bending Length (inches)48"1,219.2 mm
Bending Angle0-135°0-135°
Beam Adjustment, Front and Back1"25.4 mm
Minimum Reverse Bend0.3125"7.9375 mm
Machining Length71"1,803.4 mm
Machine Width34"863.6 mm
Machine Height44"1,117.6 mm
Net Weight2,300 lb1,043.3 kg
Dimensions71 x 34 x 44 in.71 x 34 x 44 in.
Weight2300 lbs.2300 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
24" manual back gauge with slide and lock for all manual brakes
32" single axis, NC programmable power brake gauge with Germany ELGO# P8511
