<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td class="TableText">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>H-1035</strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Cutting Capacity
</div>
</td>
<td class="TableText" width="257">
<div align="center">10'
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Mild Steel
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">10 GA
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Stainless Steel
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">13 GA
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Blade Length
</div>
</td>
<td class="TableText">
<div align="center">10' 2"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Strokes Per Minute (S.P.M.)
</div>
</td>
<td class="TableText">
<div align="center">25-35
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Hold-Downs Number
</div>
</td>
<td class="TableText">
<div align="center">16
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Hold-Downs Pressure (Tons)
</div>
</td>
<td class="TableText">
<div align="center">8.2
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Front Support (Inch)
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">40
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Back Gauge (Inch)
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">24
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Top Blade Rake Adjustment
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Hydraulic Adjustment Rake Angle
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Top Blade Rake Angle
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">1/2 - 2°
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor (HP)
</div>
</td>
<td class="TableText">
<div align="center">10
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Oil Tank Capacity (Gal)
</div>
</td>
<td class="TableText">
<div align="center">40
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Dimensions approx.
</div>
</td>
<td class="TableText">
<div align="center">158" x 50" x 65"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Net Weight (lbs)
</div>
</td>
<td class="TableText" width="257">
<div align="center">9,800
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li><strong>MADE IN TAIWAN</strong></li>
<li>Well balanced and sturdy welded machine frame provides constant stability and rigidity</li>
<li> The centralized hydraulic logical system offers the best performance with a quiet hydraulic pump</li>

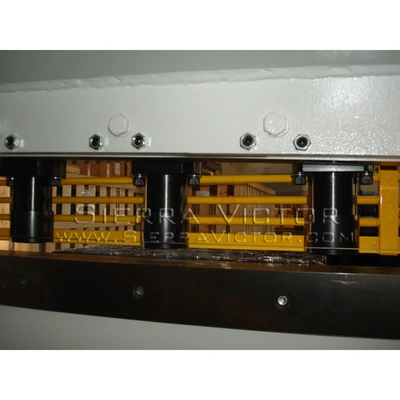

<li>Independent hydraulic pressure hold-downs synchronized with upper blade, ensuring the work piece is securely clamped at the moment of cutting</li>
<li> High grade carbon/chrome alloy steel blades ensure maximum accuracy cutting and longer blade life, 60hrc hardened</li>
<li> Blade clearance (gap) setting can be easily and quickly done by adjusting handle. (Standard for H-0445 and heavier models)</li>
<li> Hydraulic adjustable rake angle design is a standard feature for all models, this allows the operator to obtain best rake angle for each application and minimize possible bowing and twisting</li>
<li> Adjustable cutting length and stroke</li>
<li> Shadow line lighting covering full length of worktable, this is very helpful to operator for positioning and shearing work piece</li>
<li> Worktable mounted with ball transfer type plates, for easier loading and moving work piece</li>
<li> Full-length and full view safety finger guard, to protect operator from cutting hazard</li>
<li> Removable foot remote pedal is fitted with safety protection, the upper blade beam will rise to top position immediately, when the operator removes off his foot from the pedal</li>
<li> All motors and pumps are overload protected</li>
<li> Jog, single, or continuous cutting modes</li>
</ul>
<p><strong>STANDARD ACCESSORIES:</strong>
</p>
<ul>
<li>Blades</li>
<li>40" Front Support Arm</li>
<li>40" Squaring Arm</li>
<li>Finder Guard</li>
<li>Foot Pedal</li>
<li>Shadow Line Lighting</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Angle Gauge</li>
<li>Single Axis, NC Programmable 32” Power Back Gauge</li>
<li> Pneumatic-Type Thin Sheet Supporter</li>
<li> Power Back Gauge With Lifting Function</li>
<li>59”/79”/118” Front Support Arm</li>
<li>59”/79”/118” Squaring Arm With Dual Scale </li>
</ul>
