<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold">
<td width="257" bgcolor="#333333">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td width="257" bgcolor="#333333">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>JMD-40GHPF</strong></span>
</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>
<div align="center">Part #
</div>
</div>
</td>
<td bgcolor="#ffffff">
<div>
<div align="center">JT9-351041
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div align="center">Drilling Capacity (in.)
</div>
</div>
</td>
<td>
<div align="center">1-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div align="center">Face Mill Capacity (in)
</div>
</div>
</td>
<td>
<div align="center">4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div align="center">End Mill Capacity (in.)
</div>
</div>
</td>
<td>
<div align="center">3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Swing (In.)
</div>
</td>
<td>
<div align="center">21
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Max Distance Spindle to Table (In.)
</div>
</td>
<td>
<div align="center">15-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Spindle Taper (In. x TPI)
</div>
</td>
<td>
<div align="center">R-8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Spindle Travel (In.)
</div>
</td>
<td>
<div align="center">5
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Spindle Travel Auto (In.)
</div>
</td>
<td>
<div align="center">4-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Quill Diameter (In.)
</div>
</td>
<td>
<div align="center">3
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Column Diameter (In.)
</div>
</td>
<td>
<div align="center">4-1/2
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Number of Spindle Speeds
</div>
</td>
<td>
<div align="center">6
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Range of Spindle Speeds (RPM)
</div>
</td>
<td>
<div align="center">65-1550
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Table Size (L x W) (In.)
</div>
</td>
<td>
<div align="center">8-1/4 x 28-3/4
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">Table Longitudinal Travel (In.)
</div>
</td>
<td>
<div align="center">20-1/2
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div align="center">T-Slots Number and Size (In.)
</div>
</td>
<td>
<div align="center">4 & 5/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Base Dimensions (In.)
</div>
</td>
<td>
<div align="center">24-1/4" x 15-15/16"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div align="center">Motor
</div>
</div>
</td>
<td>
<div align="center">1-1/2HP, 115/230V, 1Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div align="center">Overall Dimensions (in.)
</div>
</div>
</td>
<td>
<div align="center">28 x 39-1/4 x 42-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div align="center">Net Weight (lb.)
</div>
</div>
</td>
<td>
<div align="center">721
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>

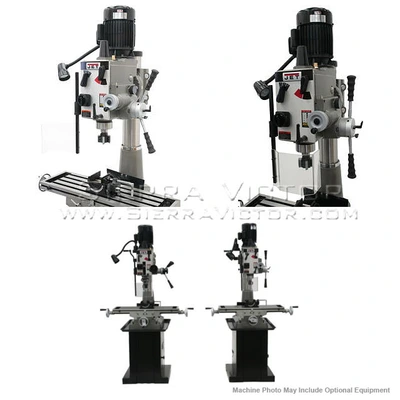

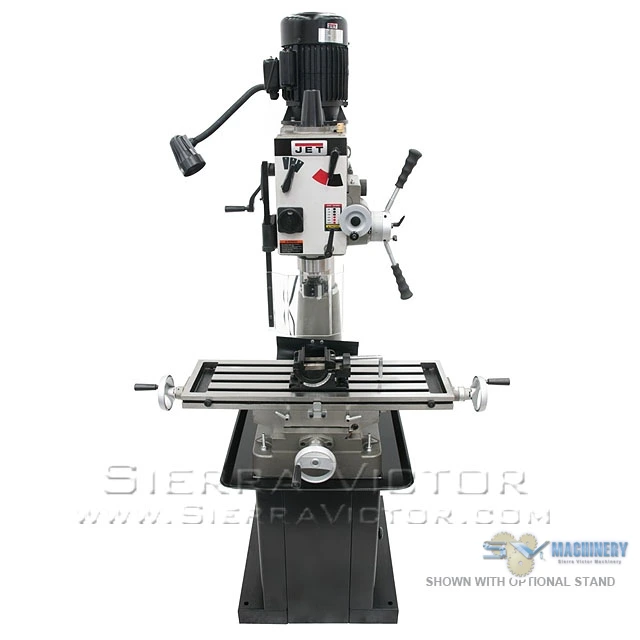

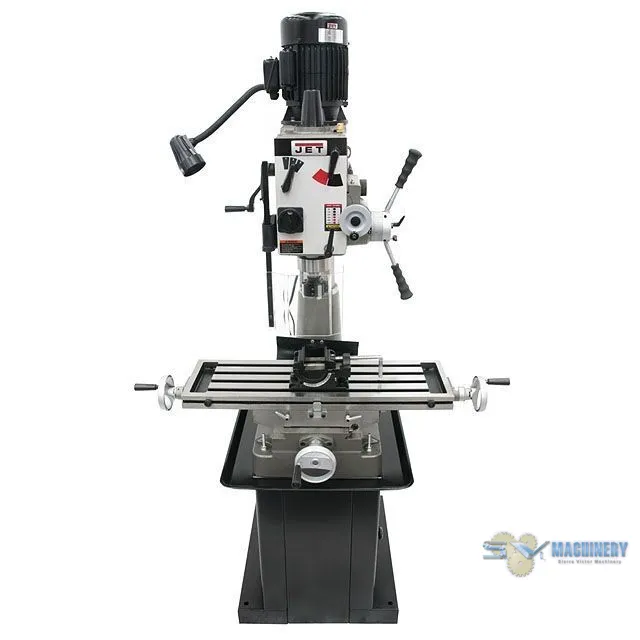

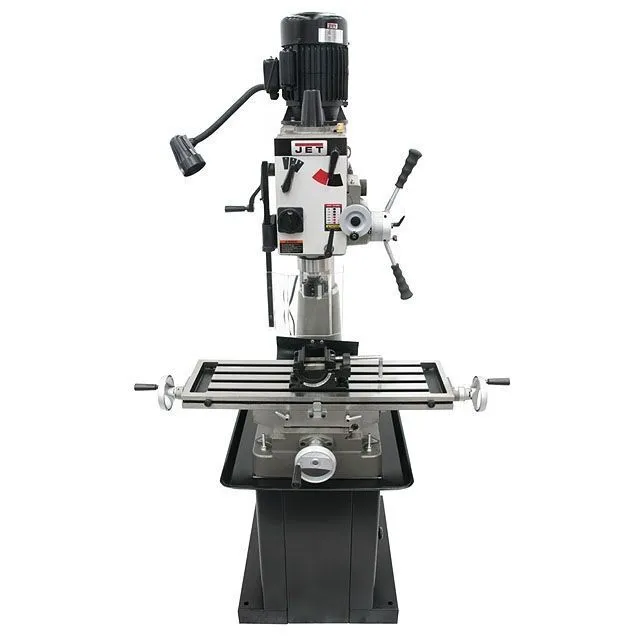

<li>Engineered for precision drilling, the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy.</li>
<li>Heavy-duty design allows for a variety of precision drilling applications</li>
<li>Full power to the cutting tools through 6 speed geared head</li>
<li>CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified</li>
<li>Spindle guard</li>
<li>Work Lamp</li>
<li>Calibrated fine down feed built in</li>
<li>Easy to read internal depth gauge</li>
<li>Head tilts left & right 90ยบ</li>
<li>Rapid spindle speed changes through quick-select gear shift levers</li>
<li>Forward/reverse switch</li>
<li>Power Downfeed standard</li>

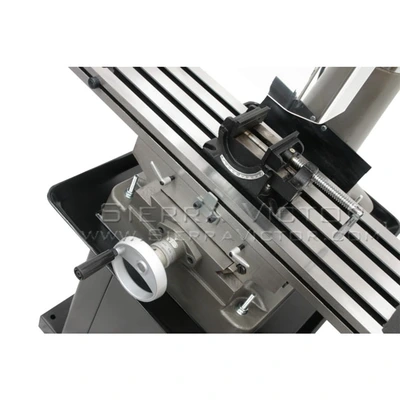

<li>Milling table allows for movement</li>
<li>R8 spindle allows use of all mill tooling</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<table width="520" cellspacing="0" cellpadding="0" border="0">
<!--DWLayoutTable-->
<tbody>
<tr>
<td class="spacer_text" width="400" valign="middle" nowrap="nowrap" height="20" bgcolor="#4c9ae5"><strong>JMD-40GHPF GEARED HEAD MILL DRILL PACKAGES</strong>
</td>
</tr>
</tbody>
</table>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td class="optional_accessories" width="73">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PART #
</strong></span>
</div>
</div>
</td>
<td width="441" bgcolor="#333333">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM
</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-351142
</div>
</td>
<td>
<div align="center">JMD-40GHPF Geared Head Mill Drill with Power Downfeed &<br>
NEWALL DP700 2-AXIS DRO
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-351143
</div>
</td>
<td>
<div align="center">JMD-40GHPF Geared Head Mill Drill with Power Downfeed & <br>
NEWALL DP700 2-AXIS DRO & X-Powerfeed
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-351146
</div>
</td>
<td>
<div align="center">JMD-40GHPF Geared Head Mill Drill with Power Downfeed & <br>
NEWALL DP500 2-AXIS DRO
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-351147
</div>
</td>
<td>
<div align="center">JMD-40GHPF Geared Head Mill Drill with Power Downfeed & <br>
NEWALL DP500 2-AXIS DRO & X-Powerfeed
</div>
</td>
</tr>
</tbody>
</table>
