<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td class="Title_white_bold" width="257" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>GH-1440B</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center"><strong>Part#
</strong>
</div>
</td>
<td>
<div align="center"><strong>JT9-331440</strong>
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Swing Over Bed (in.)
</div>
</td>
<td>
<div align="center">14
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Swing Over Cross Slide (in.)
</div>
</td>
<td>
<div align="center">8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Swing Through Gap (in.)
</div>
</td>
<td>
<div align="center">20
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Length of Gap (in.)
</div>
</td>
<td>
<div align="center">8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Distance Between Centers (in.)
</div>
</td>
<td>
<div align="center">36-7/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Spindle Bore (in.)
</div>
</td>
<td>
<div align="center">2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Spindle Mount
</div>
</td>
<td>
<div align="center">D1-5
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Spindle Taper with Sleeve
</div>
</td>
<td>
<div align="center">MT6
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Number of Spindle Speeds
</div>
</td>
<td>
<div align="center">8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Range of Spindle Speeds (RPM)
</div>
</td>
<td>
<div align="center">70-1900
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<p>Number of Longitudinal & <br>Cross Feed Rates
</p>
</td>
<td>
<div align="center">32/32
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Range of Longitudinal Feeds (IPR)
</div>
</td>
<td>
<div align="center">0.002 -0.0548
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Range of Cross Feeds (IPR)
</div>
</td>
<td>
<div align="center">0.007 -0.0187
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Number of Inch Threads
</div>
</td>
<td>
<div align="center">34
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Range of Inch Threads (in.)
</div>
</td>
<td>
<div align="center">4-56
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Number of Metric Threads
</div>
</td>
<td>
<div align="center">26
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Range of Metric Threads (mm)
</div>
</td>
<td>
<div align="center">0.4-7
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Maximum Tool Size (in.)
</div>
</td>
<td>
<div align="center">4/5 x 4/5
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Compound Slide Travel (in.)
</div>
</td>
<td>
<div align="center">3-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Cross Slide Travel (in.)
</div>
</td>
<td>
<div align="center">7
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Carriage Travel (in.)
</div>
</td>
<td>
<div align="center">37-2/5
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Tailstock Spindle Travel (in.)
</div>
</td>
<td>
<div align="center">4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Taper in Tailstock Spindle
</div>
</td>
<td>
<div align="center">MT4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Follow Rest Capacity (in.)
</div>
</td>
<td>
<div align="center">0.31-2.16
</div>
</td>
</tr>
<tr>
<td height="23" bgcolor="#cccccc">
<div align="center">Steady Rest Capacity - (in.)
</div>
</td>
<td>
<div align="center">0.31-2.95
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Width of Bed (in.)
</div>
</td>
<td>
<div align="center">7.32
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Motor (HP)
</div>
</td>
<td>
<div align="center">2 HP, 230V, Single Phase
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Prewired
</div>
</td>
<td>
<div align="center">230V
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Overall Dim. w/ Stand (in.)
</div>
</td>
<td>
<div align="center">76-13/32 x 29-29/32 x 59-13/16
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Weight (lb.)
</div>
</td>
<td>
<div align="center">1,753
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong> – LIMITED
</p>

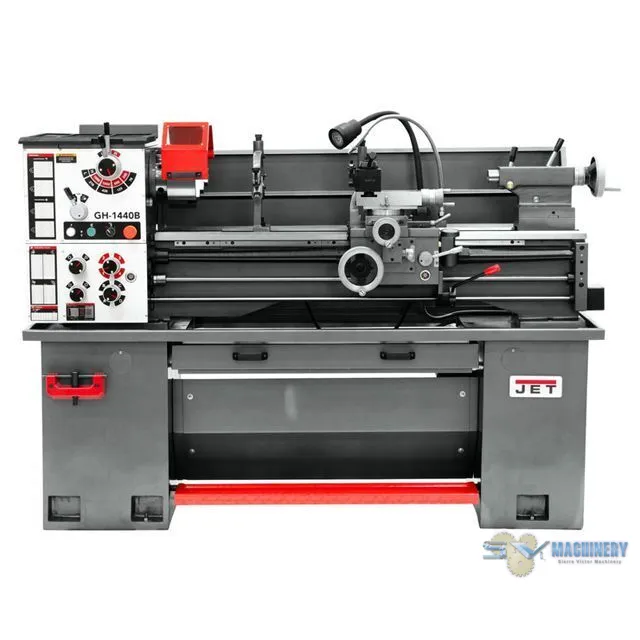

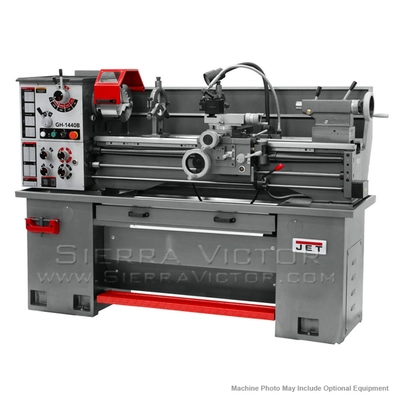

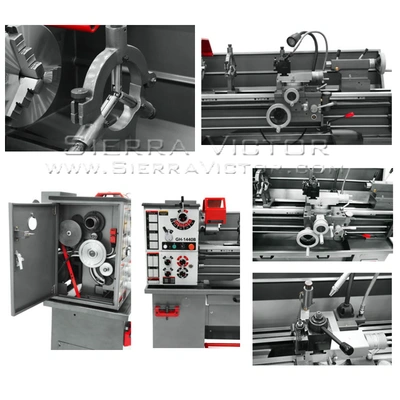

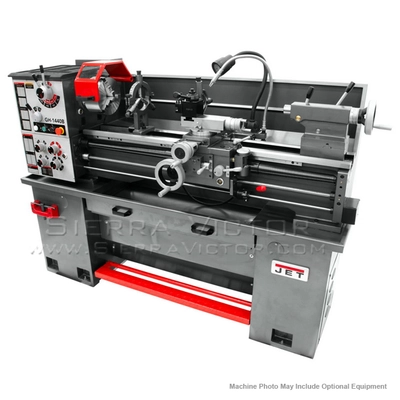

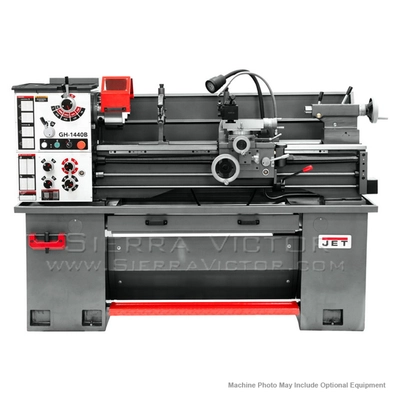

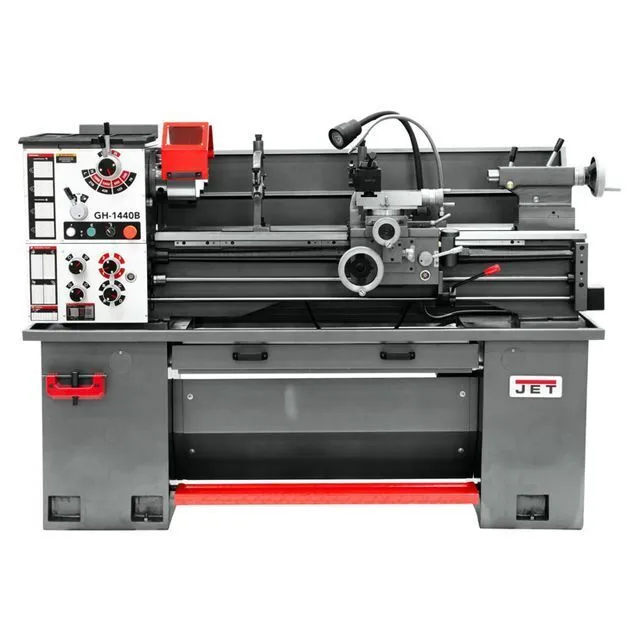

<p>This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.<br>
</p>
<ul>
</ul>
<ul>
<li>Precision spindle roller bearings</li>
<li>High quality steel hardened gears in headstock</li>
<li>Lead screw cover</li>
<li>Cast iron Stand</li>
<li>Foot Brake comes standard</li>
<li>Emergency Stop within easy reach of the Operator</li>
<li>Emergency Stop within easy reach of the Operator</li>
<li>Chuck Guard</li>
<li>Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked</li>
<li>Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use</li>
<li>Enclosed gearbox design provides smooth, quiet operation</li>
<li>Gap bed section provided for larger diameter work</li>
<li>Adjustable gibs are incorporated in the carriage & slideways</li>
<li>Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes</li>
<li>Compound and cross slide have backlash adjustment</li>
<li>Tailstock may be offset for turning tapers and include and inch/metric graduated quill</li>
<li>Spindle Spider available for ease of turning Gun barrels</li>
</ul>
<ul>
</ul>
<p><strong>STANDARD EQUIPMENT:
</strong>
</p>
<ul>
<li>8" 3-Jaw Chuck</li>
<li>10" 4-Jaw Chuck</li>
<li>Steady Rest with Roller Bearings</li>
<li>Follow Rest</li>
<li>Quick Change Toolpost</li>
<li>5pc Set of Holders</li>
<li>LED Work Lamp</li>
<li>MT3 Live Center</li>
<li>MT-5/3 Sleeve</li>
</ul>
<ul>
<li>JT9-650226 - Gunsmithing Spindle Spider for Models GH-1440B: $CALL</li>
</ul>
<table width="520" cellspacing="0" cellpadding="0" border="0">
<!--DWLayoutTable-->
<tbody>
<tr>
<td class="spacer_text" width="400" valign="middle" nowrap="nowrap" height="20" bgcolor="#4c9ae5"><strong>AVAILABLE PACKAGES — GH-1440B Lathe Packages</strong>
</td>
</tr>
</tbody>
</table>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td width="66">
<div>
<div align="center"><span style="color: #ffffff;"><strong>STOCK #</strong></span>
</div>
</div>
</td>
<td width="448">
<div>
<div align="center"><span style="color: #ffffff;"><strong>INCLUDES</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">323442
</div>
</td>
<td>
<div align="center">GH-1440B with Taper Attachment
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">323446
</div>
</td>
<td>
<div align="center">GH-1440B with NMS300
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">323448
</div>
</td>
<td>
<div align="center">GH-1440B with Newall DP500 DRO & Taper Attachment
</div>
</td>
</tr>
</tbody>
</table><p></p>
