<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Country of Manufacture
</div>
</td>
<td class="TableText">
<div align="center">United States
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Motor Hp
</div>
</td>
<td class="TableText" width="257">
<div align="center">1/2
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Mild Steel Capacity
</div>
</td>
<td class="TableText" width="257">
<div align="center">16 ga
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Throat Depth
</div>
</td>
<td class="TableText">
<div align="center">36"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Aluminum Capacity
</div>
</td>
<td class="TableText">
<div align="center">14 ga
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText">
<div align="center">110V
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>
<div align="center">Shipping Weight
</div>
</div>
</td>
<td class="TableText" width="257">
<div align="center">300 lbs.
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>
<div align="center">Shipping Dimensions
</div>
</div>
</td>
<td class="TableText" width="257">
<div>
<div align="center">60" x 44" x 68"
</div>
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

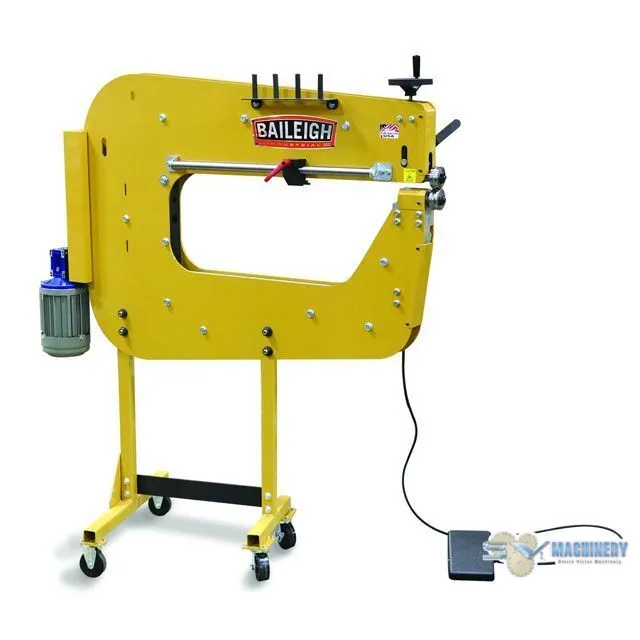

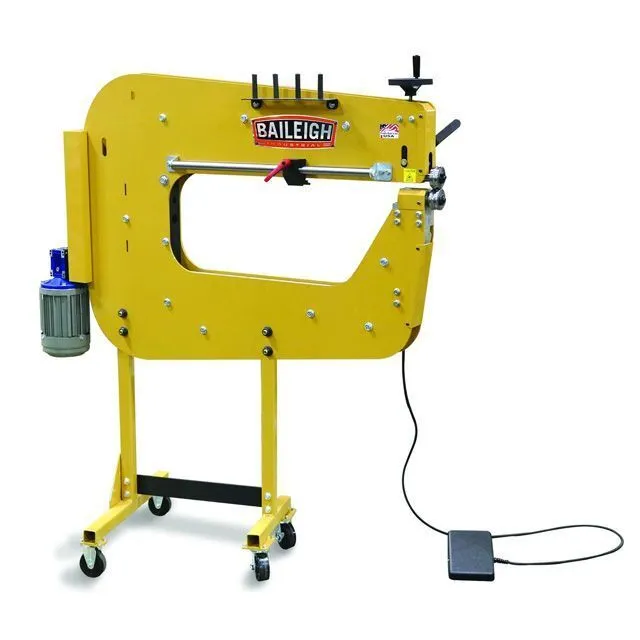

<li>This bead roller’s <strong>open concept design</strong> gives you extra working area. Add beads to <strong>bent panels</strong> and large sheets for auto or airplane projects. <strong>Foot pedal controls</strong> leave your hands free.</li>
<li>Maximum capacity of <strong>16 gauge</strong> mild steel.</li>
<li><strong>36” throat depth</strong> allows you to reach the center of 72” pieces.</li>
<li><strong>Variable-speed pedal</strong> lets you press harder to go faster, or roll more slowly for detailed patterns.</li>
<li>You can also lock the rolls at a constant speed if you choose.</li>
<li>Integrated <strong>adjustable depth stop</strong> makes it simple to create and repeat perfectly straight beads.</li>
<li><strong>Quick-release die</strong> maintains consistent forming depth, even if you open and close it.</li>
<li>You can <strong>begin or end a design in the middle</strong> of a panel without worrying if the depth is set correctly.</li>
<li><strong>Adjust the forming depth</strong> with an easily accessible handwheel just above the working area.</li>
<li><strong>Bottom die slides in or out</strong>. By changing the offset, you can create custom profiles from standard dies.</li>
<li>Includes <strong>1/4” round bead</strong> die set and <strong>.05" art roll set</strong>.</li>
<li>Many Baileigh bead roller dies are available. See our tooling for the BR-16E-36LT.</li>
<li>This electric bead roller <strong>accepts standard die sets</strong>. It’s compatible with most tooling for similar machines.</li>
<li>All friction points turn on long-lasting <strong>bronze bushings</strong> with grease fittings.</li>
<li><strong>Rigid steel construction</strong> reduces flex and ensures accurate beads over many years of production.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>Our experienced metalworking team is here to provide <strong>lifetime technical support</strong> by phone.</li>
<li>We keep this electric bead roller, its tooling, and <strong>replacement parts in stock</strong> for fast shipping.</li>
</ul>
