<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr class="TableText" height="14">
<td width="200" height="14" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>MODEL</b></span></div></td>
<td width="206" height="14" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>GML-1440BGF-1</b></span></div></td>
</tr>
<tr class="TableText" height="14">
<td bgcolor="#cccccc"><div align="center">Max. swing over bed </div></td>
<td height="14"><div align="center">14 in.</div></td>
</tr>
<tr class="TableText" height="14">
<td bgcolor="#cccccc"><div align="center">Max. length of workpiece</div></td>
<td height="14"><div align="center">40 in.</div></td>
</tr>
<tr class="TableText" height="14">
<td bgcolor="#cccccc"><div align="center">Max. length of cutting</div></td>
<td height="14"><div align="center">34 in.</div></td>
</tr>
<tr class="TableText" height="14">
<td bgcolor="#cccccc"><div align="center">Max. Swing Over Cross Slide</div></td>
<td height="14"><div align="center">8.25 in.</div></td>
</tr>
<tr class="TableText" height="14">
<td bgcolor="#cccccc"><div align="center">Bed Width</div></td>
<td height="14"><div align="center">7.5 in.</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Spindle Bore</div></td>
<td height="14"><div align="center">1.5 in., D1-4
</div>
</td></tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Taper of spindle center </div></td>
<td height="14"><div align="center">M.T.# 5 (MT5/MT3)
</div>
</td></tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Spindle Speeds</div></td>
<td height="14"><div align="center">70-2,000 RPM / 8-Steps
</div>
</td></tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Longitudinal Feeds</div></td>
<td height="14"><div align="center">0.00168” - 0.11750”/rev.<br>
IPR, 24 kinds</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Cross feeds</div></td>
<td height="14"><div align="center">0.00046” - 0.03231” /rev.<br>
IPR, 24 kinds</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Inch threads </div></td>
<td height="14"><div align="center">4-112 TPI, 56 kinds</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Metric threads </div></td>
<td height="14"><div align="center">0.1-7.0 mm , 44 kinds</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Diametral Pitch threads</div></td>
<td height="14"><div align="center">16-112 DP, 32 kinds</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Module threads </div></td>
<td height="14"><div align="center">0.1 – 1.75 mm , 34 kinds</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Max. travel of top slide </div></td>
<td height="14"><div align="center">4-1/4 in.</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Max. travel of cross slide</div></td>
<td height="14"><div align="center">7-1/4 in.</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Spindle speeds, 8 steps</div></td>
<td height="14"><div align="center">70/115/190/300/460/755/1255/2000 rpm</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Diameter of tailstock quill</div></td>
<td height="14"><div align="center">1-1/2 in.</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Max. travel of tailstock quill </div></td>
<td height="14"><div align="center">4 in.</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Taper of tailstock quill center</div></td>
<td height="14"><div align="center">M.T. # 3</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Oil for headstock/ Gear box/Apron</div></td>
<td height="14"><div align="center">#30 weight machine oil, <br>
TEXACO regal R&O/100, 3 Gal.</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Main motor</div></td>
<td height="14"><div align="center">3 HP, 220v, 1-Phase</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Amperage Draw</div></td>
<td height="14"><div align="center">10 Amps.</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Coolant pump</div></td>
<td height="14"><div align="center">1/16HP, 220V, Single Phase<br>
water base coolant
</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Net Weight (approx.)</div></td>
<td height="14"><div align="center">1,730 lbs.</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Overall Dimensions</div></td>
<td height="14"><div align="center">70 L x 35 W x 59 H in.</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Shipping Dimensions</div></td>
<td height="14"><div align="center">75 L x 30 W x 55 H in.</div></td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.</p>
<p>NOTE: Data is provided by the manufacturer.</p>
<p><b>WARRANTY: 3 YEAR – Parts </b></p>
<ul>

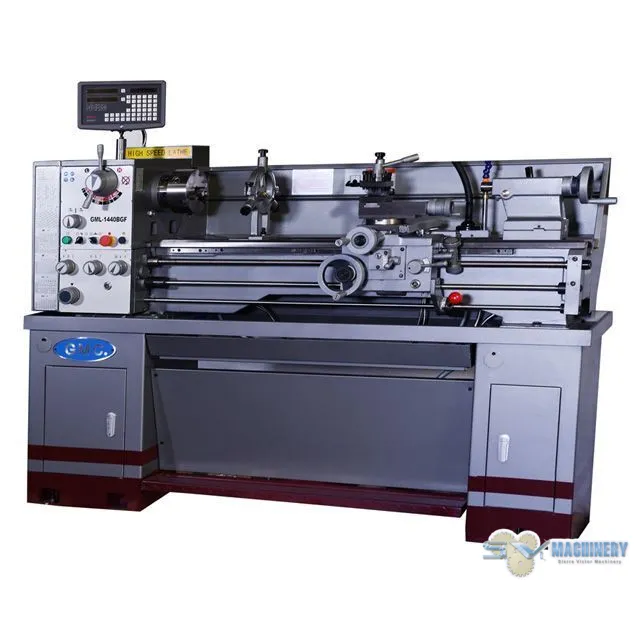

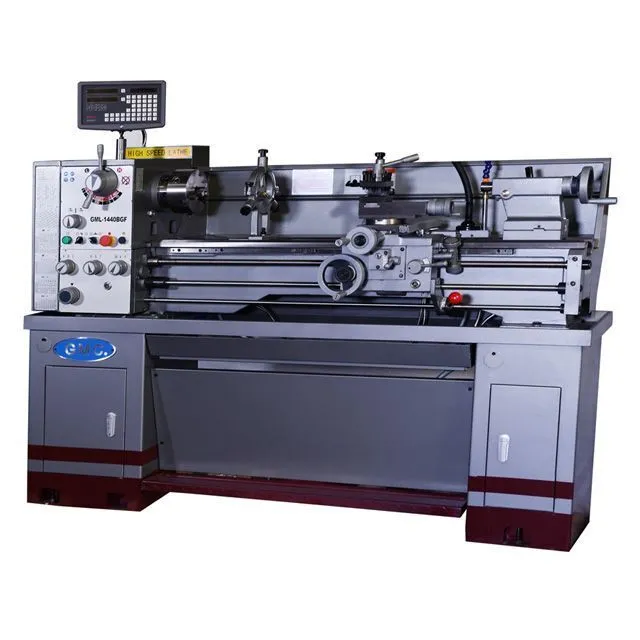

<li>Our engine lathe is suitable for machining in metalworking machine shops, tool rooms, and repair shops. Ideal for making threads and turning metal parts like, shafts, spindles, sleeves, discs, weapon components, and many more parts. Our lathes are robust, reliable, easy to use, convenient to repair, precise, quiet, and have no vibration.</li>
<li>ISO 9001 certified</li>

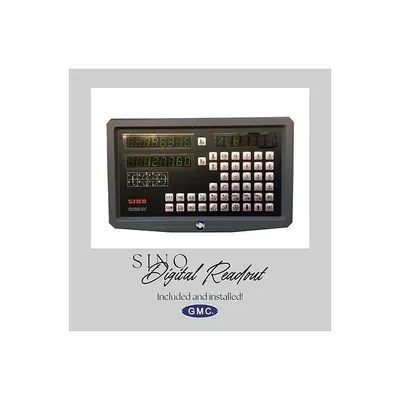

<li>With free SINO DRO installed </li>
<li>With free Taper Attachment installed </li>
<li>Full Geared-head precision Engine Lathe with foot brake </li>
<li>Quick-change gearbox with fast and easy threading set up </li>
<li>Heavy Duty main motor 3HP, 220V, 1 phase</li>
<li>Spindle bore 1 1/2” </li>
<li>Heavy Duty spindle D1-4</li>
<li>Heavy Duty guideway width 7 1/2” </li>
<li>8 spindle speeds from 70-2,000 rpm, speeds: <br>
70/115/190/300/460/755/1255/2000 rpm </li>
<li>56 kinds of inch threads, and 44 kinds of metric threads </li>

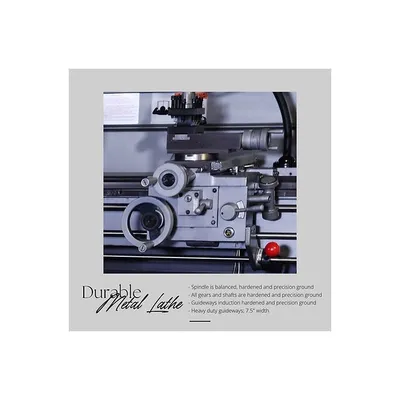

<li>Spindle is balanced, hardened and precision ground </li>
<li>All gears and shafts are hardened and precision ground </li>
<li>Guideways induction hardened and precision ground</li>
<li>Automatic lubrication system in headstock and feed box </li>
<li>Three year parts warranty for this model</li>
<li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li>
<li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported. </li>
</ul>
<p><b> EQUIPPED WITH:</b></p>
<ul>
<li>Free SINO DRO installed </li>
<li>Free Taper Attachment installed </li>
<li>6” 3-jaw chuck with set reversible jaws</li>
<li>8” 4-jaw chuck with set reversible jaws</li>
<li>10” Face plate </li>
<li>3-3/4” large steady rest </li>
<li>2” follow rest </li>

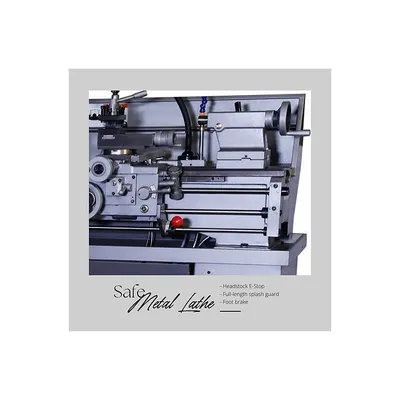

<li>Foot brake</li>
<li>Coolant system</li>
<li>Halogen work light </li>
<li>4-way tools post </li>
<li>Full length splash guard </li>
<li>(2) dead centers and (1) reducing sleeve </li>
<li>Thread chasing dial </li>
<li>Tool box </li>
</ul>

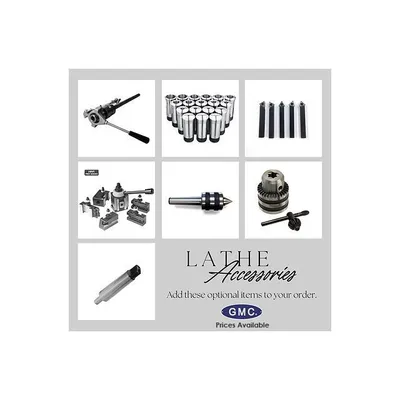

<p><b> OPTIONAL ITEMS: </b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText1">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white1">
<td width="123" class="optional_accessories"><div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><b>PART #
</b></span></div>
</div></td>
<td width="306" bgcolor="#333333"><div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><b>ITEM
</b></span></div>
</div></td>
<td width="83" bgcolor="#333333"><div align="center"><span style="color: rgb(255, 255, 255);"><b><strong>PRICE</strong></b></span></div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">DPD410</div></td>
<td><div align="center">10” Drive Plate</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$200.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">MCS1440</div></td>
<td><div align="center">Micro Carriage Stop</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$250.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">—</div></td>
<td><div align="center">5-C Hand lever type collet closer, # 5C,”JFK” USA, free install </div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$1,650.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">3900-0014</div></td>
<td><div align="center">33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$595.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">3900-5920 BXA</div></td>
<td><div align="center">6pc ALORIS type quick change toolpost (wedge)</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$725.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">3900-5003</div></td>
<td><div align="center">Live Center MT3</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$175.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">3700-0102</div></td>
<td><div align="center">1/2” drill chuck</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$75.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">3700-0153</div></td>
<td><div align="center">1/2” drill chuck arbor</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$75.00</div></td>
</tr>
<tr>

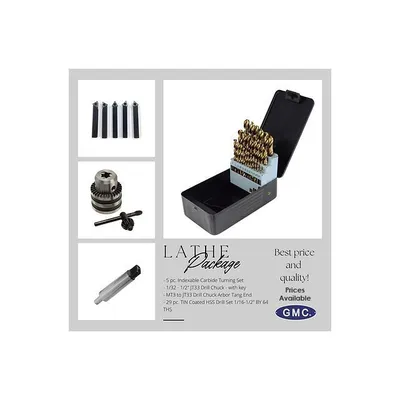

<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">Lathe package # 1</div></td>
<td><div align="center">Lathe package #1, incl 5pc indexable carbide turning set#2003-0004, drill chuck #3700-0102, <br>
Chuck arbor #3700-0153 and <br>
29pc Titanium drill bit set #5000-0001T</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$695.00</div></td>
</tr>
</tbody>
</table>
