<p><b>SPECIFICATIONS:</b></p>
<table width="520" cellspacing="0" cellpadding="0" border="1" class="TableText">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc"><div align="center">Swing Over Bed</div></td>
<td><div align="center">25"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Swing Over Cross Slide</div></td>
<td><div align="center">17"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Swing In The Gap</div></td>
<td><div align="center">33"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Length In Gap From Face Plate</div></td>
<td><div align="center">9"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Distance Between Centers</div></td>
<td width="257"><div align="center">120"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Nose</div></td>
<td><div align="center">D1-11</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Bore</div></td>
<td><div align="center">4-1/8"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Bearings</div></td>
<td><div align="center"> SKF</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number Of Spindle Speeds</div></td>
<td><div align="center">16</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range Of Speeds</div></td>
<td><div align="center">9 - 1600 RPM</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number Of Threads</div></td>
<td><div align="center">72</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range Of Inch Threads</div></td>
<td><div align="center">60 - 1/8 TPI</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range Of Metric Threads</div></td>
<td><div align="center">0.5 - 240</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number Of Feeds</div></td>
<td><div align="center">72</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range Of Longitudinal Feeds</div></td>
<td><div align="center">.0019 - .893</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range Of Cross Feeds</div></td>
<td><div align="center">.0015 - .701</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Lead Screw Diameter</div></td>
<td><div align="center">2"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Lead Screw Pitch</div></td>
<td><div align="center">2 TPI</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Max. Traverse Of Cross Slide</div></td>
<td><div align="center">12-1/2"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Max. Traverse Of Top Slide</div></td>
<td><div align="center">6-1/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Taper Turning Working Length</div></td>
<td><div align="center">15 - 3/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Maximum Taper</div></td>
<td><div align="center">+ / - 10°</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Quill Diameter</div></td>
<td><div align="center">3-1/2"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Quill Taper Bore</div></td>
<td><div align="center">6 MT</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Maximum Quill Stroke</div></td>
<td><div align="center">9"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Lateral Stroke Of Tailstock</div></td>
<td><div align="center">+ / - 3/8”</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Width Of Bed</div></td>
<td><div align="center">19"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Ways</div></td>
<td><div align="center">Hardened and Ground</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Power</div></td>
<td><div align="center">17.5 H.P.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Electrics</div></td>
<td><div align="center">3 Phase, 220V</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Length</div></td>
<td><div align="center">183"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Width</div></td>
<td><div align="center">57"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Height</div></td>
<td><div align="center">61"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Overall Weight Lbs. (approx.)</div></td>
<td><div align="center">11,200</div></td>
</tr>
</tbody>
</table>
<p><b><br></b></p>
<p><b>FEATURES:</b></p>

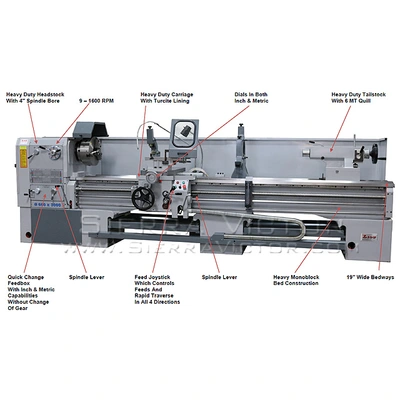

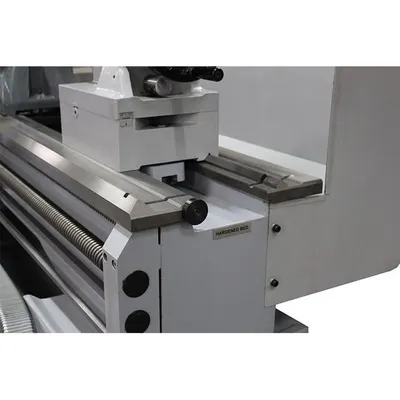

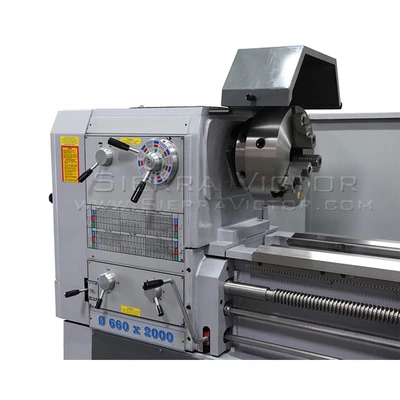

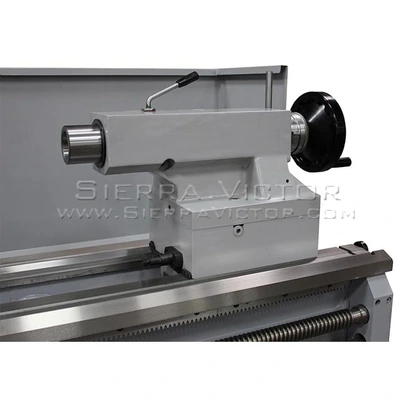

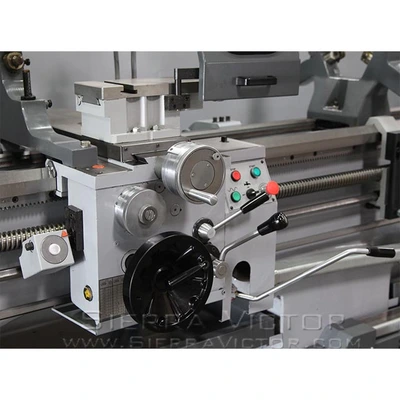

<ul><li>Heavy duty bed construction, with hardened and ground bedways.</li><li>19” wide bedways with heavy overall machine weights.<br></li><li>Heavy duty clutched headstock with set of SKF spindle bearings, and hardened and ground gears.</li><li> 4” spindle bore with D1-11 camlock spindle nose.</li><li>Inch and metric threading without change of gear. Inch threading range from 60 – 1/8 TPI.</li><li>4-Way Rapid Traverse standard.</li><li>Single lever feed joystick for easy operation of feeds and 4-way rapid traverse.</li><li>2-Speed Tailstock with tag along feature.</li><li>European built.</li><li>Heavy duty, rigid, accurate, reliable, and long lasting.</li></ul>
<p><b>STANDARD EQUIPMENT</b></p>
<ul>
<li>Taper</li>
<li>3-Jaw Chuck</li>
<li>4-Jaw Chuck</li>
<li>Steady Rest</li>
<li>Follow Rest</li>
</ul>
