<p><b>SPECIFICATIONS:</b></p>
<table width="520" cellspacing="0" cellpadding="0" border="1" class="TableText">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc"><div align="center">Swing Over Bed </div></td>
<td><div align="center">23-1/2" </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Swing Over Cross Slide </div></td>
<td><div align="center">15-3/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Swing In The Gap </div></td>
<td><div align="center">32"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Length In Gap From 4-Jaw Chuck </div></td>
<td><div align="center">9"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Distance Between Centers </div></td>
<td width="257"><div align="center">80"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Nose </div></td>
<td><div align="center">D1-11</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Bore </div></td>
<td><div align="center">4-1/8"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Bearings </div></td>
<td><div align="center">SKF</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number Of Spindle Speeds </div></td>
<td><div align="center">16</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range Of Speeds </div></td>
<td><div align="center">8 – 1400 RPM</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number Of Threads </div></td>
<td><div align="center">72</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range Of Inch Threads </div></td>
<td><div align="center">120 – 1/4 TPI </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range Of Metric Threads </div></td>
<td><div align="center">0.25 – 64 </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number Of Feeds </div></td>
<td><div align="center">72 </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range Of Longitudinal Feeds </div></td>
<td><div align="center">.001 - .4448" </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range Of Cross Feeds</div></td>
<td><div align="center">.0005” - .2224"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Lead Screw Diameter</div></td>
<td><div align="center">2"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Lead Screw Pitch</div></td>
<td><div align="center">2 TPI</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Max. Traverse Of Cross Slide</div></td>
<td><div align="center">12"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Max. Traverse Of Top Slide</div></td>
<td><div align="center">5"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Taper Turning Working Length</div></td>
<td><div align="center">15-3/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Maximum Taper</div></td>
<td><div align="center">+ / - 10°</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Tailstock Quill Diameter</div></td>
<td><div align="center">3-1/2"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Tailstock Quill Taper Bore</div></td>
<td><div align="center">5 MT</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Maximum Quill Stroke</div></td>
<td><div align="center">8-1/2"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Lateral Stroke Of Tailstock</div></td>
<td><div align="center">+ / - 1/2"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Width Of Bed</div></td>
<td><div align="center">15-3/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Ways</div></td>
<td><div align="center">Hardened & Ground</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Power</div></td>
<td><div align="center">15 H.P.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Electrics</div></td>
<td><div align="center">3 Phase, 220V</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Length</div></td>
<td><div align="center">142"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Width</div></td>
<td><div align="center">51"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Height</div></td>
<td><div align="center">62"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Overall Weight Lbs. (approx.)</div></td>
<td><div align="center">7,700</div></td>
</tr>
</tbody>
</table>

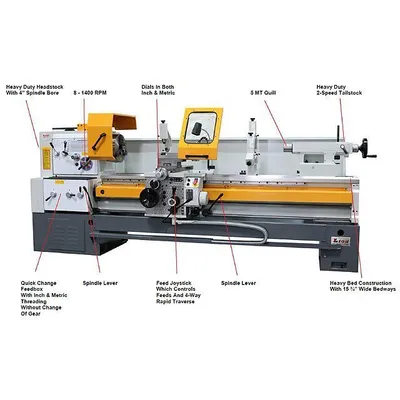

<p><b><br></b></p><p><b>FEATURES:</b></p>
<ul><li>Heavy duty bed construction, with hardened and ground bedways.</li><li>15-3/4” wide bedways with heavy overall machine weights.</li><li>Heavy duty clutched headstock with set of SKF spindle bearings, and hardened and ground gears.</li><li>4” spindle bore with D1-11 camlock spindle nose</li><li>Inch and metric threading without change of gear. Inch threading range from 120 – 1/4 TPI.</li><li>4-Way Rapid Traverse standard.</li><li>Single Lever Feed Joystick for easy operation of feeds and 4-way rapid traverse.</li><li>2-Speed Tailstock with tag along feature.</li><li>European built.</li><li>Heavy duty, rigid, accurate, reliable, and long lasting.</li></ul><!--StartFragment-->
<p><b>STANDARD EQUIPMENT:</b></p>
<ul><li>Taper</li><li>3-Jaw Chuck</li><li>4-Jaw Chuck</li><li>Steady Rest</li><li>Follow Rest</li></ul>
