<p><b>SPECIFICATIONS:</b></p>
<table width="520" cellspacing="0" cellpadding="0" border="1" class="TableText">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Swing Over Bed</div> </td>
<td>
<div align="center">16-1/4"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Swing Over Cross Slide</div> </td>
<td>
<div align="center">9-1/4"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Swing In The Gap</div> </td>
<td>
<div align="center">21"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Length In Gap From Face Plate</div> </td>
<td>
<div align="center">6-1/4"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Distance Between Centers</div> </td>
<td>
<div align="center">40"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Spindle Nose</div> </td>
<td>
<div align="center">D1-6</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Spindle Bore</div> </td>
<td>
<div align="center">2-1/16"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Spindle Bearings</div> </td>
<td>
<div align="center"> SKF</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Number Of Spindle Speeds</div> </td>
<td>
<div align="center">12</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Range Of Speeds</div> </td>
<td>
<div align="center">50 - 2240 RPM</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Number Of Threads</div> </td>
<td>
<div align="center">40</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Range Of Inch Threads</div> </td>
<td>
<div align="center">120 - 4 TPI</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Range Of Metric Threads</div> </td>
<td>
<div align="center">7.5 - 0.25</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Number Of Feeds</div> </td>
<td>
<div align="center">40</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Range Of Longitudinal Feeds</div> </td>
<td>
<div align="center">.0007 - .0224</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Range Of Cross Feeds</div> </td>
<td>
<div align="center">.0004 - .0112</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Lead Screw Diameter</div> </td>
<td>
<div align="center">1-1/4"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Lead Screw Pitch</div> </td>
<td>
<div align="center">2 TPI</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Max. Traverse Of Cross Slide</div> </td>
<td>
<div align="center">9-1/2"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Max. Traverse Of Top Slide</div> </td>
<td>
<div align="center">4"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Quill Diameter</div> </td>
<td>
<div align="center">2"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Quill Taper Bore</div> </td>
<td>
<div align="center">4 MT</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Maximum Quill Stroke</div> </td>
<td>
<div align="center">4"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Lateral Stroke Of Tailstock</div> </td>
<td>
<div align="center">+ / - 1/2”</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Width Of Bed</div> </td>
<td>
<div align="center">12 - 1/2"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Ways</div> </td>
<td>
<div align="center">Hardened and Ground</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Motor Power</div> </td>
<td>
<div align="center">6 H.P.</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Electrics</div> </td>
<td>
<div align="center">3 Phase, 220V</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Length</div> </td>
<td>
<div align="center">91"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Width</div> </td>
<td>
<div align="center">41"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Height</div> </td>
<td>
<div align="center">53"</div> </td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Overall Weight Lbs. (approx.)</div> </td>
<td width="257">
<div align="center">4,000</div> </td>
</tr>
</tbody>
</table>
<p><b><br></b><b>FEATURES:</b></p>

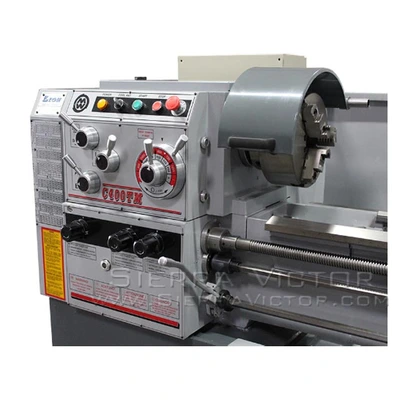

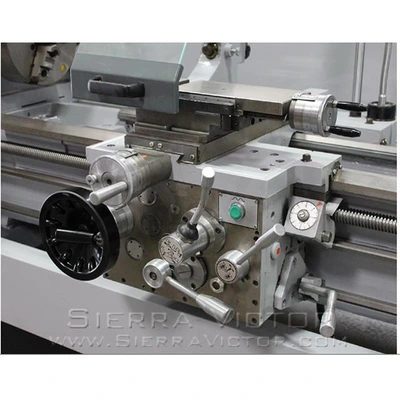

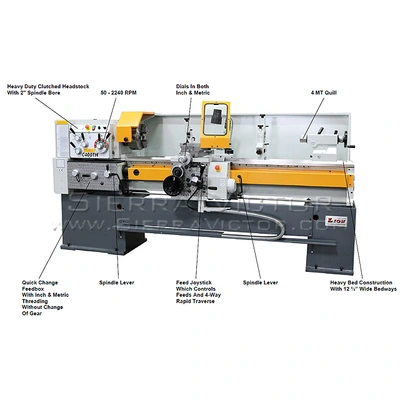

<ul><li>Heavy duty bed construction with hardened and ground bedways.</li><li>12-1/2” wide bedways with heavy overall machine weights.</li><li>Heavy duty clutched headstock with set of SKF spindle bearings, and hardened and ground gears.</li><li>Inch and metric threading without change of gear. </li><li>Wide range of Inch Threads from 120 – 4 TPI.</li><li>4-way rapid traverse standard.</li><li>Single Lever Feed Joystick for easy operation of feeds and rapid traverse.</li><li>Heavy overall machine weight of 4,000 Lbs.</li><li>European built. </li><li>Heavy duty, rigid, accurate, reliable, and long lasting.</li></ul>
<p><b>STANDARD EQUIPMENT:</b></p>
<ul>
<li>3-Jaw Chuck</li>
<li>4-Jaw Chuck</li>
<li>Steady Rest</li>
<li>Follow Rest</li>
</ul>
