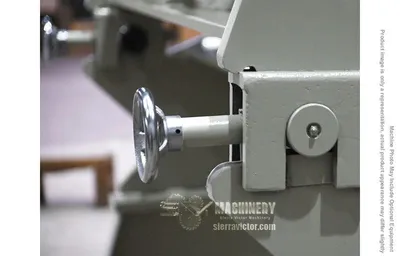

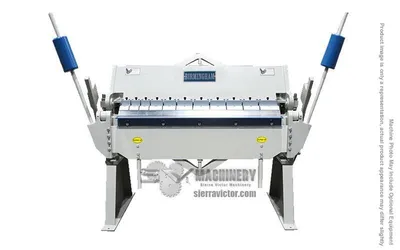

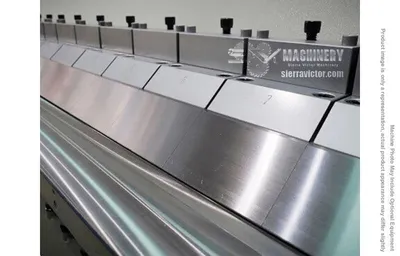

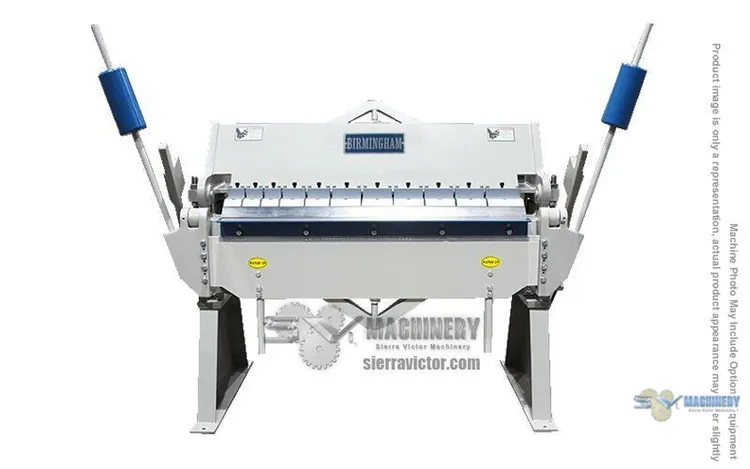

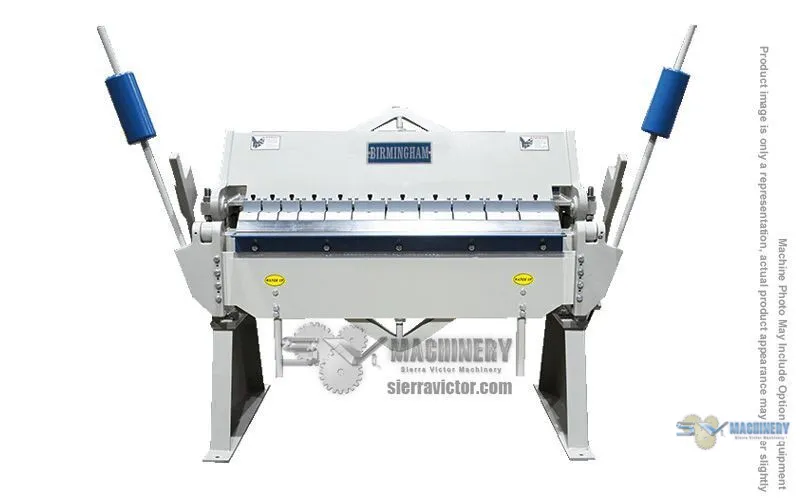

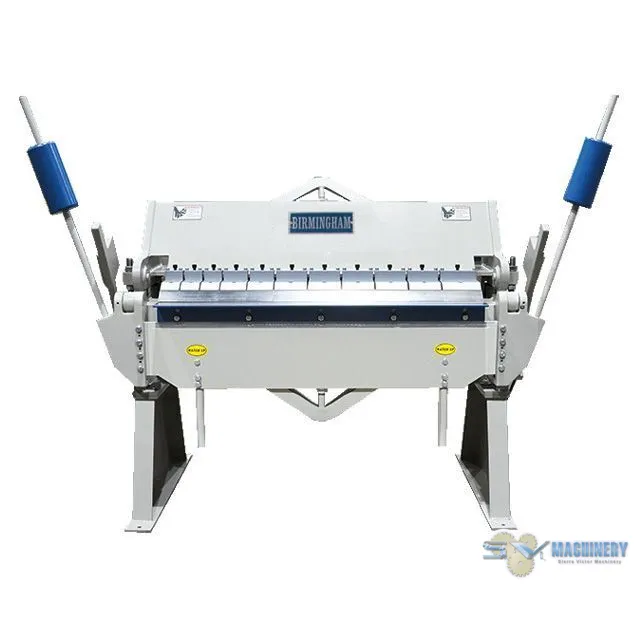

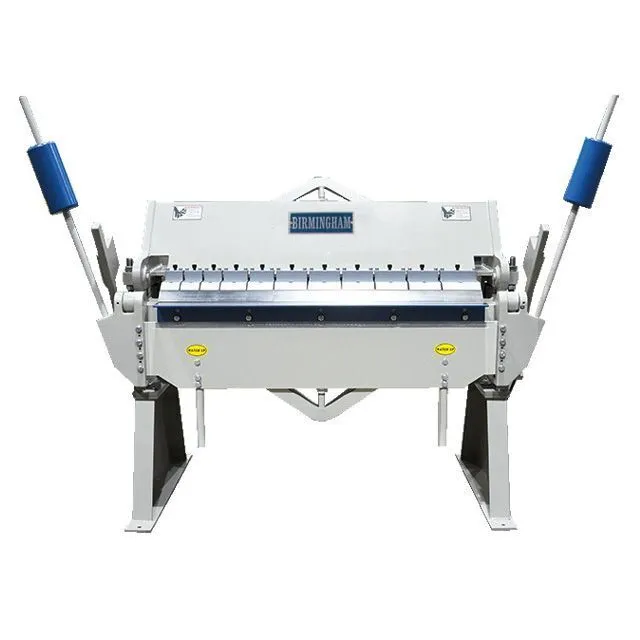

BIRMINGHAM V-612-6 6 ft x 12 ga. Manual Box and Pan Brakes

BIRMINGHAM V-612-6 6 ft x 12 ga. Manual Box and Pan Brakes

Have one to sell?
386-304-3720
dan@sierravictor.com
Have one to sell?

Overview

Type:
Box and Pan Brakes
Manufacturer:
BIRMINGHAM
Model:
V-612-6
Stock #:
V-612-6
Status:
For Sale

Description

Floor Type
Made in Taiwan

Capacity (ga) Mild Steel12 gauge12 gauge
Capacity (ga) Stainless Steel16 gauge16 gauge
Bending Length (inches)72"1,828.8 mm
Bending Length (feet)6'1,828.8 mm
Bending Angle0-135°0-135°
Beam Adjustment, Front and Back1"25.4 mm
Minimum Reverse Bend0.3125"7.9375 mm
Machining Length97"2,463.8 mm
Machine Width34"863.6 mm
Machine Height44"1,117.6 mm
Net Weight2,800 lb1,270.1 kg
Dimensions97 x 34 x 44 in.97 x 34 x 44 in.
Weight2800 lbs.2800 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
24" manual back gauge with slide and lock for all manual brakes
32" single axis NC programmable power brake gauge with Germany ELGO# P8511
