<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Capacity
</div>
</td>
<td class="TableText">
<div align="center">22" W x 16" H
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Blade
</div>
</td>
<td class="TableText">
<div align="center">16’0" x 1.25" x .042"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Operation
</div>
</td>
<td class="TableText">
<div align="center">Semi Automatic
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">7.5 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Electrical Motor Requirement
</div>
</td>
<td class="TableText" width="257">
<div align="center">220V/440V/3PH
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power Source
</div>
</td>
<td class="TableText">
<div align="center">Air
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Minimum Air Requirement <br>
(Equipped w/ Air Filter/Lubricator)
</div>
</td>
<td class="TableText">
<div align="center">85 PSI, 4-6 CFM
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Bundle Cut
</div>
</td>
<td class="TableText">
<div align="center">Yes
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>

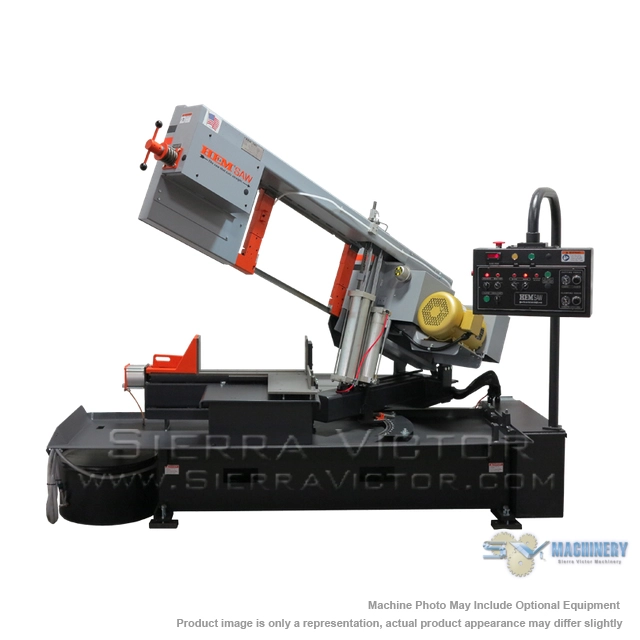

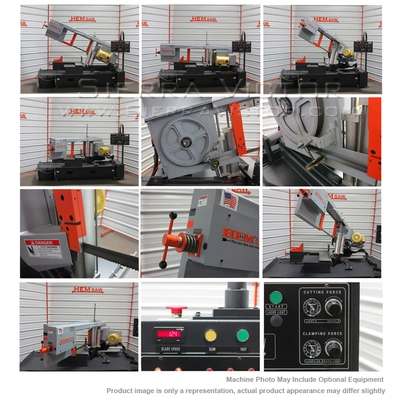

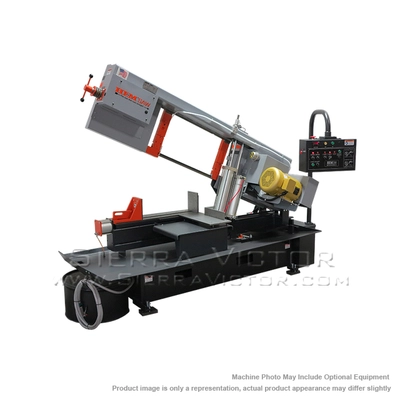

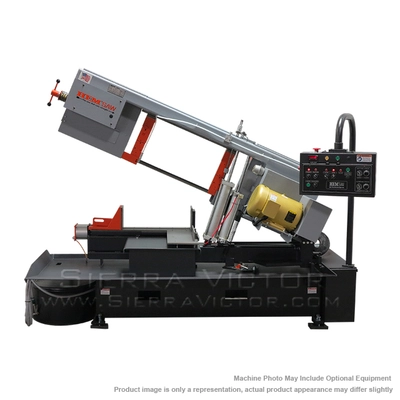

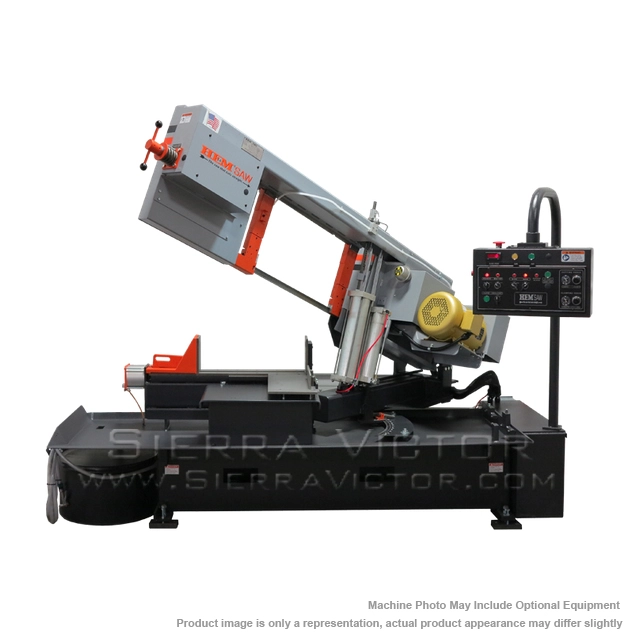

The Cyclone M miters to 60ᵒ one direction, is ideal for cutting solids and structural shapes with a 1¼” blade and 7½ HP motor. The control console, mounted on a swing arm, allows semi-automatic sawing and adjustment of Cutting Force, Adjustable Clamping Pressure, and push button Blade Speed.
</li>
</ul>
<p>STANDARD EQUIPMENT:
</p>
<ul>
<li>Easy View Console - Semi-Automatic Control</li>
<li>18" Discharge Support</li>
<li>Vise - Adjustable Main</li>
<li>Adjustable Clamping Force</li>
<li>Hold Down Fixture</li>
<li>Guide Arm - Manual Adjustment</li>
<li>Variable Blade Speed w/ LED Readout</li>
<li>Carbide Blade Guides</li>
<li>Manual Blade Tension</li>
<li>Adjustable Feed Rate</li>
<li>Adjustable Cutting Pressure</li>
<li>Coolant System - Flood w/ Wash-Down Hose</li>
<li>Blade Brush</li>
<li>Broken Blade Function</li>
<li>Safety Guards</li>
<li>220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine</li>
<li>85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>Top Clamp - Reduced Capacity Main Vise</li>
<li>24" Roller Load Table</li>
<li>Full Width Discharge Plate</li>
<li>Laser Light System</li>
<li>Air Powered Blade Tension</li>
<li>Light Clamping Pressure</li>
<li>Spray Mist Lubrication</li>
<li>5' Idle Roller Stock Table</li>
<li>10' Idle Roller Stock Table</li>
<li>Single-Phase Voltage</li>
</ul>
