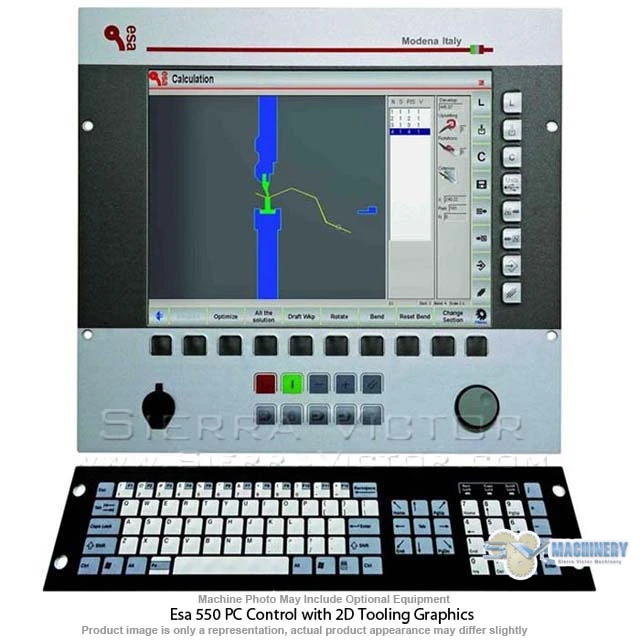

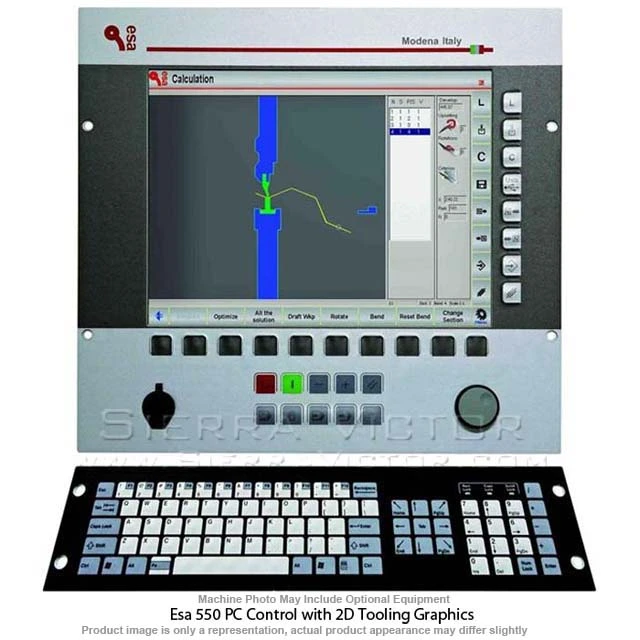

<p>STANDARD INDUSTRIAL ESA 550 PC Control with Tooling Graphics</p><ul><li><span id="spanItemNumber3" name="spanItemNumber"><strong>Esa 550 PC Control with 2D Tooling Graphics:</strong></span></li><li>The next stage in the Esa family of controls is the very impressive full 2D graphical 550PC. With all the features of the 530 control plus much more</li><li>Fully 2D Graphical control with graphical work-pieces and tooling </li><li>2D identification of best bending sequences </li><li>2D identification of collision detection, Dutch folding & calendaring command + Multi-station tools graphic management </li><li>2D graphical Offline software for desktop programming + unlimited job storage via (2) USB ports and (2) RS232 ports + Ethernet </li><li>15” TFT color screen on a pendant mount </li><li>Programmable tonnage included </li><li>X, Y, R, Z1-Z2 and X-Prime programmability </li><li>Controls CNC crowning units (sold separately) w/correction in degrees </li><li>Embedded Windows XP operating system </li><li>20 gigabytes hard drive memory for virtually unlimited jobs and tooling storage </li><li>Readily accepts most tooling files </li><li>Laser system and CNC Sheet follower compatible </li><li>Programmable delay and retract at pinch point </li><li>Inch/mm conversion </li><li><span id="spanItemNumber2" name="spanItemNumber"><strong>Esa 550 PC Esabend Control with 3D Tooling Graphics:</strong></span></li><li>with Touchscreen and DXF File Transfer </li><li> The state of the art 550PC w/the Esabend 3D system is a step above and beyond the 2D control. Including full 3D graphics with touchscreen & keyboard control as well as DXF file transfer</li><li>Fully 3D & 2D Graphical control w/graphical work-pieces & tooling </li><li>Touchscreen control as well as full PC keyboard interface </li><li>3D and 2D identification of best bending sequences </li><li>3D and 2D identification of collision detection, Dutch folding & calendaring command + Multi-station tools graphic management </li><li>3D and 2D graphical Offline software for desktop programming + unlimited job storage via (2) USB ports and (2) RS232 ports + Ethernet networking </li><li>15” TFT color touchscreen on a pendant mount </li><li>Programmable tonnage included </li><li>X, Y, R, Z1-Z2, X-Prime, R1-R2 and X1-X2 programmability </li><li>Controls CNC crowning units (sold separately) w/correction in Degrees plus lasers and CNC sheet followers </li><li>Windows XP Pro operating system </li><li>20 gigabytes hard drive memory for virtually unlimited jobs and tooling storage </li><li>Readily accepts most tooling files including DXF File Transfer </li></ul><div>ITEM: ESA 550 PC Control with Tooling Graphics</div><div>MANUFACTURER: STANDARD INDUSTRIAL<br>MODEL: ESA</div><div>PART# ESA 550</div><div><a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: STANDARD INDUSTRIAL ESA 550: 2D / 3D%0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br> CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY</span></a></div>
