<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody>
<tr bgcolor="#333333" class="Title_white">
<td class="TableText"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center" class="Title_white_bold"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td width="327" class="TableText">
<div align="center" class="Title_white_bold"><strong><span style="color: rgb(255, 255, 255);">Description</span></strong>
</div>
</td>
<td width="91" class="TableText">
<div align="center" class="Title_white_bold"><span style="color: rgb(255, 255, 255);"><strong>Weight (lbs.)</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="94" class="optional_accessories">
<div align="center">AO5C
</div>
</td>
<td class="TableText">
<div align="center">Air - Operated 5C Collet Holder<br>
Dimensions: 3-1/2" high, 4-3/4" dia, <br>
2-1/2" base to center line.<br>
Grip Force: 1000# at 100psi
</div>
</td>
<td class="TableText">
<div align="center">8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="optional_accessories">
<div align="center">AR-62
</div>
</td>
<td class="TableText">
<div align="center">Foot - Operated Valve
</div>
</td>
<td class="TableText">
<div align="center">6
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="optional_accessories">
<div align="center">125 V
</div>
</td>
<td class="TableText">
<div align="center">3 - Way Lever Type Valve
</div>
</td>
<td class="TableText">
<div align="center">1
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

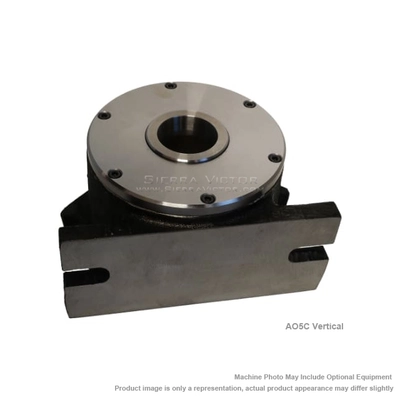

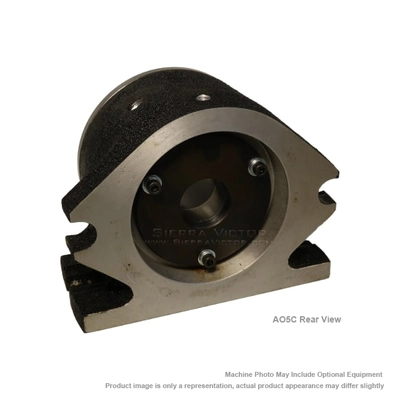

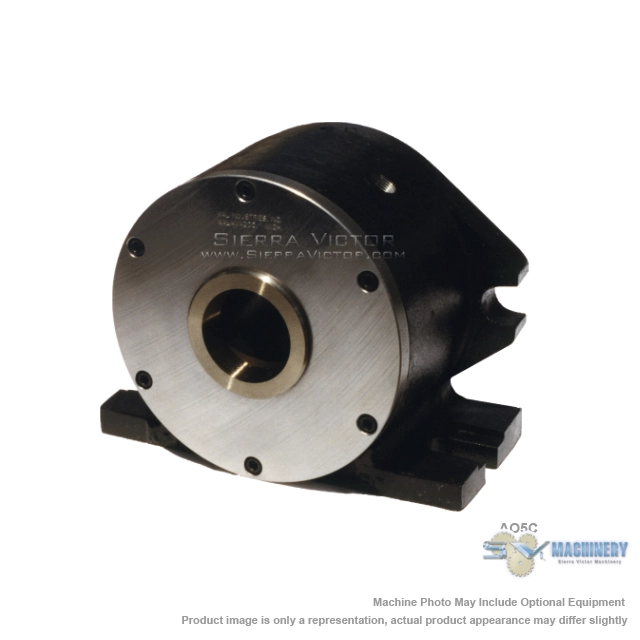

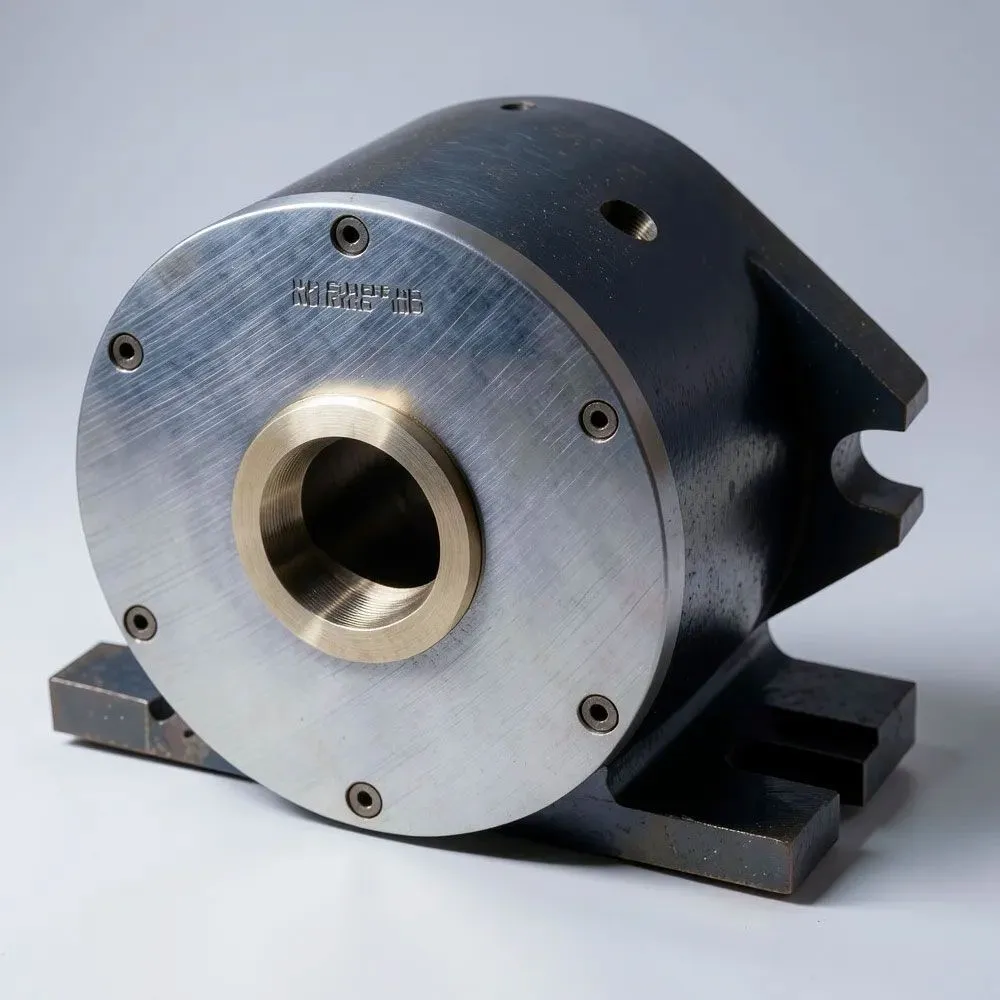

<li> A05C air-operated 5C collet fixture is a dual position fixture is designed for short run operations. Shop air is required to operate fixture. </li>
<li> The benefits of the Kalamazoo Industries AA05C air-operated 5C collet fixture is it’s dead length, through hole and all parts are replaceable regardless the age of the unit. </li>
<li> The Kalamazoo Industries A05C air-operated 5C collet fixture is manufactured with steel and aluminum. You can mount this fixture of vertical/horizontal mills, drill presses and machining centers. </li>
<li> Great for all size machine shops.</li>
<li>Versatile, Accurate!</li>
<li>Hardened Ground Spindle</li>
<li>Collets Held Dead Length! 0-100 PSI shop air reqd.</li>
<li>Two Position vertical or horizontal</li>
<li>For Drill Presses, Milling Machines, Grinders</li>
<li><strong>Model: AO5C</strong></li>
<li>Shipping weight: 8 lbs.</li>
<li>Made in USA!</li>
</ul>
<p><strong>OPTIONAL ITEMS - CALL FOR PRICE:</strong></p>
<ul>
<li>AR-62: Foot - Operated Valve</li>
<li>125V: 3 - Way Lever Type Valve</li>
</ul>
