<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td class="TableText">
<div class="Title_white_bold"><strong><span style="color: rgb(255, 255, 255);">MODEL</span></strong>
</div>
</td>
<td class="TableText" width="383">
<div class="Title_white_bold"><strong class="Title_white_bold"><span style="color: rgb(255, 255, 255);">Description</span></strong>
</div>
</td>
<td class="TableText" width="64">
<div class="Title_white_bold"><span style="color: rgb(255, 255, 255);"><strong>Weight</strong></span>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" width="65" bgcolor="#cccccc">
<div>5C
</div>
</td>
<td class="TableText">
<div>Index Fixture with 24 Space Ring and Draw Bar
</div>
</td>
<td class="TableText">
<div class="TableText">15 lbs.
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div>AT
</div>
</td>
<td class="TableText">
<div>Standard Tailstock
</div>
</td>
<td class="TableText">
<div>10 lbs.
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div>AR-0
</div>
</td>
<td class="TableText">
<div>Index Ring, Blank
</div>
</td>
<td class="TableText" rowspan="4">
<div>0.25 lbs.
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div>AR-20
</div>
</td>
<td class="TableText">
<div>Index Ring, 20 Space
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div>AR-24
</div>
</td>
<td class="TableText">
<div>24 NOTCH INDEX RING
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div>AR-36
</div>
</td>
<td class="TableText">
<div>Index Ring, 36 Space
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div>AS
</div>
</td>
<td class="TableText">
<div>Stub Arbor 1"-10 Thread
</div>
</td>
<td class="TableText" rowspan="2">
<div>1 lbs.
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div>LC
</div>
</td>
<td class="TableText">
<div>Lever Collet Closer
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

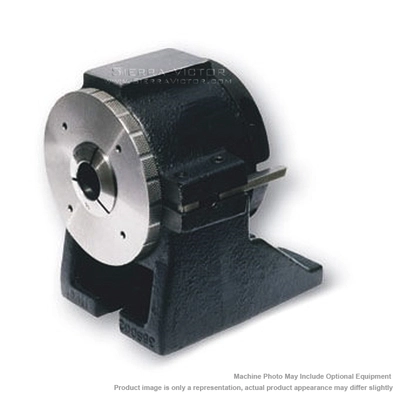

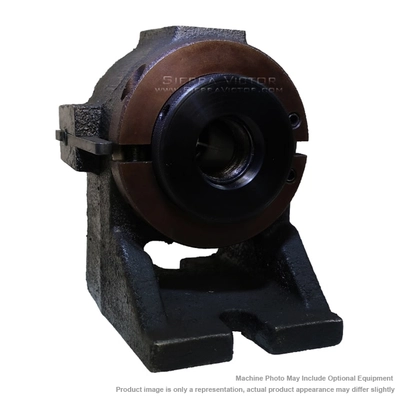

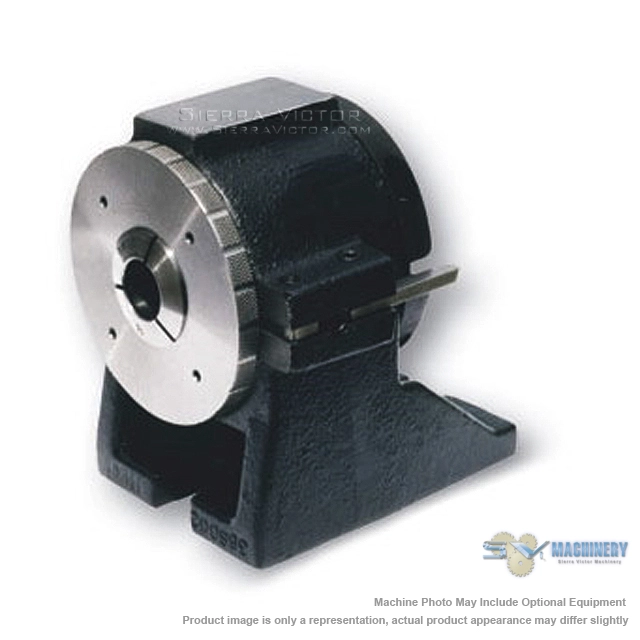

<li> Kalamazoo Industries 5C collet indexing fixture is designed to be indexed at various degrees. The 5C collet fixture can be used in various drilling, milling and grinding applications. </li>
<li> Kalamazoo Industries 5C collet indexing fixture comes standard with a cast iron body, index plate that can be changed easily, easy to index, come standard with 24 notch index ring, precision ground spindle, and a base that’s slotted so it can be mounded to any top. </li>
<li>Index fixture with 24 space ring and draw nut.(index rings 0-36 spaces available)</li>
<li>For drilling, milling, grinding and locating angles.</li>
<li>Index ring easily changed by pulling spindle out and sliding new ring on.</li>
<li>Use in vertical position with angle plate.</li>
<li>Precision ground spindle.</li>
<li>Rugged, Plate can be bolted to top for drill bushing.</li>
<li>Quality built in Kalamazoo, MI</li>
<li><strong>Model: #5C complete with 24 space index ring and draw nut.</strong> </li>
<li>Made in USA!</li>
<li>Cast iron body</li>
<li><strong>WHERE THIS 5C INDEXING FIXTURE CAN BE USED:</strong>
<ul>
<li>5C industrial collet indexing fixture can be used on any drill press, mill and surface grinder. </li>
</ul>
</li>
</ul>
<p><strong>OPTIONAL ITEMS - CALL FOR PRICE:</strong></p>
<ul>
<li>AT standard tailstock # AT</li>
<li>AS stub arbor w/ 1" -10 thd. #AS</li>
<li>AR-20 20 space index ring</li>
<li>AR-36 36 space index ring</li>
<li>LC Lever collet closer. # LC (see product index)</li>
</ul>
