<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td class="TableText">
<div class="Title_white_bold"><strong><span style="color: rgb(255, 255, 255);">MODEL</span></strong>
</div>
</td>
<td class="TableText" width="196">
<div class="Title_white_bold"><strong class="Title_white_bold"><span style="color: rgb(255, 255, 255);">Description</span></strong>
</div>
</td>
<td class="TableText" width="87">
<div class="Title_white_bold"><strong><span style="color: rgb(255, 255, 255);">Dimensions</span></strong>
</div>
</td>
<td class="TableText" width="81">
<div class="Title_white_bold"><span style="color: rgb(255, 255, 255);"><strong>Weight (lbs.)</strong></span>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" width="73" bgcolor="#cccccc">
<div>1CC
</div>
</td>
<td class="TableText">
<div>Collet Chuck
</div>
</td>
<td class="TableText">
<div>3" W x 3-1/2" L
</div>
</td>
<td class="TableText">
<div>6
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div>AT1CC
</div>
</td>
<td class="TableText">
<div>FIXTURE MOUNTING PLATE ONLY
</div>
</td>
<td class="TableText" colspan="2">
<div>—
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

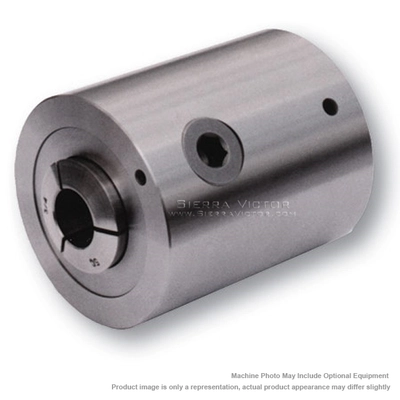

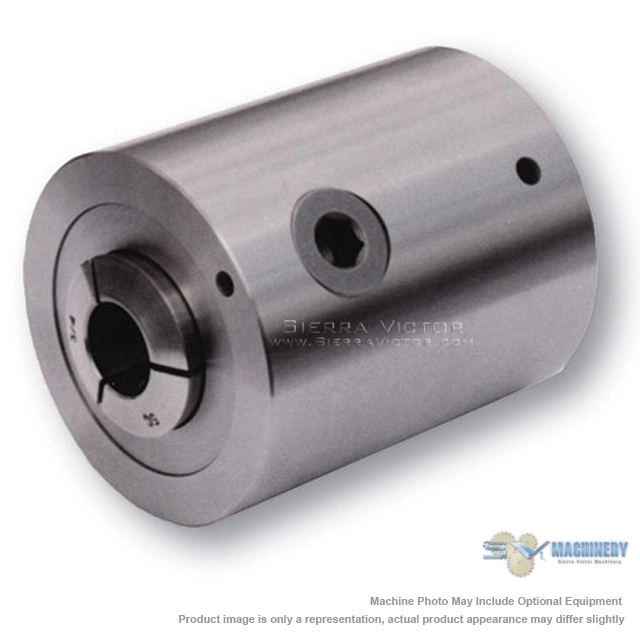

<li>1CC 5C collet fixture (less collets) is designed for short runs using a 5C collet, chuck this collet holder and you’re ready to go. You need to do is chuck the holder and lock it using an Allen wrench.</li>
<li>1CC 5C industrial collet chuck fixture (less collets) is designed for short runs using a 5C collet, chuck this collet holder and you’re ready to go! </li>
<li>Lock, 1/2" turn and release at the front</li>
<li>Heavy-duty</li>
<li> All-steel construction</li>
<li> Hardened and ground</li>
<li>Time-saving</li>

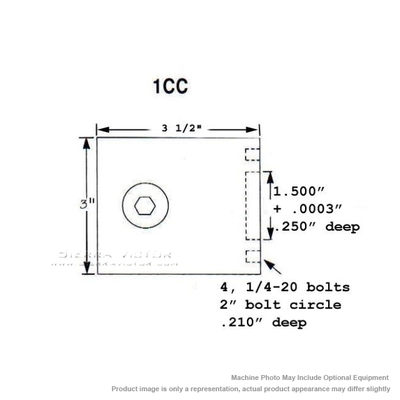

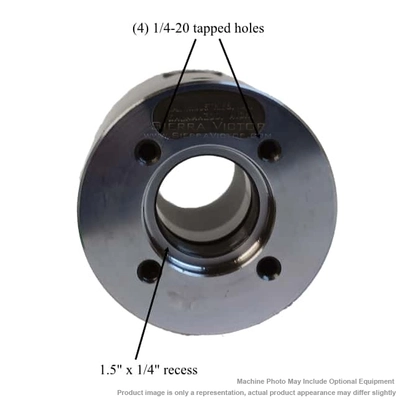

<li>Drilled and tapped holes at rear of collet chuck for mounting to a plate or At1CC. </li>

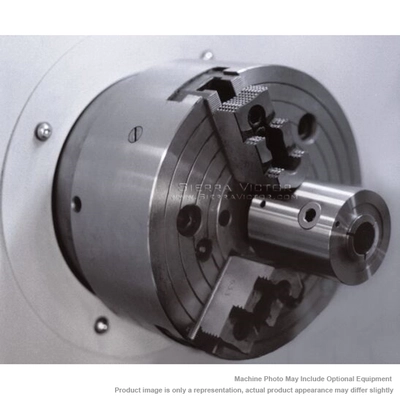

<li>Mount in: 4th axis/vertical/horizontal mills and or machining centers.</li>
<li>Made in USA!</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>AT1CC: FIXTURE MOUNTING PLATE ONLY: $135.00</li>
</ul>
