<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td class="TableText">
<div align="center" class="Title_white_bold"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td width="268" class="TableText">
<div align="center" class="Title_white_bold"><strong><span style="color: rgb(255, 255, 255);">Dimensions</span></strong>
</div>
</td>
<td width="132" class="TableText">
<div align="center" class="Title_white_bold"><span style="color: rgb(255, 255, 255);"><strong>Weight (lbs.)</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="112" class="optional_accessories">
<div align="center">10C
</div>
</td>
<td class="TableText">

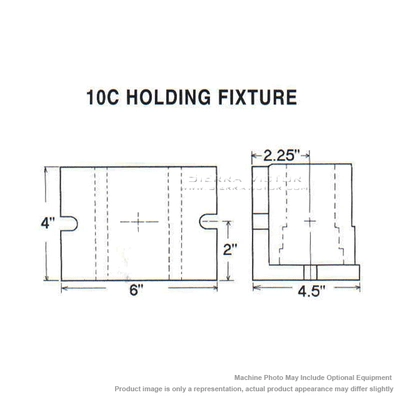

<div align="center"> L 8 x W 5 x H 8 in.
</div>
</td>
<td class="TableText">
<div align="center">15
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p>WARRANTY: 1 YEAR – Parts
</p>
<ul>

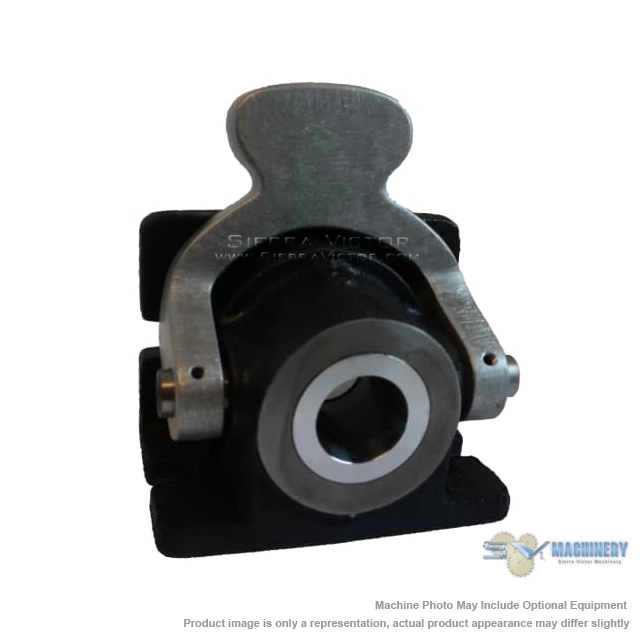

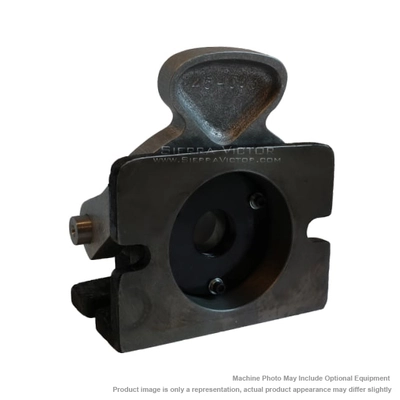

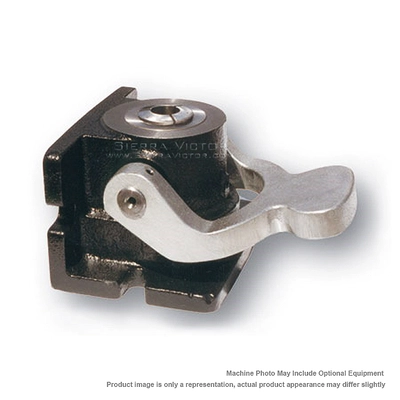

<li>10C 5C heavy duty two position collet fixture is an industrial 5C collet fixture that can be placed in a vertical or horizontal position. Has a cast iron body, cast aluminum handle and steel spindle.</li>
<li>10C 5C heavy duty two position collet fixture is an industrial fixture that can be placed in a vertical or horizontal position. There are faces that are machined to the fixture will sit flat. TIR of this fixture is zero but the operator will have to make sure whatever surface that this fixture is mounted on is flat.</li>
<li>The 10C 5C two position industrial collet fixture body is cast iron and the locking handle is cast aluminum and the spindle is steel that is heat treated and machined. </li>
<li>5C Collet Holding Fixture, Vertical or Horizontal, cast iron body.</li>
<li>Collets held dead length no lateral part movement. Lever Close.</li>
<li>Hardened ground thru hole spindle.</li>
<li>Made in USA!</li>
</ul>
