<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Approx. Pressure (Tons)
</div>
</td>
<td class="TableText1">
<div align="center">Depends on Plasma System Chosen
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="230" class="TableText1">
<div align="center">Drive
</div>
</td>
<td width="284" class="TableText1">
<div align="center">Stepper Motor
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Input Power
</div>
</td>
<td class="TableText1">
<div align="center">220V / 1-phase
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Table Dimensions (In.)
</div>
</td>
<td class="TableText1">
<div align="center">67 x 64 in.(1702 x 1626mm)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Table Height (In.)
</div>
</td>
<td class="TableText1">
<div align="center">19.6 in. (500mm)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Z-Axis Travel (In.)
</div>
</td>
<td class="TableText1">
<div align="center">3.4 in. (86mm)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Software
</div>
</td>
<td class="TableText1">
<div align="center">BobCAD-Cam Express software included
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Shipping Dimensions LxWxH
</div>
</td>
<td class="TableText1">
<div align="center">90.5 x 90.5 x 52 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="230" class="TableText1">
<div align="center">Shipping Weight
</div>
</td>
<td width="284" class="TableText1">
<div align="center">2,293 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Gross Weight
</div>
</td>
<td class="TableText1">
<div align="center">2,450 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Prop 65
</div>
</td>
<td class="TableText1">
<div align="center">Cancer and Reproductive Harm
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

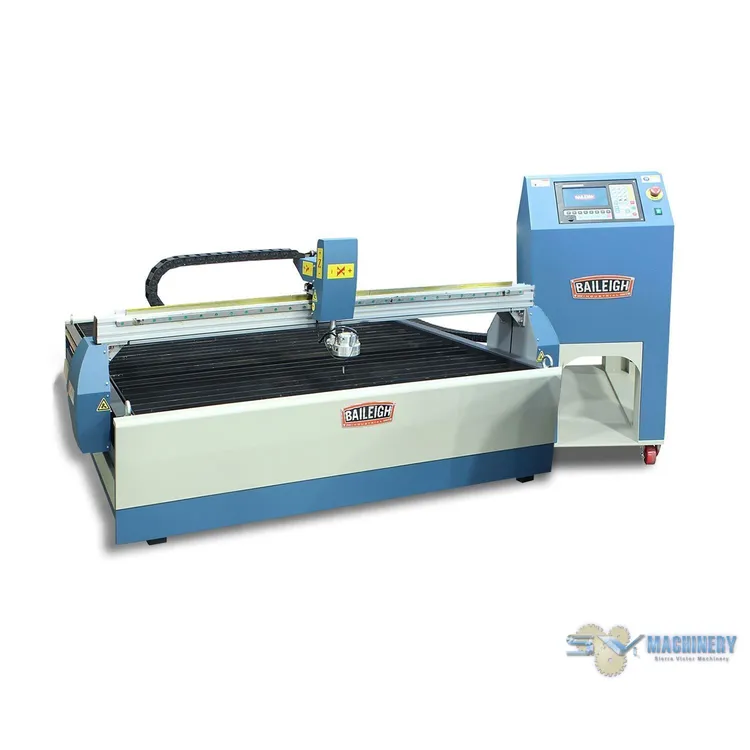

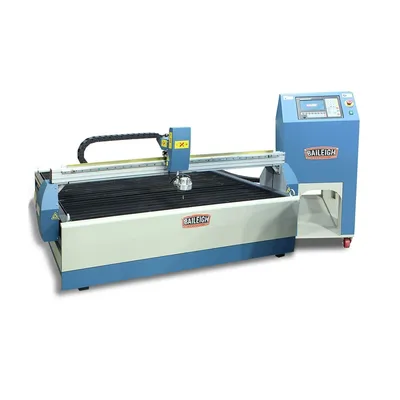

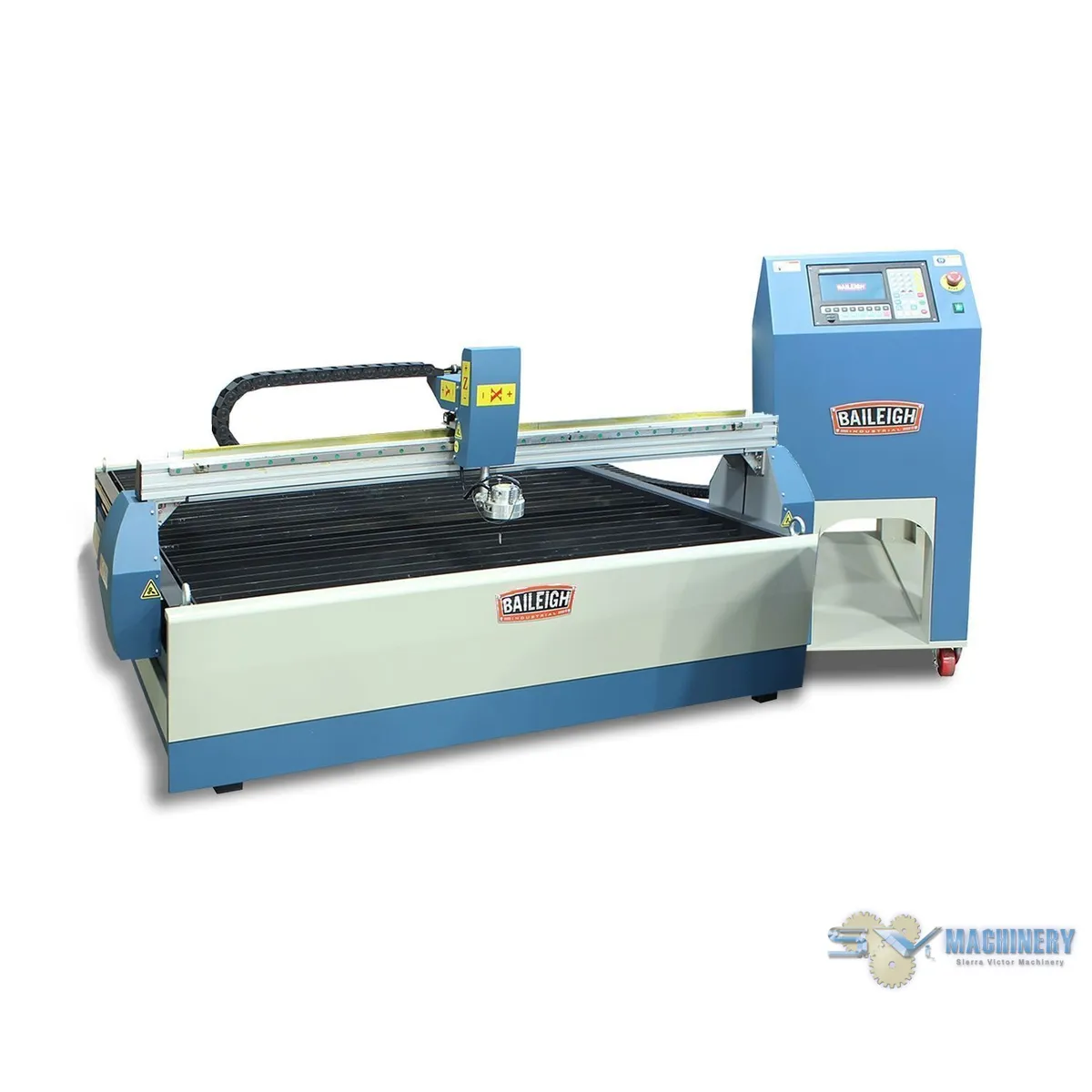

<li>With variable height control, the PT-44AH-W makes perfect cuts in uneven material. This CNC plasma table comes assembled with a heavy steel frame and includes design software.<br>
</li>
<li>To get started just:<br>
<ul>
<li>Uncrate the machine.<br>
</li>
<li>Add a plasma system, power, and a clean, dry air supply.<br>
</li>
<li>Fill tank with water.</li>
</ul>
</li>
<li>Industrial plasma cutter Covered by a 1-year parts warranty.</li>
<li>We keep most replacement parts in stock for quick shipping.</li>
<li>You can depend on lifetime technical support by phone from our team of knowledgeable reps.</li>
<li>Plasma torch systems sold separately. We’ll let you choose the Thermal Dynamics Cutmaster model that works best for your application. This CNC plasma cutting machine is compatible with automatic torches, but not manual ones.</li>
<li>BobCAD-Cam Express Design Software (Included)</li>
<li>The PT-44AH-W comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive. To learn more or download a free trial, click the BobCAD-Cam logo above.</li>
<li>Runs on 220-volt single-phase power with a 59" x 59" working area</li>

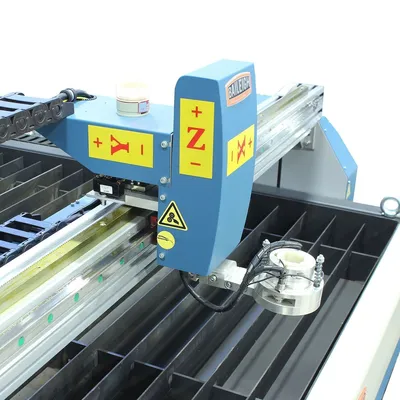

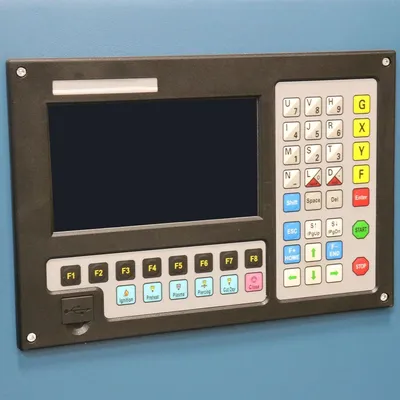

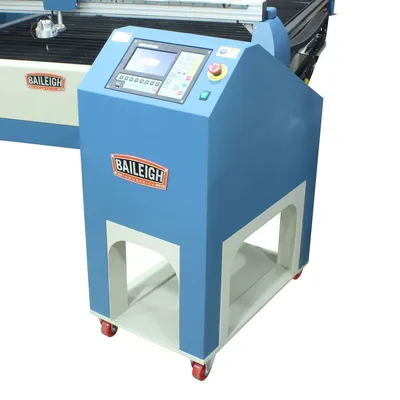

<li>You can control the X, Y, and Z axes using the integrated panel on the podium</li>
<li>Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables</li>

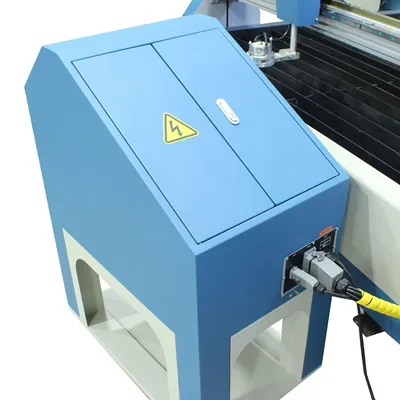

<li>Operator’s podium provides space for plasma power unit even while cutting</li>

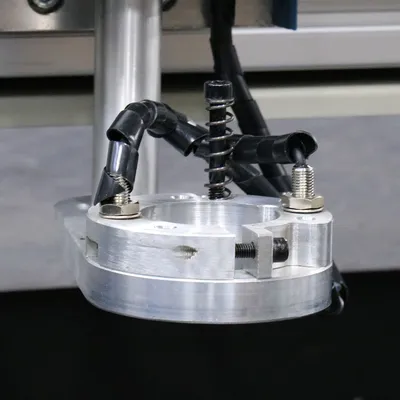

<li>If the material is uneven or puckers under the heat of the torch, the variable height control will rise or lower in real time while cutting</li>
<li>X, Y, and Z axes are controlled by quality stepper motors, allowing for fast and fluid movement</li>
<li>Fully enclosed wires and electronics prevent snags and tangles</li>

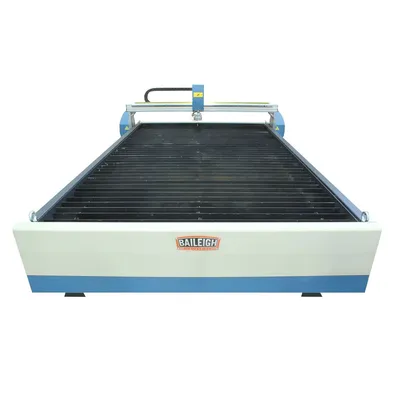

<li>Made of heavy-gauge boxed steel, this CNC plasma cutting machine can easily support large, thick industrial-sized sheets of metal</li>

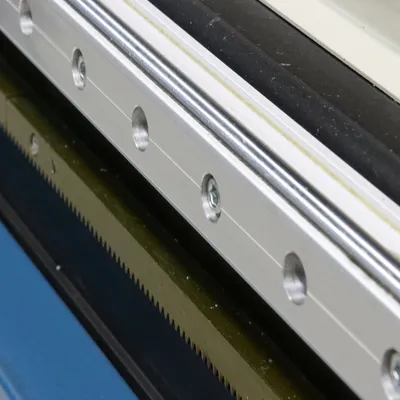

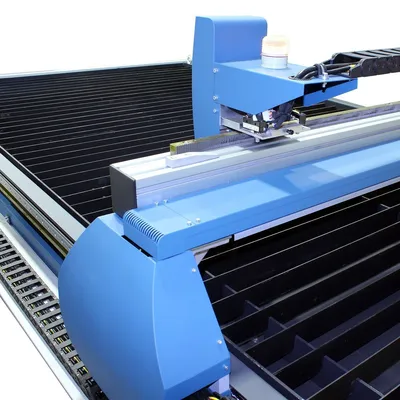

<li>Ground, hardened, and polished square rails combined with linear orbital bearings add impressive strength to the machine</li>

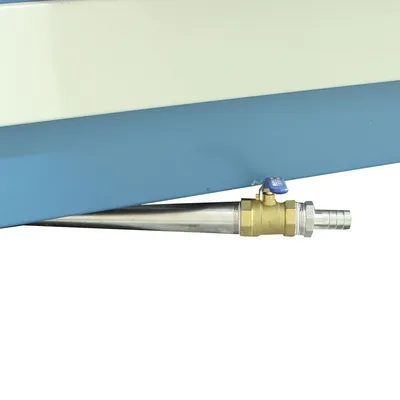

<li>Integrated water table helps control smoke and dust created while cutting to help keep your shop clean</li>
</ul>
