<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc">
<div>Table Size (in.)
</div>
</td>
<td width="257">
<div>9 x 49
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Spindle Taper
</div>
</td>
<td>
<div>R-8
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Quill Diameter (in.)
</div>
</td>
<td>
<div>3-3/8
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Number of Spindle speeds
</div>
</td>
<td>
<div>Variable
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Range of Spindle Speeds (RPM)
</div>
</td>
<td>
<div>60 - 4,500
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Quill Down feed Rates (IPR)
</div>
</td>
<td>
<div>.0015–.003–.006
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Quill Travel (in.)
</div>
</td>
<td>
<div>5
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Head Movement (deg.)
</div>
</td>
<td>
<div>90°R & L 45° F & B
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Max Distance Spindle to Table ( in.)
</div>
</td>
<td>
<div>20-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Distance Spindle to Column (max./in.)
</div>
</td>
<td>
<div>18-1/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Distance Spindle to Column (min./in.)
</div>
</td>
<td>
<div>4-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Collet Capacity (in.)
</div>
</td>
<td>
<div>1/8 - 7/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Table Longitudinal Travel (range/in.)
</div>
</td>
<td>
<div>30-3/4 - 36
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Table Cross Travel (in.)
</div>
</td>
<td>
<div>12-5/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>T-Slots Number and Size (in.)
</div>
</td>
<td>
<div>3 and 5/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>T-Slot Centers (in.)
</div>
</td>
<td>
<div>2-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Work Table Weight Capacity (lbs.)
</div>
</td>
<td>
<div>720
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Travel of Knee (in.)
</div>
</td>
<td>
<div>15-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Travel of Ram (in.)
</div>
</td>
<td>
<div>15-1/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Saddle Width (in.)
</div>
</td>
<td>
<div>18
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Column Width (in.)
</div>
</td>
<td>
<div>11-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Inverter Type
</div>
</td>
<td>
<div>Delta, B
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor
</div>
</td>
<td>
<div>3HP, 230V, 3Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Overall Dim. (in.)
</div>
</td>
<td>
<div>—
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Net Weight (lb.)
</div>
</td>
<td>
<div>2,420
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>

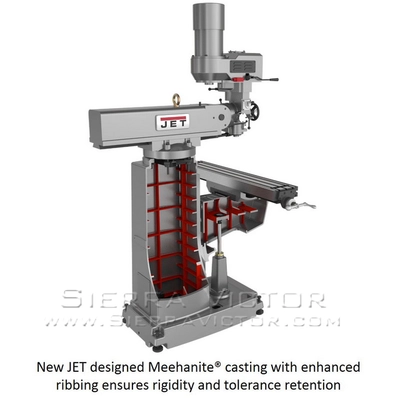

<li>JET designed Certified Meehanite casting with enhanced ribbing ensures rigidity and tolerance retention</li>
<li>Swing away control box houses an e-stop and puts all controls at the operators fingertips</li>

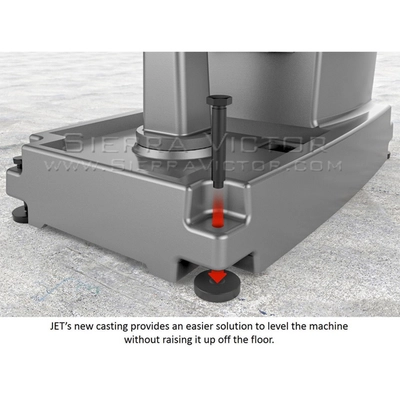

<li>The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor</li>
<li>Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes</li>
<li>For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups</li>
<li>The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories</li>
<li>CSA/CUS Certified</li>
<li>Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications</li>
<li>Spindle head is internally cooled extending bearing, belt and motor life</li>
<li>Table and ways are hardened up to 54 HRC and precision ground for greater accuracy</li>
<li>The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements</li>
</ul>
<p><strong>EQUIPPED WITH:</strong>
</p>
<ul>
<li>Swing away safety shield</li>
<li>LED work lamp</li>
<li>Chip pan</li>
<li>Dual locks on all moveable surfaces</li>
<li>Way covers</li>
<li>Drawbar</li>
<li>Tool box with tools</li>
</ul>
