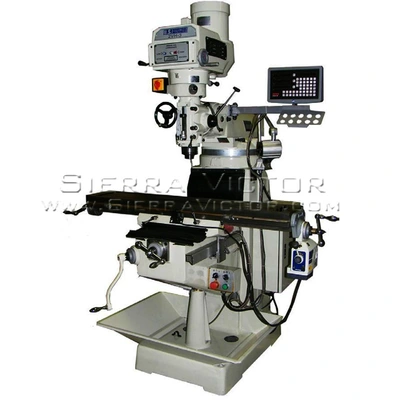

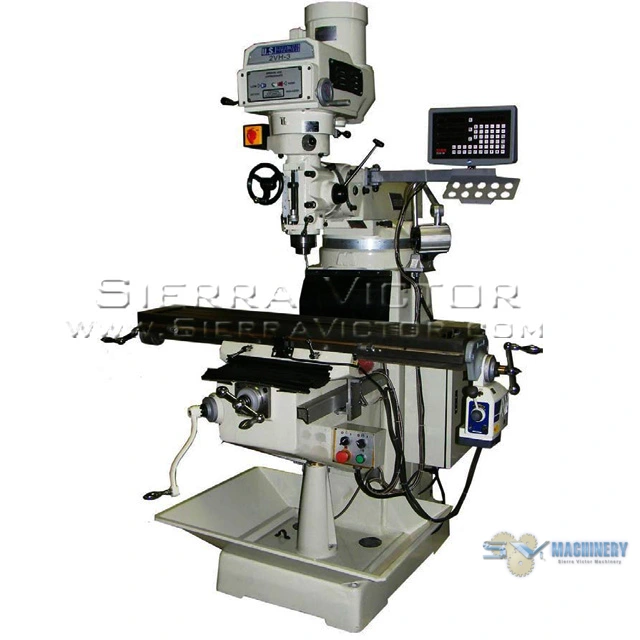

<p>U.S. INDUSTRIAL 9" x 49" Manual Variable Speed Milling Machine Package 2VH-3-KIT</p><ul><li><strong>KIT PACKAGE ONLY:</strong></li><li>9” x 49” table with 3 T-slots, 5/8”, on 2.5” centers, Table travel is 33”. Leadscrew pitch is 5 TPI with dials on each end graduated in .001”.</li><li>Travel of crossfeed is 12” with .001” dial graduations</li><li>Knee travel is 15.74” with 10TPI leadscrew, .001” dial graduations</li><li>Ram allows for over 12” of travel, for variable throat depth</li><li>Conventional dovetail ways on X,Y, and Z Axis - Double locks on all axis</li><li>Aged stressed castings, stress relieved for long life and accuracy, Meehanite type</li><li>Power quill feed allows for 0.0018, 0.003, 0.006 Inches of feed per revolution of spindle</li><li>Hardened and ground and precisely scraped work table, saddle and knee ways</li><li>Centralized one-shot lubrication pump lubricates all way surfaces and leadscrews</li><li>Backlash adjustment for leadscrews, Gib adjustments for ways</li><li>Electrical cabinet with internal transformer for 110V and 24V devices, circuit breaker protected, Low Voltage controls, 24 volt halogen machine light. Transformer also includes power supply for digital readout and power table feed.</li><li>Operator low voltage controls for coolant pump, machine light, main power with emergency stop button. Spindle off/forward/reverse switch</li><li>Built in coolant tank base with coolant pump, pressure and return hose , nozzle and valve, Installed and ready to use. Base chip pan to help prevent coolant overflow.</li><li>Manual variable speed spindle drive, 3 Horsepower runs the spindle from 60 to 4200 RPM. Spindle speed dial on head shows RPM in direct drive and back gear. Spindle motor is finned for cooling.</li><li>Sino three axis digital readout has 0.0002” resolution. Readout comes mounted to knee, table and cross and is ready to use. The readout is inch/metric switchable, with absolute incremental function. There is a calculator function, bolt hole pattern function, line pattern function, and arc calculate function. A comprehensive manual is included.</li><li>Power table feed is Align model AL500SP. Infinitely variable feed from .8 to 32 IPM with rapid button, on/off switch, and adjustable travel stops. This heavy duty power feed has 150 inch pounds of torque, with max to 650. Power table feed comes installed on machine, ready to use.</li><li>Toolbox and tools, manuals, electrical drawing, test certificate all included</li></ul><p><strong>STANDARD EQUIPMENT:</strong></p><ul><li><strong>PART#</strong> <strong>AL500SP</strong>: Heavy duty power table feed on X axis</li><li><strong>PART#</strong> <strong>FCKIT</strong>: Flood coolant pump, hose, nozzle</li><li><strong>PART#</strong> <strong>CPKIT</strong>: Chip pan</li><li><strong>PART#</strong> <strong>MLKIT</strong>: Machine light</li><li><strong>PART#</strong> <strong>FRWCKIT</strong>: Front and Rear way covers</li><li><strong>PART#</strong> <strong>SINO3AX</strong>: Three axis digital readout</li></ul><div>ITEM: 9" x 49" Manual Variable Speed Milling Machine Package</div><div>MANUFACTURER: U.S. INDUSTRIAL</div><div>MODEL: 2VH-3-KIT</div><div><a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: U.S. INDUSTRIAL 2VH-3-KIT%0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br> CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY</span></a></div>
