<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold">
<td bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>MODEL</strong></span>
</div>
</td>
<td colspan="2" bgcolor="#333333">
<div><strong><span style="color: #ffffff;">JTM-949EVS CNC</span></strong>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div><strong>Part#</strong>
</div>
</td>
<td width="132">
<div class="TableText">
<div><strong>JT9-690575</strong>
</div>
</div>
</td>
<td width="131">
<div class="TableText">
<div><strong>JT9-690576</strong>
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Number CNC Control Axis
</div>
</td>
<td>
<div>2
</div>
</td>
<td>
<div>3
</div>
</td>
</tr>
<tr>
<td width="249" bgcolor="#cccccc">
<div>Table Size (LxW) (In.)
</div>
</td>
<td colspan="2">
<div>9 x 49
</div>
</td>
</tr>
<tr>
<td width="249" bgcolor="#cccccc">
<div>Spindle Taper (In. x TPI)
</div>
</td>
<td colspan="2">
<div>R-8
</div>
</td>
</tr>
<tr>
<td width="249" bgcolor="#cccccc">
<div>Quill Diameter (In.)
</div>
</td>
<td colspan="2">
<div>3-3/8
</div>
</td>
</tr>
<tr>
<td width="249" bgcolor="#cccccc">
<div>Range of Spindle Speeds (RPM)
</div>
</td>
<td colspan="2">
<div>60 - 4,500
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Quill Down Feed Rates (IPR)
</div>
</td>
<td colspan="2">
<div>.0015 / .003 / .006
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Spindle Travel (In.)
</div>
</td>
<td colspan="2">
<div>5
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Max Distance Spindle to Table (In.)
</div>
</td>
<td colspan="2">
<div>20-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Distance Spindle to Column (Max.) (In.)
</div>
</td>
<td colspan="2">
<div>18-1/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Distance Spindle to Column (Min.) (In.)
</div>
</td>
<td colspan="2">
<div>4-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Table Longitudual Travel (In.)
</div>
</td>
<td colspan="2">
<div>36
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Table Cross Travel (In.)
</div>
</td>
<td colspan="2">
<div>12-5/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Travel of Knee (In.)
</div>
</td>
<td colspan="2">
<div>15-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Travel of Ram (In.)
</div>
</td>
<td colspan="2">
<div>15-1/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>T-Slots Number and Size (In.)
</div>
</td>
<td colspan="2">
<div>3 and 5/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>T-Slot Centers (In.)
</div>
</td>
<td colspan="2">
<div>2-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Work Table Weight Capacity (Lbs.)
</div>
</td>
<td colspan="2">
<div>720
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor (HP)
</div>
</td>
<td colspan="2">
<div>3 HP, 230V,3Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Overall Dimensions (L x W x H) (In.)
</div>
</td>
<td colspan="2">
<div>67 x 64 x 86
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Weight (Lbs)
</div>
</td>
<td colspan="2">
<div>2,420
</div>
</td>
</tr>
</tbody>
</table>
<p><br></p><p></p>
<table width="520" cellspacing="0" cellpadding="0" border="0">
<!--DWLayoutTable-->
<tbody>
<tr>
<td class="spacer_text" width="400" valign="middle" height="20" bgcolor="#4c9ae5"><strong>CNC SPECIFICATIONS: ACU-RITE MillPWR G2 2 or 3 Axis Retrofit Package</strong>
</td>
</tr>
</tbody>
</table>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold">
<td bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>DRO MODE</strong></span>
</div>
</td>
<td bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>MILLPWR-G2</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>External Storage
</div>
</td>
<td width="257">
<div>USB/Ethernet (RS-232)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Internal Storage
</div>
</td>
<td>
<div>2.5 GB Flash (User)
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Processor
</div>
</td>
<td>
<div>1GHz Celeron M
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Display
</div>
</td>
<td>
<div>12.1" (1024 x 768)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Windows Off-Line Programing Station
</div>
</td>
<td>
<div>Yes
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Program Preview
</div>
</td>
<td>
<div>Listed & Graphic
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Filename Filter Search
</div>
</td>
<td>
<div>Yes
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>File Manager Navigation
</div>
</td>
<td>
<div>Tree
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Esitmated Machining Time
</div>
</td>
<td>
<div>Yes
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Auto Save (Program)
</div>
</td>
<td>
<div>Yes
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Program Size Limit
</div>
</td>
<td>
<div>9,999 Steps
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>G Code Program
</div>
</td>
<td>
<div>Extended Support Plus <br> G80 Series Drill Cycles
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Block Form Solid Model 3D graphics
</div>
</td>
<td>
<div>with User Override
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Program Step Navigation
</div>
</td>
<td>
<div>Hard Keys & Pop-Up Menu
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Custom Pocket & Islands
</div>
</td>
<td>
<div>Ramp Feed & Optimized Path
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Circle (Pocket, Frame, Ring, Helix)
</div>
</td>
<td>
<div>Ramp Feed
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Tool Library
</div>
</td>
<td>
<div>Specify By Tool Number
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Multiple Datum's (Fixture Offsets)
</div>
</td>
<td>
<div>99
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Graphic View
</div>
</td>
<td>
<div>Line/3D Shaded
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Error Compensation
</div>
</td>
<td>
<div>Linear & Bidirectional Non-Linear
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>

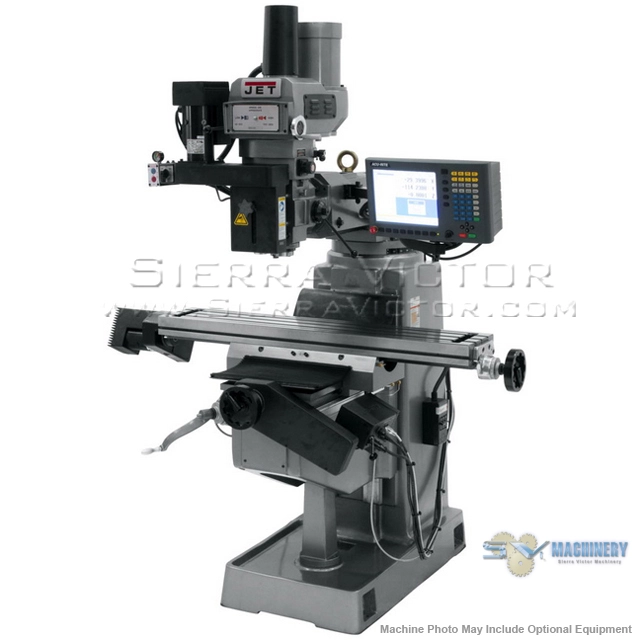

<li>JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty</li>
<li>Durability</li>
<li>Certified Meehanite catings</li>
<li>Class 7 bearings support the spindle for maximum ridgity in heavy cutting applications</li>
<li>Precision bored and honed milling head</li>
<li>Spindle head is internally cooled extending bearing, belt and motor life</li>
<li>Quick spindle feed nut easily adjusts to different depths</li>
<li>One-piece quill pinion and shaft</li>
<li>Three-stage power downfeed with automatic stop</li>
<li>Heavy-duty spindle brake</li>
<li>Precision hardened and ground ways and table</li>
<li>Turcite-B on X and Y-Axis</li>
<li>Adjustable gibs throughout</li>
<li>Safety</li>
<li>For added safety, the JTM-949EVS follows strict guidelines and electrical requirements to be certified by CSA Group</li>
<li>Swing away spindle guard</li>
<li>L.E.D. work lamp</li>
<li>Internal coolant tank built into casting base</li>
<li>Ease of Use</li>
<li>Automatic Lubrication every 30 minutes with a flow of 3-6cc reduces maintenance</li>
<li>Inverter Drive System and emergency stop located on a swing away control arm moves all major funtions within the operators reach</li>
<li>JET exclusive new casting provides an easier solution to leveling the machine without raising it off the floor</li>
<li>Two 115V outlets on electrical box for DRO or Powerfeeds</li>
<li>Dual locks on all moveable surfaces</li>
<li>Chip pan</li>
<li>Way covers</li>
<li>Draw bar</li>
<li>Tool box with tools</li>
</ul>
