<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="114" rowspan="4" bgcolor="#cccccc" class="TableText">
<div align="center">Roll Capacity
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Mild Steel
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">8 ft x 8 ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Stainless Steel
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">8 ft x 12 ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Soft Aluminum
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">8 ft x 1/4 in.
</div>
</td>
</tr>
<tr>
<td width="141" bgcolor="#cccccc" class="TableText">
<div align="center">Min. Thickness
</div>
</td>
<td width="257" nowrap="nowrap" class="TableText">
<div align="center">22 Ga.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Min. Roll Diameter
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">7-1/2 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Rolls Length
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">8 ft 4 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Rolls Diameter
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">6-1/2 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Pre-Bend
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">0.12 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Rolls Speed
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">5 RPM
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Rolls Opening
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center"> 2-1/32 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Oil Tank Capacity
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">245L = 12 Gal
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Main Motor
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center"> 7-1/2 HP, 25A/220V or 15A/440V
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center"> Dimensions (LxWxH)
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">142 x 38 x 58 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Weight
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">8,150 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

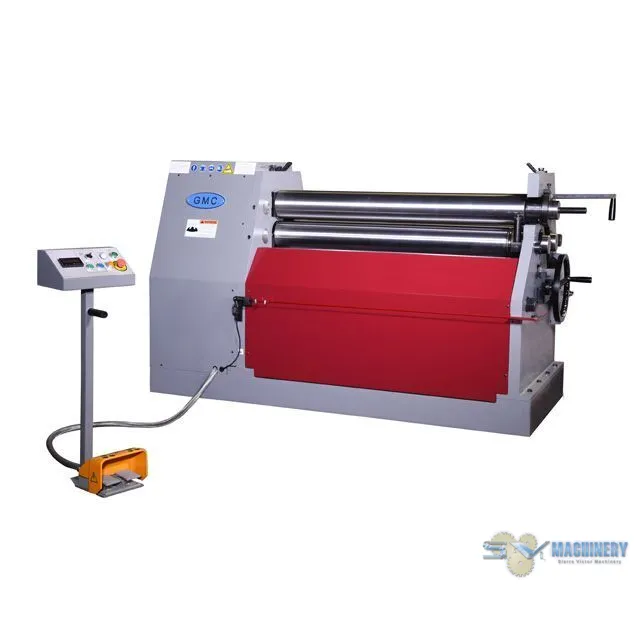

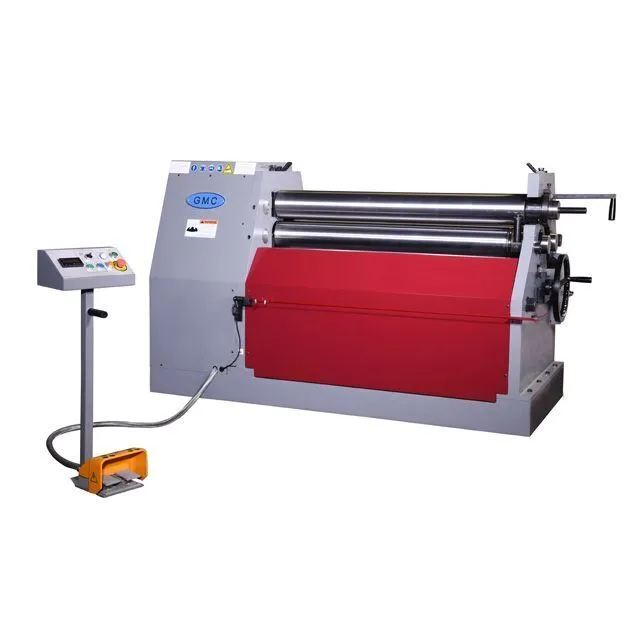

<li>Our HBR-0808, 8 foot plate rolls are made for bending and rolling 8 gauge metal sheets or plates into cones and other cylindrical shapes. All three rolls are hydraulic driven, hardened, and made of high grade alloy steel. Equipped with a cone attachment, LED digital readout, operation pedal controls safety line, and a quiet hydraulic system.</li>
<li>ISO 9001 certified </li>
<li>Taiwan Machines </li>
<li>All three rollers are driven </li>
<li>All three rollers are hardened, up to 50-52 HRC</li>
<li>Easy swing –out top roller</li>
<li>Standard cone attachment installed</li>
<li>1 each LED indicator for bending roll position</li>
<li>Safety line all around the machine for emergency stop</li>
<li>Heavy Duty all steel welded machine construction</li>
<li>German Hydraulic logic system centrally located and quiet </li>
<li>Bending roll is hydraulic powered up/down & tilting adjustment</li>
<li>Planetary reduction gear and pump</li>

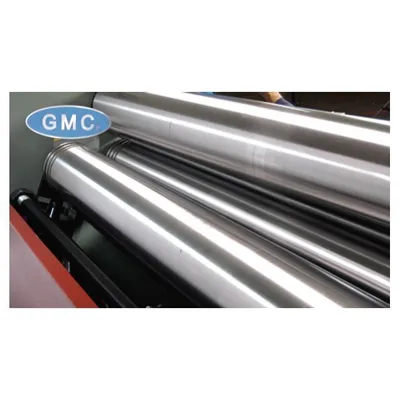

<li>All three rolls are made of high grade alloy steel</li>
<li>All rolls run forward and reverse</li>
<li>Safety type foot pedal control</li>
<li>Overload protection and disconnect switch</li>
<li>Power source 208V/220V, (Option 460V, 3 phase)</li>
<li>One year industrial warranty for parts</li>
<li>*This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.</li>
<li>*Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us </li>
</ul>
<p><strong> STANDARD ITEMS: </strong>
</p>
<ul>
<li>LED indicator for bending roll position</li>
<li>Safety line all around the machine for emergency stop</li>
<li>Removable safety foot pedal and tool box</li>
<li>Cone attachment (to make cone parts)</li>
<li>(3) grooves 3/8", ½", 5/8" on roll for bending wire</li>
</ul>
<p><strong>OPTIONAL ITEMS - CALL FOR PRICE:</strong></p>
<ul>
<li>Safety fence for enclosure of the back side of the machine</li>
</ul>
